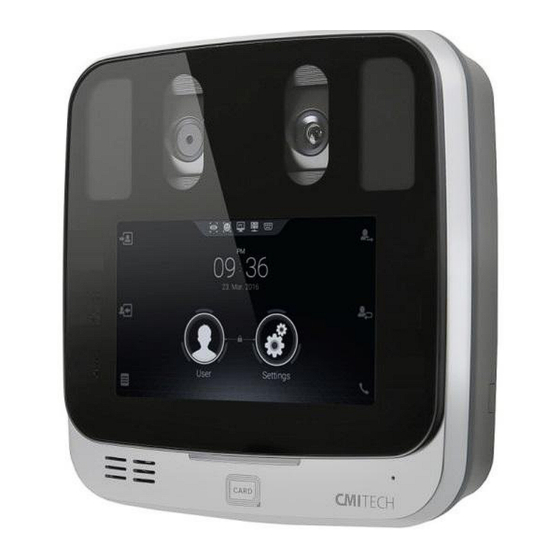

CMITECH EF-45N User Manual

Next generation iris recognition system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Next Generation Iris Recognition System
(Derivative Model : EF-45, UMX-10, UMX-20, UMX-G)
User graphics and screen shots in this guide may vary from actual
Some of the contents in this manual may differ from current operating library release
www.cmi-tech.com
Copyright 2016
, all rights reserved
EF-45N™
User Manual
(v0.1.1, July 1, 2016)
Intuitive face display positioning
Internal automatic motorized tilt cameras
LAN / RS485
Optional face image capture and face recognition
v0.1.1
July 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EF-45N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CMITECH EF-45N

  • Page 1 EF-45N™ Next Generation Iris Recognition System (Derivative Model : EF-45, UMX-10, UMX-20, UMX-G) User Manual (v0.1.1, July 1, 2016) Intuitive face display positioning Internal automatic motorized tilt cameras LAN / RS485 Optional face image capture and face recognition User graphics and screen shots in this guide may vary from actual Some of the contents in this manual may differ from current operating library release www.cmi-tech.com...
  • Page 2 Iris Recognition System And the internal automatic tilt mechanism adjusts to the user’s height or vertical position over a range of 50 cm (about 20 inches), making the EF-45N ideal for countertop, desktop, wall mount or kiosk installations. The EF-45N is an embedded terminal, which means that all image processing and machine control is performed on the internal Linux-on-ARM mainboard.
  • Page 3 Meets CE mark, FCC, IEC 62471 eye safety, and RoHS standards. Iris recognition meets ISO · 19794-6 2011 standard Design and production meet ISO 9001 2015 standard · www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 4 Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 5 AC I/O cables with push in connectors for device, and pig tails for external connections Includes cables for Wiegand (2), RS 485, RS 232, TTL (2), dry contact relay diode www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 6 Recommended mounting height and UI (left), Capture Volume of EF-45N (right) The recommended mounting height for the EF-45N is 144cm (57 inches) from floor to the bottom of EF-45N. The mounting height can be adjusted to accommodate the height of the average user.
  • Page 7 System, Front System, Bottom www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 8 System, Rear System Rear Connections Block www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 9 RED, it means the device cannot capture your image because you are too close. Move back until the box turns green. EF-45N captures the image of your face and iris automatically. www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved...
  • Page 10 On-board Demonstration Application The on-board demonstration application shows the full capabilities of the EF-45N for image capture including subject positioning with the face display user interface, enrollment, and on-board matching (authentication). The system boots up in this demo application. It is initated by the video based motion detector that first finds the subject from about 1 meter distance, and then continues the natural iris image capture sequence for capture in recognition / authentication mode.
  • Page 11 To enroll a new user, press the Enroll icon to bring up Enroll User screen. Press the plus(+) button in the bottom left to capture image of the new user. www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 12 Enroll User screen. Click on Name field to enter name of subject, then click on √OK complete enrollment. Name field Press the Home icon to return to the Launcher page to re-start Recognition and Authentication mode. www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 13 (Z) positioning with simultaneous color bar display for correct distance positioning: Blue: too far away Green: OK Red: too close Supplemental voice distance feedback standard. Convertible to local language via .wav file substitution. www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 14 Detachable wall mount plate for easy installation. Tamper configuration: wall mounting switch standard in PACS configuration with tamper switch Power supply Input 110 to 240V AC Output 15V DC, 3.5A. Provided standard with system. www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 15 5th Floor, 38, Burim-ro, 170beon-gil, Dongan-gu, 2033 Gateway Place, Suite 500 San Jose, CA 95110 USA Anyang-si, Gyeonggi-do,14055, Republic of Korea Tel: (1) 408 573-6930 Tel : +82.70.8633.8278 Fax: +82.31.624.4490 Contact: sales@cmi-tech.com www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 16 Appendix 1 EF-45N LCD Control Screens and On-Board Demo Application Main Launcher Page ① Check Attendance (F1 Key) ⑧Notice Icon of Face mode is operating ② Leave Work (F2 Key) ⑨Notice Icon of CMID manager is connected ③ Supplement T&A (F3 Key) ⑩Notice Icon of IP network is connected...

  • Page 17: Table Of Contents

    1.6.1 Input Server 1.6.2 Save Data 2.2.1 Server IP Serial Search 2.3.1 RS485-PC 2.3.2 RS485-NET Capacity Info 2.3.3 RS232 USB Memory Delete 2.4.1 FW Upgrade 2.4.2 Import 2.4.3 Export www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 18 Display Configuration for screen display Authentication Configuration for authentication method and T&A Mode Configuration for recognition operation Information of saved log and log search viewer (Note: In construction) www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 19: Device

    Set motion detection delay time from last recognition operating Motion detect Select motion detection enable/disable for starting recognition Debug Select Debug mode enable/disable (captures image stream for off- line analysis) www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 20 1.1.1 Configuration à User Positioning Interface ColorLR-Ov Select Color overlay type guide UI display Select tracking box type guide UI display 1.1.2 Configuration à Motion Wait Time www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 21: Bio

    Additional configuration for Iris enrollment and recognition Face Additional configuration for Face enrollment and recognition (note: in construction) 1.2.1 Bio à Security Level (Must have face recognition option) www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 22: Max Distance

    Max distance Set max distance for Iris recognition Recognition either eye Select enable/disable for either eye recognition mode Enroll either eye Select enable/disable for either eye enrollment mode www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 23 1.2.2.1 Bio à Iris à Max Distance www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 24: Sound

    Set speaker volume for instruction sound and interphone voice MIC volume Set microphone volume for interphone voice (note: in construction) 1.3.1 Sound à Speaker Volume 1.3.2 Sound à MIC Volume Identical to settings for speaker volume www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 25: Date & Time

    1.4 Date & Time Time sync Select enable/disable for time sync with CMID manager Manual setup Set date and time manually 1.4.1 Date & Time à Manual Setup www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 26: Door

    Select a door exit button (Note: in construction) RTE Type Select a door exit button operating type (Note: in construction) Door sensor Select a door sensor (Note: in construction) www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 27: Door Sensor Type

    Set door unlock time (note: in construction) Tamper Select enable/disable for tamper (off the wall detection) operation 1.5.1 Door à Relay Not use Select not use Internal Relay Select internal relay www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 28 Select door open for T&A event Authentication + T&A Event Select door open for authentication plus T&A event Disabled Select door open disable 1.5.3 Door à Duration (sec) www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 29 1.5.4 Door à Door Sensor 1.5.5 Door à Door Sensor Type Select door exit button sensor as Normal Open type Select door exit button sensor as Normal Close type www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 30 1.5.6 Door à Held Open Period (sec) 1.5.7 Door à Lock Time Never Select door lock time -- never Always Select door lock time -- always www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 31 1.5.8 Door à Unlock Time Never Select door unlock time -- never Always Select door unlock time -- always www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 32: Device Info

    Version name of released firmware (F/W) file Device ID Identification number of this device Kernel version Revision number of kernel HW version Revision number of hardware board MAC address of this device www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 33 Revision number of root file system Recovery version Revision number of recovery firmware Application version Revision number of Launcher application FPGA version Revision number of Camera FPGA firmware www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 34: Interphone

    Interphone Select enable/disable for interphone use (note: in construction) IP Address IP address of PC which interphone program is installed (note: in construction) 1.7.1 Interphone à IP Address www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 35: Memory Info

    1.8 Memory Info System Memory capacity of system area (note: in construction) User data Memory capacity of user area (note: in construction) www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 36: Camera

    Select power line frequency that supplying to device 1.9.1 Camera à Power Line Frequency 50Hz Select power line frequency to 50Hz 60Hz Select power line frequency to 60Hz www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 37: Reset

    1.10 Reset Reboot Reboot device Factory Default Reset all configuration settings and/or delete all user data 1.10.1 Reset à Reboot www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 38: Reset All Settings

    Delete all user data Delete all data and reset all configuration settings Reset all configuration settings and delete all user data 1.10.2.1 Reset à Factory Default à Reset All Settings www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 39 1.10.2.2 Reset à Factory Default à Delete All Data 1.10.2.3 Reset à Factory Default à Delete All Data and Reset All Settings www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 40: Network

    LAN type Select a type of LAN DHCP Select enable/disable DHCP mode IP Address Set static IP address Gateway Set static gateway IP address Subnet Set static subnet mask www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 41 2.1.1 TCP/IP à LAN Type Disable Disable LAN use Ethernet Select Ethernet for LAN use 2.1.2 TCP/IP à IP Address www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 42 2.1.3 TCP/IP à Gateway 2.1.4 TCP/IP à Subnet www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 43: Server

    Select enable/disable for server use (Note: In construction) Server IP Set IP address of server (Note: In construction) Port (Note: To be eliminated) 2.2.1 Server à Server IP www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 44: Serial

    Select a baud rate for RS485 (note: in construction) RS485-NET Select an operating mode for RS485 (note: in construction) RS232 Select a baud rate for RS232 (note: in construction) 2.3.1 Serial à RS485-PC www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 45 2.3.2 Serial à RS485-NET Not use Disable RS485 NET-HOST Set RS485 operating mode as host NET-SLAVE Set RS485 operating mode as slave 2.3.3 Serial à RS232 www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 46: Usb Memory

    Go into backup data (user & log data) restore from USB memory Export Go into backup data (user & log data) save to USB memory 2.4.1 USB Memory à FW Upgrade www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 47 If the FW file (new firmware and operating library) does not exist in USB, message appears as shown above. 2.4.2 USB Memory à Import User data Restore user enroll data from USB memory Log data Restore log data from USB memory www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 48 2.4.3 USB Memory à Export User data Backup user enroll data to USB memory Log data Backup log data to USB memory www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 49: Display

    3 Display Configure settings for screen display. 3.1 Voice Instructions Voice Instruction Select enable/disable for voice guide positioning / instructions www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 50: Central Timer

    Central Timer Select enable/disable for clock display on the center of Launcher application 3.3 Menu Timeout Menu Timeout Set timeout for auto exit from menu display after leaving untouched www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 51: Screensaver

    3.4 Screensaver Logo Select logo display as screensaver Time Select clock display as screensaver 3.5 Pop-Up Timeout Pop-Up Timeout Set pop-up message window (recognition complete etc.) display duration www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 52: Backlight Timeout

    3.6 Backlight Timeout Pop-Up Timeout Set timeout for auto off of LCD backlight after leaving unused 3.7 Date Display YYYY/MM/DD Select year/month/day display mode DD/MM/YYYY Select day/month/year display mode www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 53: Language

    3.8 Language Language Select a language to use (Note: In construction) www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 54: Authentication

    4 Authentication Configure settings for authentication method and T&A. 4.1 Auth. Start mode Select a basic (first) recognition method Combination mode Select a combination (additional) recognition method if necessary www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 55: T&A

    Select enable/disable for T&A usage mode (note: in construction) T&A >Recognition Select T&A mode (Attendance etc.) first, then recognition Recognition > T&A After recognition, then input T&A mode (Attendance etc.) www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 56: T&A Mode

    4.3 T&A Mode (Note: In construction) www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 57: Mode

    Select a dual authentication (simultaneous 2 persons) method (note: in construction) Match timeout Set a recognition trying timeout Card mode Select use or not for CSN in RFID card (note: in construction) www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 58 5.1.1 Operation à Dual Authentication 5.1.2 Operation à Match Timeout www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 59 5.1.3 Operation à Card Mode www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 60: Log

    6 Log View information of saved log and log search viewer. 6.1 Log Info (Note: In construction) www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 61: User

    Displays the registered user lists in All and Group 1, 2, 3, 4 Enroll button Switch to enroll process Search button Switch to search process Capacity Info button Show the used memory percentage Delete button Switch to delete process www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 62: Enroll User

    ④ Admin: Can make a user administrator or not ⑤ Group: Can make a user belong to a group ⑥ Bypass Card: Can register a user who holding bypass card (highest priority card) www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 63: Name

    1.1 Name 1.2 Individual Select an individual authentication mode. www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 64: Group

    Selection changes tab to blue color Bio select check boxes are shown Face Select box for face image capture Glasses wearer Select box for face taking off glasses additionally if necessary www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 65 GREEN means OK RED means too close. Up/Down Arrow Can tilt camera manually if necessary (note: to be eliminated) Switch to Iris Capture stage after good face image acquisition www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 66 1.4.1.1 Iris & Face Process à Face Capture à Tracking Guide Box UI Positioning box appears in order to guide subject. Capture normal face images. www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 67 In case of selection of Glasses wearer check box, will be active for about 3 to 5 seconds. Capture additional face images taken off glasses. www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 68 In case of Tracking Guide Box UI mode, display will be active for about 3 to 5 seconds. 1.4.2.1 Iris & Face Process à Iris Capture à Tracking Guide Box UI Capture iris images. www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 69 Return to face capture stage Cancel Return to Enroll User screen Move to next screen to complete enrollment 1.4.4 Iris & Face Process à Complete Enrollment Cancel Return to User Main screen www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 70: Card

    Card tab Selection changes tab to blue color If "Please tag your card" message appears, touch front-bottom part of device with user card. 1.5.1 Card à Save Data www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 71: Pin

    Return to User Main screen Save user data and return to User Main screen 1.6 Pin PIN tab Selection changes tab to blue color Start (+) button Switch to input screen www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 72: Save Data

    Reset Clear pin number and (+) button is shown Cancel Return to User Main screen Save user data to complete PIN enrollment / return to User Main screen www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 73: Search

    2 Search Tap the Search icon to browse list of enrolled users. (Note: In construction) www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 74: Capacity Info

    3 Capacity Info Tap the Capacity Info icon to check storage space. (Note: In construction) www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...

  • Page 75: Delete

    4 Delete Delete information of enrolled user. Select All Select all users Deselect All Deselect all users Cancel Return to User Main screen Delete Delete selected user(s) www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 76 Recognition Process 1.1 Recognition Process Recognition process is identical to the enrollment process. 1.2 Recognition / Authentication Success 1.3 Recognition / Authentication Failure www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
  • Page 77 When access is denied, warning icons can appear on the screen. . Glasses: Device detects occlusion by glasses. . Color Lens: Device detects colored lenses. . Small Eye: Device cannot fully detect iris due to eyelid. www.cmi-tech.com EF-45N User Manual, v0.1.1 Copyright 2016, all rights reserved July 2016...
