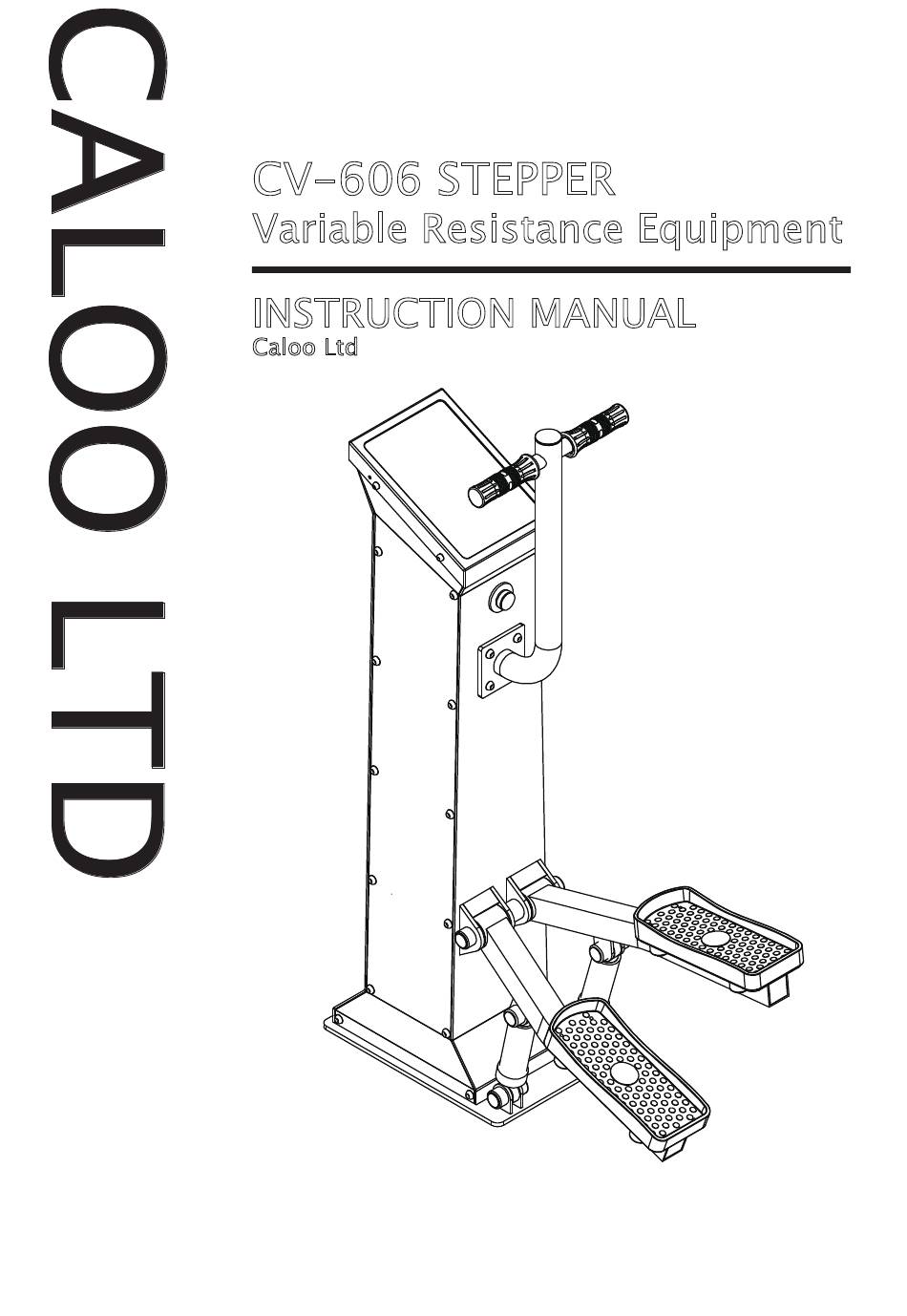

- Page 1 CV-606 STEPPER Variable Resistance Equipment INSTRUCTION MANUAL Caloo Ltd Unit 9A, Triangle Business Park, Wendover Road, Stoke Mandeville, Buckinghamshire, HP22 5BL. www.caloo.co.uk | 01296 614448 | info@caloo.co.uk...
- Page 2 INSTRUCTION MANUAL Model No.: CV-606 Stepper Thank you for purchasing our product. Please read this instructions before installing and exercising, and keep it for future reference. Failure to follow instructions may cause injury to you. WARNING 1. This unit is intended for youths and adults or users having an overall height greater than 1 400 mm.
-
Page 3: Data Sheet
INSTALLATION Model No.: CV-606 Stepper 1. DATA SHEET Product Size: 965 x 379 x 1437 mm Free Height of Fall:450 mm Net Weight: 91.3 kg Caloo Ltd www.caloo.co.uk | info@caloo.co.uk... - Page 4 INSTALLATION Model No.: CV-606 Stepper 2. IMPACT AREA AND TRAINING SPACE 1500 3381 Area Size: 3969mm x 3381mm, 11 m Required Surface: Any Caloo Ltd www.caloo.co.uk | info@caloo.co.uk...
- Page 5 INSTALLATION Model No.: CV-606 Stepper 3. FOUNDATION OPTIONS 3.1 MOUNTING AREA HAS NO CONCRETE SURFACE Caloo Ltd www.caloo.co.uk | info@caloo.co.uk...
-
Page 6: Installation
INSTALLATION Model No.: CV-606 Stepper A: Pylon Foundation Bolts 1. Make the concrete block according to above drawings 2. Embed 4 foundation bolts into the concrete block. 3. Wait for the concrete block to cure completely. Recommended curing time: 48 hours. - Page 7 INSTALLATION Model No.: CV-606 Stepper 4. PRE-MOUNTING This fitness unit has been factory aligned and tested before shipment. But it is still highly recommended that the unit has a thorough checking before mounting. 4.1 SPARE PARTS IN PACKAGE Desc. pylon foundation bolt Desc.
- Page 8 INSTALLATION Model No.: CV-606 Stepper 5. MOUNTING Make sure the checking process has finished before mounting. 1. Place the unit on a flat and solid ground surface. 2. Loose and unfix the screws on each side panel. There are 12 screws on each side panel.
-
Page 9: Post-Mounting
INSTALLATION Model No.: CV-606 Stepper 6. POST-MOUNTING After all the mounting process is done, the unit needs to go through another thorough checking and testing before it’s open to use. 6.1 SETTING UP AND CHECKING 1. Dust and clean the whole fitness unit. -
Page 10: Circuit Diagram
DIAGRAM Model No.: CV-606 Stepper 7. CIRCUIT DIAGRAM Dial 30A-23V Bridge Rectifier variable resistor 160A self excited generator 300W 24V *Design is subject to change without notice. Caloo Ltd www.caloo.co.uk | info@caloo.co.uk... -
Page 11: Exploded View
DIAGRAM Model No.: CV-606 Stepper 8. EXPLODED VIEW Caloo Ltd www.caloo.co.uk | info@caloo.co.uk... -
Page 12: Spare Parts List
DIAGRAM Model No.: CV-606 Stepper 9. SPARE PARTS LIST Part No. Description Specification Size(mm) Quantity Material Pylon Weldment Pylon Front 1146*260 1 SS400 Pylon Back 1278*260 1 SS400 Pylon Middle 1270*355 1 SS400 Pylon Front Top 321*230 SS400 Pylon Base Plate... -
Page 13: Replacement Parts List
DIAGRAM Model No.: CV-606 Stepper Drive Shaft 45＃ Waterproof Washer Synchronous Belt Wheel Large Q235 6902 Bearing 6902 6204 Bearing 6204 6204 Unilateral Bearing 6204 Synchronous Belt Wheel Large Q235 Synchronous Belt Wheel Small Q235 Bolt Generator Mounting Plate 473*144... -
Page 14: Maintenance
■Nut Cap, Bolt and Aluminium Pedal Inspection Nut caps are used throughout Caloo Ltd fitness units to cover bolts heads and potentially sharp bolt threads, except for the anti-theft screws which have a half round head. - Page 15 If a fitness unit or a component thereof requires replacement, and presents any safety concern, steps must be taken to restrict access to the fitness facilities until the replacement is done. Contact your dealer to deug any failure. Caloo Ltd www.caloo.co.uk | info@caloo.co.uk...
