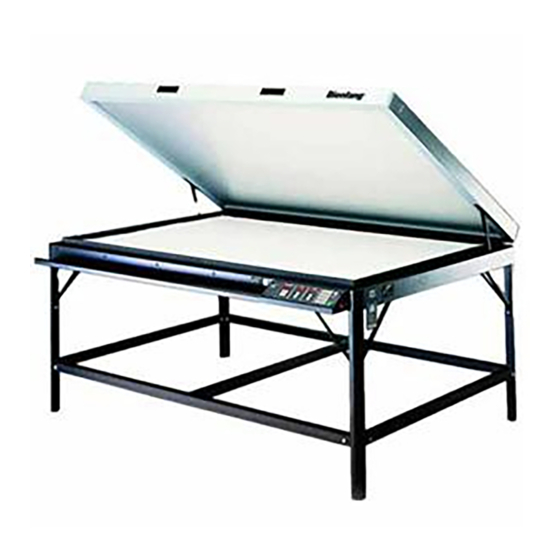

- Page 1 BIENFANG 3648H, 4468H & 5298H VACUUM PRESS Instruction Manual Provided By http://www.MyBinding.com http://www.MyBindingBlog.com...
- Page 2 OWNERS MANUAL Bienfang ® Vacuum Press ® 3648H, 4468H and 5298H Programmable Combination Vacuum Presses...
- Page 3 Installation and Preparation Installation and Preparation Identification of Controls Procedures for Use Procedures for Use Recommended Time and Temperature Setting Periodic Maintenance Warranty Troubleshooting Replacement Parts SPECIFICATIONS FOR THE BIENFANG ® VACUUM PRESS 5298H 4468H 3648H Catalog Number 2170 2160 2180...
- Page 4 - automatic operation frees in use. the operator for other duties. • Floor Stand: Optional for 3648H and 4468H. Used to • Digital Display: lets the operator know at all times the make the presses freestanding units rather than tabletop vacuum level, platen temperature and cycle time remain- machines.
- Page 5 To attach, depending on the pump fitting, As an alternative to the 3648H/4468H Floor Stand, a slide the vacuum line firmly into the chrome fitting on the heavy-duty, flat level table can be used.
- Page 6 1. Close and set temperature to 180ºF. After turning on the pump, the display should read a mini- mum of 20" of Hg for: 3648H within 40 seconds, 4468H 2. As your assistant holds open the lid, remove the clips within 1 minute and for the 5298H within 2 minutes.
- Page 7 5). To be used on top of application only. Three types of Release Materials are available: One sheet of Bienfang Release Paper should be cut to fit • Single-Sided Release Paper — a heavy white paper coated inside the base of the press (on top of the vent cloth), and with silicone on one side.
- Page 8 Running A Factory-Loaded Program out pressure, while they are still hot. This could cause The Bienfang Vacuum Press controller has 6 preset ® delaminating or excessive warping of the mounting board.
- Page 9 PROCEDURES FOR USE (CONTINUED) Review Settings Aborting a Cycle while Running To check the temperature setting, press the “Heat On” • To stop in mid-cycle, press “Stop”. key and the setting will blink on the display for 5 seconds before reverting back to the actual temperature. While Running a pump without the timer running a cycle the Time/Temperature settings can be seen •...
- Page 10 RECOMMENDED TIME AND TEMPERATURE SETTING The following suggested settings should give professional-level MOUNTING AND LAMINATING results under a variety of conditions. Depending on thickness FINISH GUARD-UV and size of board, amount of moisture present, actual line voltage, and other local conditions you may be able to process Material Adhesive Temp.
- Page 11 Hunt shall not be liable for damages, including but not limited to incidental or consequential dam- ages, arising out of or in connection with the use or performance of any Bienfang product. To get performance under this warranty, contact Bienfang Technical Support (1-888-240-6021) for assistance or to obtain a Return Authorization.
- Page 12 Check power cord Power supply off Check circuit breaker Power Switch off Check position Heat off Check control setting Controller malfunction Contact Bienfang ® Technical Service Uncontrolled Heat Controller Malfunction Contact Bienfang ® Technical Service Solid State relay (does press heat up over temp.
- Page 13 REPLACEMENT PARTS Replacement Part Numbers - Domestic (International) Replacement Part Numbers - Domestic (International) Heater(s) Description 3648H 4468H 5298H Right TS1202105 TS2302089 TS2302907 Pump, Piston Left TS2302089 TS2302097 Domestic TS6288126 Kit TS6299126 Kit TS6299126 Kit Center TS2302096 International TS56299123 TS6299123...
