GROCO SSA-3 Series Installation And Operating Instructions

Installation and Operating Instructions for
GROCO SSA-3 and SSA-4 Series
US Patent No. 7491320

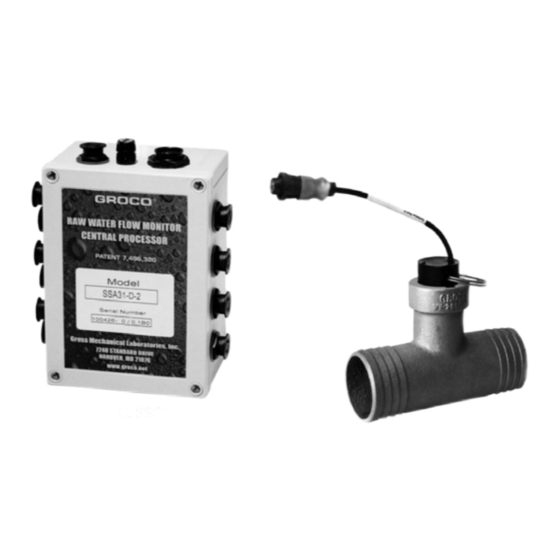

Processor
The Concept: GROCO
monitors raw water flow to as many as four devices
(engines, generators, air conditioners, refrigeration,
r/o systems, pumps, etc). through calibration the
patented process considers unique individual
plumbing and flow parameters, and learns "normal"
flow for each connected device. Audible and visual
alerts are provided within 7 seconds of a dangerous
reduction of raw water flow to any of the devices.
For service assistance/information call 410.712.4242 and ask for Strainers Service Department. After hours go to www.groco.net.
TOUCHPAD VERSION
(
Signal Cable
®
SSA-4 continuously
Info Sheet SSA-3 and 4 Series, 1 of 5
)
Ribbon
JPCB
Flow Sensor

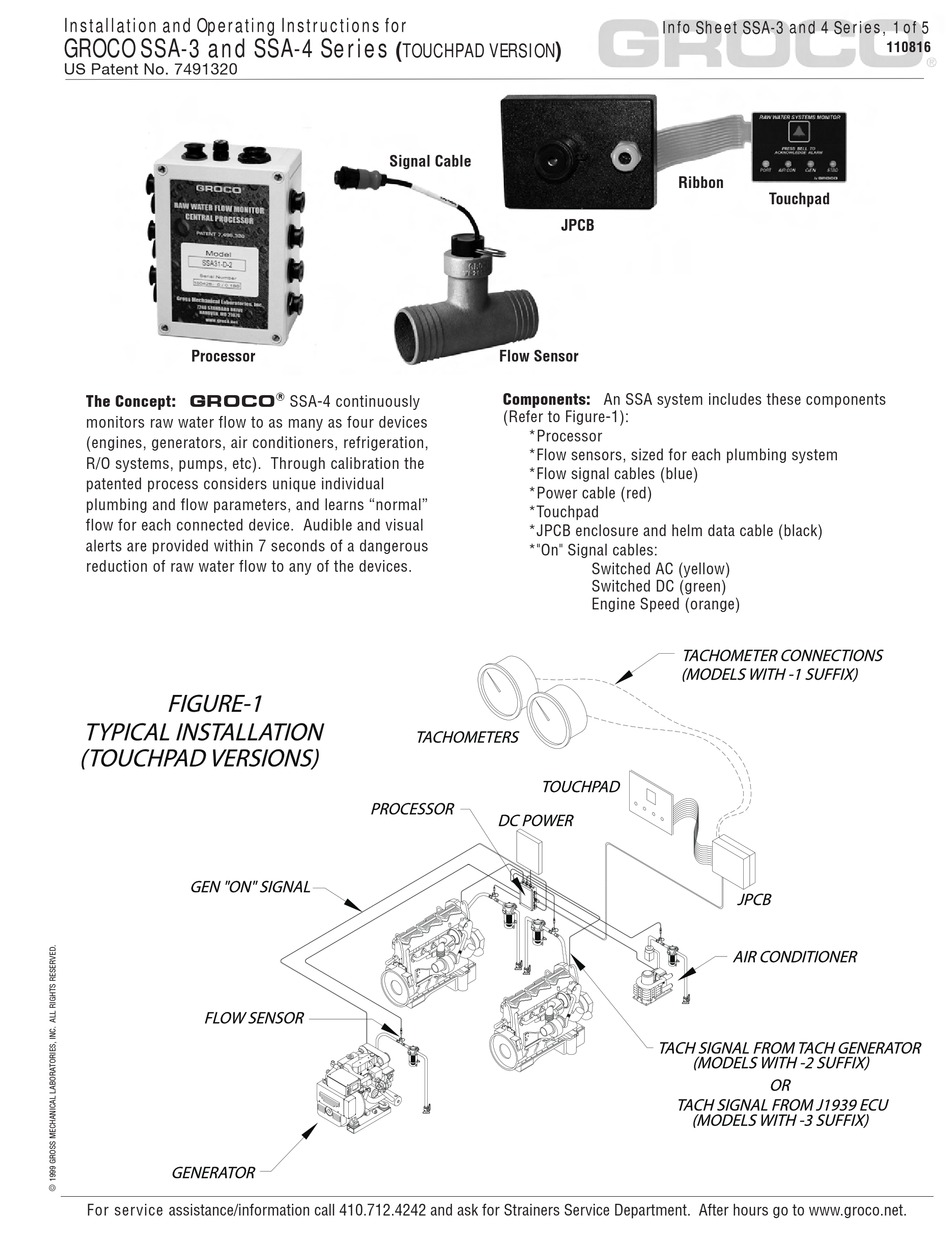

Components: An SSA system includes these components
(refer to Figure-1):
*Processor
*Flow sensors, sized for each plumbing system
*Flow signal cables (blue)
*Power cable (red)
*touchpad
*JPcb enclosure and helm data cable (black)
*"on" Signal cables:
Switched Ac (yellow)
Switched Dc (green)
engine Speed (orange)
110816
Touchpad
