LUCOLED Lucoflex RGB-DC Manual

Attention
The controller outputs about 512-800 points on each port, and no more than 800pcs on each port. Each port is
independently equipped with a power supply, which is not Shared with other ports.
The Standard Packing Quantity of RGB lights is 30pcs,and each string must be connected to the power supply.
The power wire should be 2.5 square meters of national standard multi-core pure copper wire.Make sure the correct
connection of positive and negative poles between led module and power supply,Treat the Exposed wires with
insulation arrangement
The controller needs to choose the products of regular manufacturers, and the signal output to the lamp must use our
special signal extension wire, not inferior network cable, common cable or telephone wire.
The power supply must have short circuit protection, overvoltage protection, overload protection and other functions,
the output voltage must be the same as the working voltage of the lamp string, the rated load power must reserve
20% of the margin.
The lightning protection scheme, leakage protection, timing and other supporting works of the overall project shall be
designed and constructed by professional departments.The resulting product problems do not belong to the scope of
our warranty.
Common Faults and Troubleshoot
Problems Reasons
Automatic power protection from the open or
short circuit in output of the power supply
All LEDs can not
Wrong connection of power supply.
light on.
Some IC do not light up when they are charged
Some switching mode power supplies are
not powered.
LEDs can not light
on partly
Wrong connection of power supply.
wrong IC model for the controller
The controller and the wire of the lamp are
Picture shaking and
connected incorrectly.
clutter
The lamp is not installed in the right way
The signal cables are ordinary cables
picture shake and
The lamp is overloaded
flicker
The power supply is poor and unstable
Signal instability Two power supplies per port
Single lamp no signal The signal cables are ordinary cables
single lamp flickers dim The lamp is overloaded
Abnormal color of
The power supply is poor and unstable
single lamp
repaired every month Low IC chip quality
no signal when it rains Induction short circuit or lamp not waterproof
No signal for half a
Poor contact due to rusting of lamp board
year
High signal failure rate
Cold and heat shock causes poor IC signal
in winter
Warranty statement
Product life span under normal usage
If the product is damaged due to its own quality problems within the warranty period (excluding improper use,
accessories and force majeure, etc.), our company will refund and replace the damaged products
warning
Do not do live-line working during installation,Make sure the input voltage meets the requirements and lines are
connected correctly before lighting on.
Installation, maintenance and repair should be operated by a qualified technician.
This product will generate heat when working, considered to choose the material with good heat dissipation
performance
The data given in this instruction manual is based on the standard product. Please refer to the actual product for
details
All the pictures of products in this manual are schematic diagrams. For details, please refer to the actual
products. The final interpretation right of this manual belongs to Lucoled NV.
Solutions
Check the circuit for short circuits
Check the correctness of positive
and negative connection
Check IC model
Check wiring is correct
Check if the line is connected to the
power supply
Confirm IC model rewrite program
green line and blue line DATA ,black
line GND
Check the wiring
Replace the network cable with
shielding function
2.5 square meters of national
standard multi-core pure copper wire
Replace high quality power supply
One power supply per port
Replace the lamp
Replace the lamp
Replace the lamp
Replace the regular light string
manufacturers
Check the lamp board for rust
Choose the manufacturer of
waterproof lamp board
Choose IC high protection
manufacturers

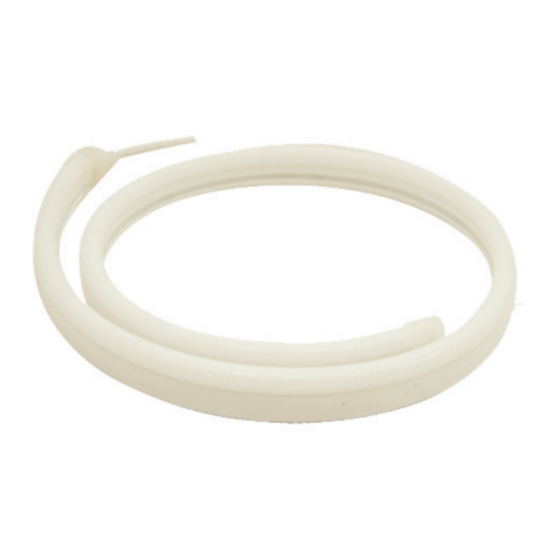

Lucoflex
RGB-DC
Manual
Please read this instruction carefully before using the product
