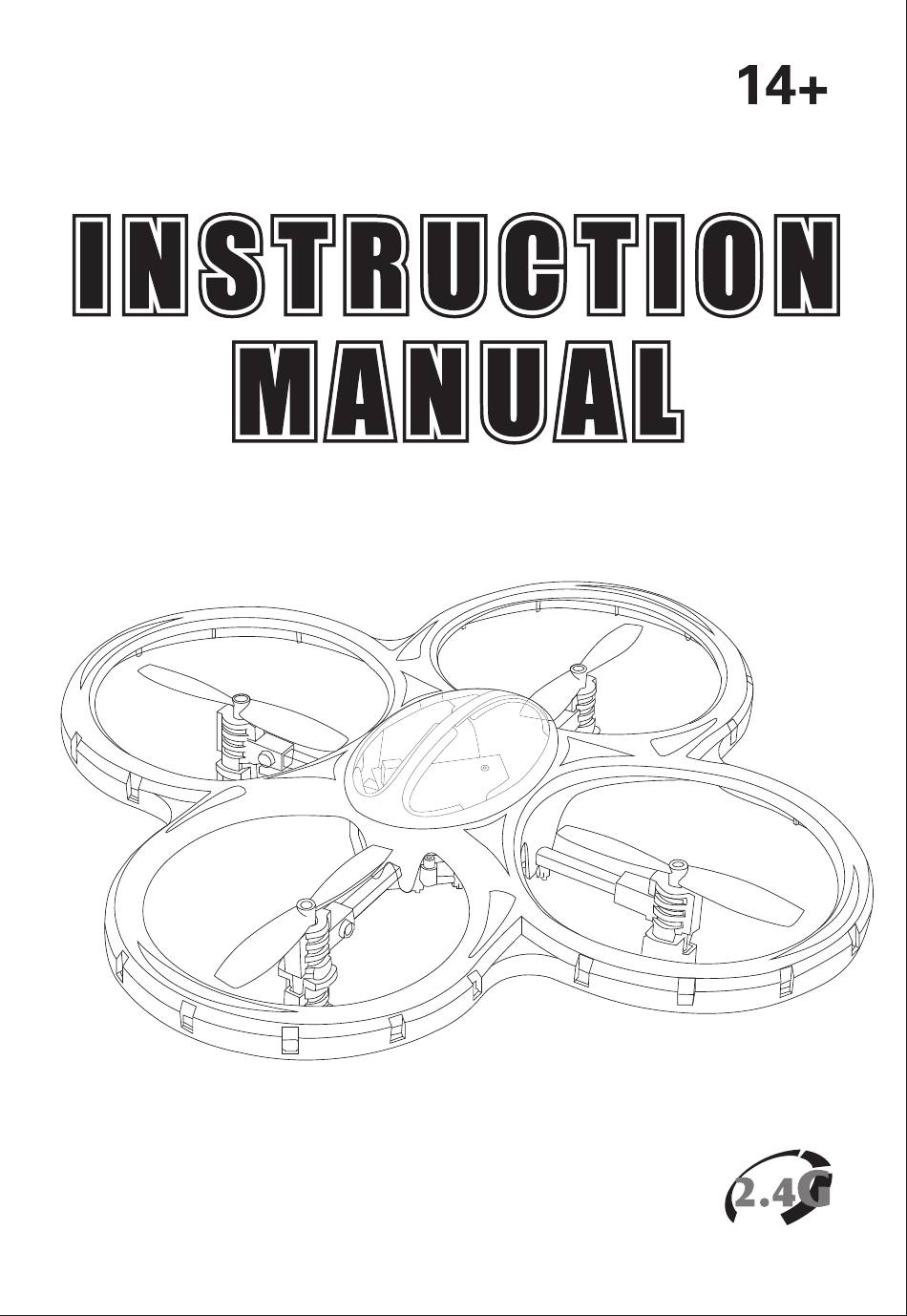

Summary of Contents for Wonder Tech W201L
-
Page 2: Remote Control
Remote Control With LCD remote control functions introduced. Power switch Power LED Direction control stick Speed comtrol stick Click tumbling Headless button open Forward trim Rotation around Right side of fine-tuning key the fly tuning Left side of Headless button off the fly tuning backward trim Headless mode Description: When the key switch is turned on without a... - Page 3 TRANSMITTER BATTERY INSTALLATION Trasmitter Step 1 Step 2 Battery lid Push Please use 4 AA sized batteries, installed Slide the battery lid to open based on polarity indicated case. Do not by following the arrow mix batteries of different chemistry/spec. Rechargeable Lithium Battery 2.1 The battery and charging cable, then connect the USB charging cable into the USB port or other access USB charger computer, and then turn on the power.
-
Page 4: Operation And Control
Step1 Turn on the power switch of aircraft,Motor seat red and blue flashing lights in front of the double representation.the aircraft will be placed in a flatposition, the status indicator flashes at this time not to move the body,so that the gyroscope read midpoint. Step2 Open the remote control power switch,push the throttle stick from the lowest to the highest, and then pulled a minimum of... -
Page 5: Sensitivity Settings
Left traverse Right traverse Note: When you fly the plane toward the Aileron Four aircraft left and right to control direction of the remote control is the opposite. lateral movement. Sensitivity Settings This section axis can achieve three modes of operation: low, intermediate, and advanced. Tap the elevator joystick enter setup mode: Open the remote control to enter the low-level axis mode (sensitivity up to 40%) When the remote control to issue a "bit"... - Page 6 This section by the following axis joystick can do a 360-degree roll flying. In order to perform rolling, ensuring ground to maintain the axis and 30 degrees, preferably during the operation of the rising roll model, this is easier to maintain the height of the micro-axis roll.
-
Page 7: Blade Installation And Removal
Under this advanced axis flight mode is very fast and can perform a variety of tumbling instruction. If you do not roll, you can choose anti-roll mode: Tap the throttle stick; Please note, you can not roll axis lithium battery is low. BLADE INSTALLATION AND REMOVAL This four shaft aircraft not each blade is the same, each A or B are marked on the blade, blade installation please click shown below label... - Page 8 Exploded View Part Name Part Name Number Quantity Number Quantity Mini Receiver Cabinet Motor (clockwise) Blade A Motor (counterclockwise) Blade B Lithium Battery Blade A Motor sets Blade B...
-
Page 9: Top View
1. Remote control and micro-axis can not code A: Check whether the remote control throttle minimum value. When the boot code on the stick and do not move to any other fine-tuning. 2. Propeller does not rotate, or very slow reaction. A: (1) lithium battery is low;... - Page 10 8.Axis after recalibration is still hovering in the drift. A: The axis on a horizontal surface, in which the orientation of the pad layers of paper drift (drift depending on the degree of thickness of the paper), which can calibrate the accelerometer in a horizontal plane, from the surface to solve the problem of drift.
