- Page 1 Lumen User Manual www.inversolpr.com User Manual Lumen and inverSOL 5000 www.inversolpr.com...
- Page 2 User Manual Lumen and inverSOL 5000 2...
-
Page 3: Table Of Contents
Physical Installation Solar Connections AC Connections Operations User Interface Overview Home Page Weather Forecast Page Hourly Forecast Information Page Historical Information Page Solar Energy Page Settings Page WiFi Page Administrador Page Maintenance and Troubleshooting User Manual Lumen and inverSOL 5000 www.inversolpr.com... -
Page 4: About Lumen
How It Works Lumen harnesses the Sun’s energy to provide power for your home. If you are generating more solar energy than you are consuming, the power is stored in the battery for use at another time during the day. - Page 5 The proprietary algorithm built in the Lumen brain continues to learn based on real time data and modifies usage to save you money, whilst ensuring backup power is available. The Lumen brain also allows you to track energy usage and savings real time via a mobile app or touchscreen display.
-
Page 6: Safety Intended Use
Incorrect operation can lead to injury to yourself or others and cause damage to property. Lumen is not intended for use as a primary or backup power source for life-support systems, medical equipment or any other use where product failure could lead to injury to persons or loss of life or property damage. -
Page 7: Voltage Inside The Storage System
6. Keep the battery modules well away from sources of ignition. 7. Do not short-circuit the battery modules. 8. Do not continue to use the battery modules after a short circuit. 9. Do not deep discharge the battery modules. User Manual Lumen and inverSOL 5000 www.inversolpr.com... -
Page 8: Conduct In Case Of A Fire
• The battery modules have a nominal voltage of 24 V (DC) and therefore fall into the range of protected extra-low voltage (under 60 V DC). • The battery modules in the Lumen is LiNMC www.inversolpr.com User Manual Lumen and inverSOL 5000 8... -

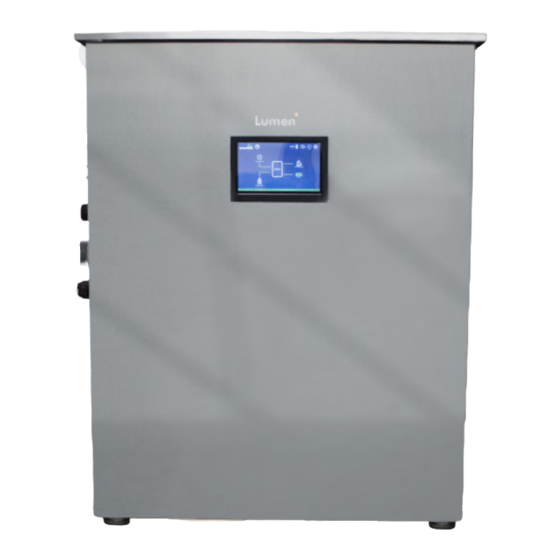

Page 9: Product Description
Product Description Product Description The Lumen unit is designed to provide you with years of uninterrupted power. It produces up to 4800 watts of split phase 240 VAC and/or 120 VAC. It also reduces your utility bills by substituting solar power for utility power. - Page 10 If solar and utility power is not available, the system will operate from the battery. Lumen will reduce your utility bills by the amount of solar power that is generated.
- Page 11 Your Lumen unit can also be connected to the internet to allow its performance to be optimized to weather and utility grid conditions as well as to provide connectivity through the available smartphone app.
-
Page 12: Available System Variants
Variants Available System Variants Lumen is available in several different configurations. The standard configuration is split phase 120V/240V with a 5,000 Wh LiNMC energy storage system. Both single phase and three phase configurations are also available, and the outputs of multiple Lumens can be combined to provide up to 19,200 W. -
Page 13: Installation

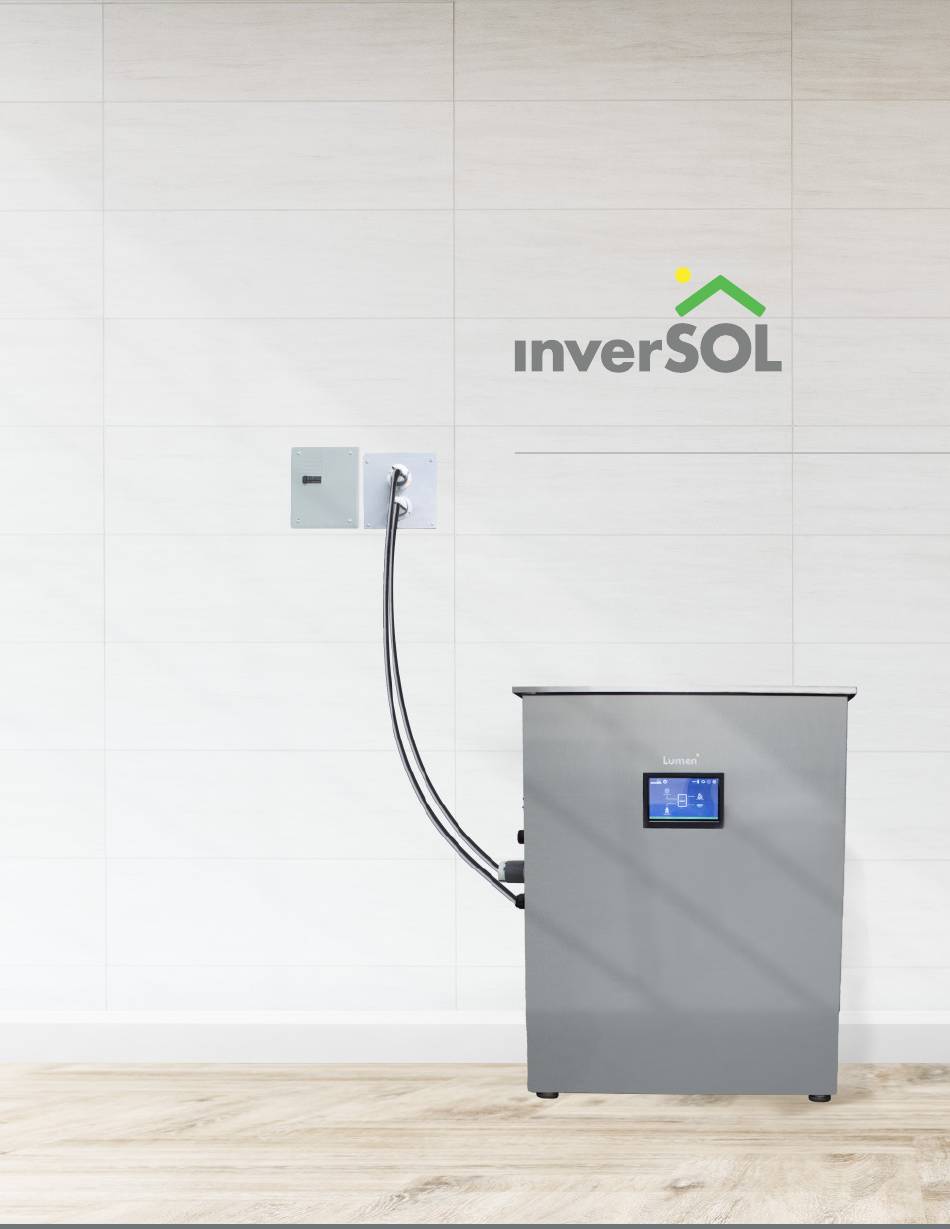

Installation Physical Installation Your Lumen unit is fully sealed and does not need to be opened. Place the unit against a wall where convenient to make the electrical connections to your main panel and the critical loads sub panel. The unit should be placed in a location that provides good ventilation with at least 6 inches of clearance from the front and sides. - Page 14 @ 11.8AMPS INPUT FEET/METERS 12 AWG 17.9/5.5 40/12.2 10 AWG 28.5/8.7 62.9/19.2 8 AWG 45.3/13.8 100/30.5 6 AWG 72/21.9 159/48.4 4 AWG 114.7/34.8 253/77.1 Table 2. Wire Sizes and Lenghths for Solar Connections www.inversolpr.com User Manual Lumen and inverSOL 5000 14...
- Page 15 Installation Figure 5. Lumen Solar Configurations User Manual Lumen and inverSOL 5000 www.inversolpr.com...
-
Page 16: Ac Connections
Installation AC Connections Lumen requires one 30A 240VAC input connection to utility power and provides one 20A 240VAC connection to the desired critical loads. 1. Connect input to main panel 2. Identify critical loads such as refrigerators, air conditioning, lights, etc. -
Page 17: Operations
Operation Operation The intelligent controller in your Lumen makes it very easy to operate. To turn the unit on, simply place the on/off switch to the on position (as indicated by 1 on the switch). The display will power up and will preprogram the default operating settings. Note that it takes approximately 20 seconds for the unit to go through its initialization and self-test before it is fully operational. -
Page 18: User Interface Overview
This touchscreen display is connected to the internal TELiG unit, where a service manager collects data from the Lumen unit. After five minutes of inactivity, a screensaver will appear with the screen turning off after another one minute. The manager will continue to run even when the screen is dark. - Page 19 Settings Tapping this will take you to the Settings page, where you can change the time displayed and access Wi-Fi settings. Table 3. Home Page Icons User Manual Lumen and inverSOL 5000 www.inversolpr.com...
-
Page 20: Weather Forecast Page
This will take you to the Hourly Forecast page. To return to the Homepage, tap the house icon in the upper left corner. www.inversolpr.com User Manual Lumen and inverSOL 5000 20... -
Page 21: Hourly Forecast
The list continues to the right. To see the rest of the forecast simply swipe left to see later items and right to see earlier. To return to the Weather page, tap the cloud in the upper left corner. User Manual Lumen and inverSOL 5000 www.inversolpr.com... -
Page 22: Information Page
The unit also collects and stores data for the past month. To see this data in graphical form, press the “Historical Charts” button to be taken to the Historical page. www.inversolpr.com User Manual Lumen and inverSOL 5000 22... -
Page 23: Historical Information Page
The unit automatically deletes data that is over a month old. To see a summary of the solar energy generated by the unit, tap the “Solar Energy” button in the upper right corner. To return to the previous screen, tap the info icon in the upper right corner. User Manual Lumen and inverSOL 5000 www.inversolpr.com... - Page 24 The state of charge of the battery. Battery Current (Amps) The current over which the battery supplied power. Battery Temperature (Celsius) The temperature of the battery in Celsius. Table 5. Available Data www.inversolpr.com User Manual Lumen and inverSOL 5000 24...
-
Page 25: Solar Energy Page
(up to 11 months). Data that is older than 12 months is automatically deleted. To return to the previous page, press the “Historical Charts” button in the upper left corner. User Manual Lumen and inverSOL 5000 www.inversolpr.com... -
Page 26: Settings Page
For details on what each setting does, please refer to the Administrator page. www.inversolpr.com User Manual Lumen and inverSOL 5000 26... - Page 27 If you change your mind, simply wait a few seconds or leave the page. User Manual Lumen and inverSOL 5000 www.inversolpr.com...
-
Page 28: Administrador Page
TELiG device the service manager is running on, as well as restore the defaults of the settings. To return to the previous page, tap the gear icon in the upper left corner. www.inversolpr.com User Manual Lumen and inverSOL 5000 28... - Page 29 101 V: Range will be 89-111 Volts AC Output 60 Hz Determines the acceptable 60 Hz: Range will be 57.5-61.5 Hz Frequency feed-in range for the grid 50 Hz: Range will be 47.5-51.5 Hz frequency Table 6. Administrator Settings User Manual Lumen and inverSOL 5000 www.inversolpr.com...
-
Page 30: Maintenance And Troubleshooting
Maintenance and Troubleshooting Maintenance and Troubleshooting Lumen is designed to be maintenance free with no serviceable parts. Should a fault occur, see the troubleshooting table below, and please contact inverSOL at info@inversolpr.com. Issue Resolution No output 1. Check AC output switch is in the ON position (indicated by a 1) 2.
