Gledopto HDMI Sync Box User Instruction

Gledopto HDMI SYNC Box
User Instruction
Ⅰ. Product description:
GLEDOPTO HDMI SYNC Box processes the HDMI signals, so that the
connected LED strip changes color or brightness synchronously with the
TV screen. Changes in color or brightness are based on the entire
background, not on different areas of the TV. It can also be paired with
Gledopto Pro or Plus products.
Ⅱ. Specification:
Size: 160x90x22mm Model NO.: GL-SN-001
Input Voltage: DC12~24V Operating Temperature:
Ouput Current/Channel: 6 A max Total Output Current: 10 A max
Protection rate: IP20

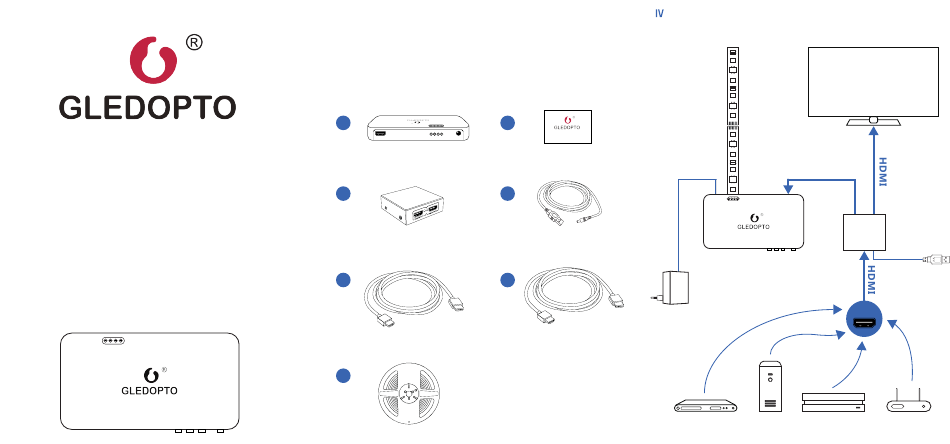

Ⅲ. Packing list:
1 2
HDMI SYNC Box x 1
3 4
1x2 HDMI Splitter x 1
5 6
1.5M HDMI Cable x 1
7
24V 5m RGB strip x 1

. Installation diagram

-20 °C~60 °C
Gledopto Sync HDMI Box
User Instruction
User Instruction x 1
Splitter power cord x 1
Power
supply
0.3M HDMI Cable x 1
DVD
TV
RGB strip
HDMI
HDMI
1x2 Splitter
Splitter
power
HDMI IN
PC PS4 SET-TOP BOX
