nutricook 2 User Manual

Hide thumbs

Advertisement

Quick Links

AIR FRYER 2
User guide.
Please make sure to read this User Guide prior to using your unit.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2 and is the answer not in the manual?

Questions and answers

Related Manuals for nutricook 2

Summary of Contents for nutricook 2

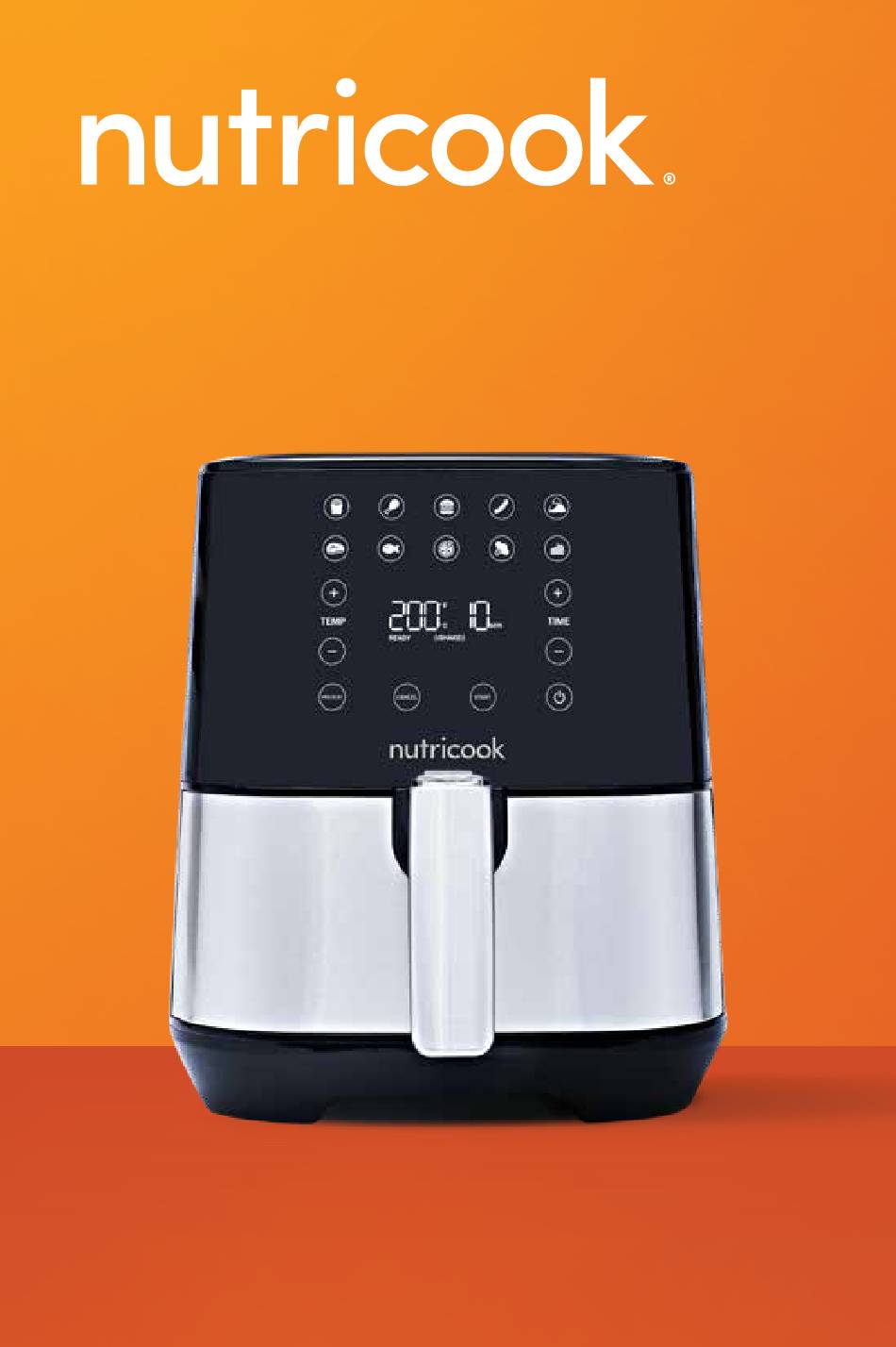

  • Page 1 AIR FRYER 2 User guide. Please make sure to read this User Guide prior to using your unit.
  • Page 2 Find delicious recipes online at: nutricookworld.com nutricookworld...

  • Page 3: Table Of Contents

    Contents. Welcome. Before you begin. Important safeguards & cautionary information. What's included. Air fryer parts overview. Getting started. Control panel details. Initial set up. Initial test run. Preheating. Preset programs. SmartTemp technology. Manual program. Shaking food. Smart features. Smart tips. Air frying chart.
  • Page 4 Find delicious recipes online at: nutricookworld.com nutricookworld...
  • Page 5 We are constantly working to create recipes that are EASY. DELICIOUS. NUTRITIOUS. You can find these recipes online at nutricookworld.com. We can’t wait to see how you make the Air Fryer 2 part of your everyday. Get social with us. nutricookworld...
  • Page 6 Find delicious recipes online at: nutricookworld.com nutricookworld...

  • Page 7: Before You Begin

    Before you begin. • Remove all packaging materials from in and around the air fryer and verify that all parts are accounted for. • Place the air fryer on a stable, level surface, away from external heat sources. • Read all Important safeguards and cautionary information in this User guide.
  • Page 8 Building a smoothie. Find delicious recipes online at: nutricookworld.com nutricookworld...

  • Page 9: Important Safeguards & Cautionary Information

    Important safeguards & cautionary information. Warning! This appliance generates heat and escaping steam during use. To avoid the risk of serious injury, carefully read all instructions before operating this appliance. When using any electrical appliance, basic safety precautions should always be observed, including the following critical information. GENERAL SAFETY •...
  • Page 10 • Do not place on or near a hot gas, electric burner and or in a heated oven. • CAUTION! Extreme caution must be used when moving unit containing hot oil or other hot liquids. • Never put the appliance against the wall or other appliances. There should be at least 3 inches of free space for the back side.
  • Page 11 • CAUTION! HOT SURFACE: This appliance generates heat and escaping steam during use. Proper precautions must be taken to prevent the risk of burns, fires or other injury to persons or damage to property. • CAUTION! This appliance is hot during operation and retains heat for some time after turning OFF.
  • Page 12 ELECTRICAL SAFETY CAUTION: To avoid risk of electric shock, never immerse the cord, plug, or air fryer base in water or other liquids. • DO NOT use this product in locations with different electrical specifications or plug types. Do not operate with any type of plug adapter or voltage converter device, as these may cause electrical shorting, fire, electric shock, personal injury or product damage.
  • Page 13 If an extension cord is used: (1) the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance, and (2) the longer cord should be arranged so that it does not drape over the counter or table top where it could be accidentally pulled off the counter or table or tripped over.

  • Page 14: What's Included

    AIR FRYER BASKET AIR FRYER BASKET DRAWER USER GUIDE Product Specification: MODEL CAPACITY POWER VOLTAGE WEIGHT DIMENSION 220-240 V AIR FRYER 2 3.6 L 1500 watts 4.8 kg 27.5x33.6x31.4 cm AF204 50/60 Hz 220-240 V AIR FRYER 2 5.5 L 1700 watts 5.9 kg...

  • Page 15: Air Fryer Parts Overview

    Air fryer parts overview. figure 1. air vent. (located at the back of air fyer) digital control panel. air fryer body. air fryer basket. basket drawer. cool-touch handle. figure 1a - basket parts. clear basket lock. basket release button. removable air fryer basket with cool touch handle.
  • Page 16 Find delicious recipes online at: nutricookworld.com nutricookworld...

  • Page 17: Getting Started

    Getting started.

  • Page 18: Control Panel Details

    Control panel details. TEMP TIME CANCEL Temperature value. Displays the setting for temperature. When unit is plugged in, default temperature value is 200°C. Adjustable Temperature Range: 75 - 200°C / 165 - 390°F. Temperature unit. °F (Fahrenheit), °C (Celsius). Default temperature unit is °C. To change the temperature unit between °F and °C, press and...
  • Page 19 Preset cooking programs. Preset cooking programs have automatic temperature and time settings Preset Programs Table (see for the default time and temperature). Select any of the following cooking program by pressing the icon. The selected program blinks/flashes and becomes steady if the START CANCEL button is pressed.

  • Page 20: Initial Set Up

    Initial set up. Remove and safely discard all packaging materials and labels from inside and outside of the Air Fryer. Ensure that there is no packaging underneath and around the Air Fryer basket and basket drawer. Place the Air Fryer on a stable, level, clean, heat-resistant and dry surface.

  • Page 21: Initial Test Run

    Initial test run. This step is optional but recommended in order to get yourself familiarized with the Air Fryer. It will also help eliminate any residue or traces of odor in the Air Fryer that may remain after shipping. NOTE: This process must be done with no food in the Air Fryer basket. Place the Air Fryer on a stable, level, clean, heat-resistant and dry surface, close to an electrical outlet.

  • Page 22: Preheating

    Preheating. Preheating the Air Fryer before placing food is recommended, unless the unit is already hot from a previous cooking cycle. Preheating saves cooking time and improves the texture of cooked foods. Place Air Fryer on a stable, level, clean, heat-resistant and dry surface, close to an electrical outlet.

  • Page 23: Preset Programs

    Preset programs. These programs are designed with pre-programmed time and temperature for certain foods to take the guess work out of cooking. Preset programs table. DEFAULT SMART TEMP* Time Shake Reminder Preset icon Description Temperature °C Temperature °F Time (min) Temperature °C Temperature °F (min) Function...
  • Page 24 5. Optionally, adjust the temperature and time settings, as desired. NOTE: Adjustments can be made during program selection or even during the cooking process. TEMP TIME • Press either to adjust the temperature and time values. Time range: 1-60 minutes Temperature range: 75 –...

  • Page 25: Smarttemp Technology

    NOTE: • While separating the Air Fryer basket from the basket drawer, always ensure that it is placed on a flat and heat-resistant surface. • Any excess fats or oil collected on the basket drawer must be drained before replacing the Air Fryer basket. 11.

  • Page 26: Manual Program

    Manual Program. This program allows you to cook manually without selecting any Preset. PREHEAT your Air Fryer. Follow steps in PREHEATING. When Air Fryer displays READY, add food to the Air Fryer basket and lock it in. 3. Set the temperature and time. 4.

  • Page 27: Shaking Food

    Shaking Food. During the cooking process, shake or flip your food for even cooking SHAKE and browning. Some presets feature an automatic Reminder function halfway through cooking. It is recommended to shake or flip your food once or more, if desired. CAUTION: •...

  • Page 28: Smart Features

    Smart features. Temperature unit conversion. Press and hold TEMP’s buttons simultaneously for seconds °C until Air Fryer beeps and temperature unit changes from to °F. Do the same step to switch back temperature unit from °F to °C. Shake reminder function. SHAKE The Air Fryer features an automatic reminder function for...

  • Page 29: Smart Tips

    Smart tips. Air Frying Chart Please consult the and/or follow package instructions for suggested cooking time and temperature. Always pat food dry before cooking to encourage browning and avoid excess smoke. 3. Ensure that food will not exceed the line on the Air Fryer basket.

  • Page 30: Air Frying Chart

    Root Vegetables, 2 - 3 cups fresh toss with oil, shake 190°C 15 - 20 min (roasted) spray with oil, shake Asparagus, 2 - 3 cups, fresh thin stems 190°C 7 - 9 min Green Beans, Sugar Snap Peas, spray with oil, 190°C...
  • Page 31 AIR FRY FOOD TEMP ACTION TIME French Fries, Idaho Potatoes, 2 - 3 spray with oil, shake cups 200°C (fresh, hand cut, 1/4 to 1/3 inch thick) spray with oil, shake 12 min (frozen, 1/4 to 1/3 inch thick) 12 min...

  • Page 32: Care & Maintenance

    Care & maintenance. WARNING: To avoid electric shock or damage to your air fryer, always unplug the power cord from the power supply outlet before cleaning. Make sure that all parts of your air fryer have cooled down completely. CAUTION: Do not immerse the power cord or your air fryer in water or any other liquids.
  • Page 33 (1 tbsp=15 ml) in a small bowl until forming a spreadable paste. 2. Using a soft sponge, spread the paste on the air fryer basket & basket drawer and gently scrub. Leave for about 15 minutes before rinsing.

  • Page 34: Troubleshooting

    Troubleshooting. Possible Problem Solution Cause Plug cord into the wall outlet. POWER To begin, press the button. The Air Fryer is not Make sure the air fryer basket/drawer is The AIR FRYER does plugged in. The Air assembled correctly and fully inserted into the not work Fryer has turned itself Air Fryer body.

  • Page 35: Warranty

    EXCLUSIONS AND LIMITATIONS This Nutricook Two-Year Limited Warranty applies only to Nutricook products distributed by or for Nutricook that can be identified by the “Nutricook” trademark, trade name, logo and bar code. Nutricook’s Two-Year Limited Warranty does not apply to any other products that may appear to be authentic, but were not distributed/sold by Nutricook.
  • Page 36 Repair or replacement of the product (or, if repair or replacement is not feasible, a refund of the purchase price) is the exclusive remedy of the consumer under this limited warranty. Nutricook shall not be liable for any incidental or consequential damages for breach of this limited warranty or any implied warranty on this product.
  • Page 37 NUTRICOOK IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPLACEMENT OF EQUIPMENT AND PROPERTY.
  • Page 38 AIR FRYER 2 nutricook | www.nutricookworld.com | All rights reserved. ® Illustrations may differ from the actual product. We are constantly striving to improve our products, therefore the specifications contained herein are subject to change without notice. NC-IMAF204-5...
