Oxytek Medical Technology OX- A Series Instruction Manual

Oxygen concentrator
Hide thumbs

Advertisement

Table of Contents

OX- A Series
OXYGEN CONCENTRATOR

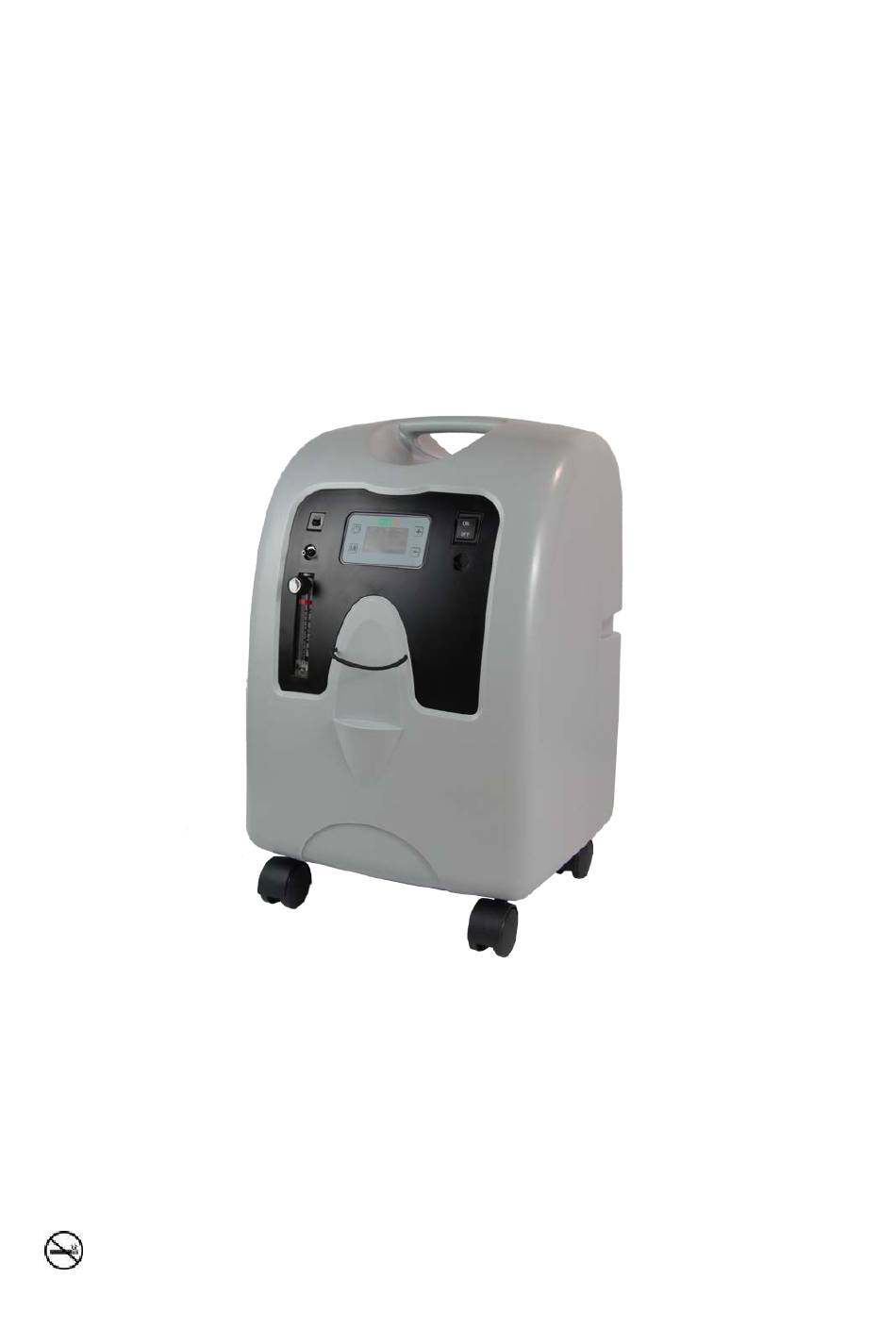

OX-10A/5A Oxygen Concentrator
Instruction
Guide
VERSION NO: VO
Issued on 2016.3.10
WARNING-Read instruction guide before operating this equipment.
DANGER---NO SMOKING
Page 1 of 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OX- A Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Oxytek Medical Technology OX- A Series

  • Page 1 OX- A Series OXYGEN CONCENTRATOR OX-10A/5A Oxygen Concentrator Instruction Guide VERSION NO: VO Issued on 2016.3.10 WARNING-Read instruction guide before operating this equipment. DANGER---NO SMOKING Page 1 of 16...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFEGUARDS ............................4 WHY YOUR PHYSICIAN PRESCRIBED SUPPLEMENTAL OXYGEN ..............4 HOW YOUR OX-10A/5A OXYGEN CONCENTRATOR WORKS ................4 IMPORTANT PARTS OF YOUR OXYGEN CONCENTRATOR ................... 5 SETTING UP YOUR OXYGEN CONCENTRATOR ...................... 6 BEFORE OPERATING YOUR OXYGEN CONCENTRATOR ..................7 OPERATING YOUR OX-10A/5A OXYGEN CONCENTRATOR ..................
  • Page 3 INDICATIONS FOR USE — The OX-A series Oxygen Concentrator is intended for use as an oxygen concentrator to provide supplemental low flow oxygen therapy in the home, nursing homes , patient care facilities, etc. WARNING Under certain circumstances, oxygen therapy can be hazardous. Seeking medical advice before using an oxygen concentrator is advisable.

  • Page 4: Important Safeguards

    IMPORTANT SAFEGUARDS Read this entire guide before using your OX-A series oxygen concentrator .Important information are highlighted by these terms throughout this guide: DANGER Urgent safety information for hazards that will cause serious injury or death. Important safety information for hazards that might cause serious injury. WARNING CAUTION Information for preventing damage to the product.

  • Page 5: Important Parts Of Your Oxygen Concentrator

    which allows high-purity supplemental oxygen to be delivered to you through the oxygen outlet, although the concentrator filters the oxygen in a room, it will not affect the normal amount of oxygen in your room. IMPORTANT PARTS OF YOUR CONCENTRATOR Please take time to familiarize yourself with your OX-A series oxygen concentrator before operating.

  • Page 6: Setting Up Your Oxygen Concentrator

    FRONT View (Figure 1) REAR View (Figure 2) SETTING UP YOUR OXYGEN CONCENTRATOR 1. Position your unit near an electrical outlet in the room where you spend most of your time. DANGER Keep the oxygen concentrator at least 5 feet (1.6 m) from hot, sparking objects or naked sources of flame.

  • Page 7: Before Operating Your Oxygen Concentrator

    BEFORE OPERATING YOUR OXYGEN CONCENTRATOR 1. Before operating your unit always checks to be sure the air filter (located on the back of your unit) is clean .Proper cleaning of this filter is discussed in the Caring for Your Concentrator section on page 2.

  • Page 8: Reserve Oxygen System

    Remove the power cord completely from the line cord strap, Make sure the power switch is in the “Off” position, and insert the plug into the wall outlet; the unit is double insulated to guard against electric shock. WARNING Improper use of the power cord and plugs can cause a burn, fire or other electric shock hazards .Do not use the unit if the power cord is damaged OPERATING YOUR OX-10A/5A CONCENTRATOR DANGER...

  • Page 9: Caring And Periodic Maintenance For Your Unit

    CARING AND PERIODIC MAINTENANCE FOR YOUR UNIT Not—Use no lubricants, oils or grease. WARNING Before attempting any cleaning procedures, turn the unit “off.” Oxygen Humidifier (reusable bottles) If your physician has prescribed humidification, clean your humidifier bottle daily. Follow the instructions Supplied by the manufacturer, If no cleaning instructions were supplied, follow these steps 1.
  • Page 10 close the Important Safeguard. 3. Change the Bacterial Filter at least once a year. You can not change this by yourself, you must contact your OXTM Medical provider change this for you. Page 10 of 16...
  • Page 11 Accessories The accessories below are approved for use with OX-10A/5A Oxygen Concentrators: Object/part No. Type/model Technical data Bubble Humidifier(400 ml Capacity) REF7100 ABS,PP Cannula (disposable) 3583 Cannula w/ 2.1m(7 ft) Oxygen Tubing 3031 (disposable) Oxygen Tubing (disposable) 30302 NOTE- The use of certain humidifiers and accessories not specified above may impair the oxygen concentrator’s performance.

  • Page 12: Minor Troubleshooting

    MINOR TROUBLESHOOTING Symptom Possible Cause Remedy 1. Power cord not properly inserted into Check power connection at the wall outlet. On wall outlet. 230 volt units, check the back of the unit. A. Unit does not operate. Power light is off when the Check your home circuit breaker and reset if power switch is “on .”Audible 2.

  • Page 13: Specifications

    SPECIFICATIONS Item Rating Delivery Rate (Lower delivery rates available for 2 to10 LPM(OX-10A) low application) 0.5 to 5 LPM(OX-5A) Outlet Pressure 8.5-13 psi ( 68.5-90 kpa ) Electrical Rating 230 V, 50 Hz, 3.4A (Max.)OX-10A 1.4A (Max.)OX-5A Oxygen Percentage 2~9 LPM 93%±3%,10 LPM 90%±3%(OX-10A) 0.5~5 LPM 93%±3%,(OX-5A) Average oxygen concentration at 2 l/min: 93%±3%...

  • Page 14: Symbol

    SYMBOL General warning, caution, risk of danger Please read the instructions carefully before operating the product. Type B applied part Class II equipment Manufacture’s serial number Authorized representative in the European community Date of manufacture Manufacture Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE Directive) after over the valid term within 3 years, the machine should be treated on local law or regulation requirement.

  • Page 15: Electromagnetic Immunity

    ELECTROMAGNETIC IMMUNITY Guidance and manufacturer’s declaration – electromagnetic immunity The OX-10A/5A OXYGEN CONCENTRATOR is intended for use in the electromagnetic environment specified below. The customer or the user of the OX-10A/5A OXYGEN CONCENTRATOR should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance...

  • Page 16: Declaration Of Conformity

    DECLARATION OF CONFORMITY Oxytek Medical Technology Co., Ltd. ADDRESS: 10-2 , Guang Long Industrial Park, South 1st Rd, Chencun town, Shunde district, Foshan city, Guang Dong Province , China. Product Designation: Oxygen Concentrator Catalog Number: OX-10A/5A CGI Business Trading and Consulting e.K Hans-Bethe-Str.1, 60438 Frankfurt am Main, Germany...
