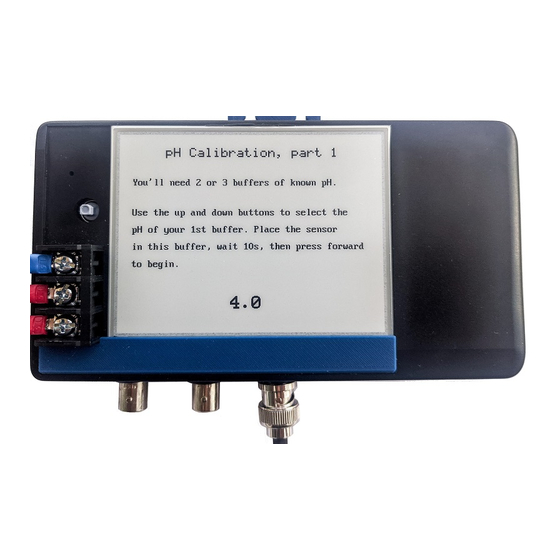

The Water Monitor is a sensor suite that measures 4 properties of water:

Temperature, pH, oxidation-reduction potential (ORP), and electrical conductivity

(EC). The EC sensor may be used to estimate total dissolved solids (TDS). These

measurements can be used for a number of applications. Some suggestions are

laboratory, hydroponics, aquariums, swimming pools, and water-quality field

work. The Water Monitor can be powered using USB-C, or using 3 AA batteries.

Specifications

• Dimensions: 50 × 25 × 17(height) mm

• Weight: 52 grams (8oz)

• Safe temperature range: 0-80°C

• pH precision: 0.01, with a suitable sensor

• pH Range: 0 - 14

• pH and ORP electrode design: Double junction glass electrode

• pH and ORP bulb shape: Spherical

• Temperature precision: 0.03°C

• Temperature accuracy: 0.5°C and better

• Compatible EC cell constants: K=0.01, K=0.1, K=1.0, K=10 cm ¹ ⁻

• Conductivity range: 0.01 µS/cm to 1 S/cm

• Conductivity range with K=1.0 probe: 100μS/cm to 10mS/cm

• Power: USB-C, or 3 × AA batteries (included)

• Sensor interface: BNC Male (Accepts BNC female sensors) for pH, ORP,

and EC. 3-wire screw terminals for RTD.

• Power consumption (typical): 500μW

Quick start
