CAR PARKING SENSOR
Instrukcja montażu czujników parkowania
Car parking sensor manual
Einparkhilfe Betriebsanleitung
Installazione kit sensori di parcheggio
Manual de instalación de sensores de aparcamiento
Notice de montage de l'aide au stationnement
Instalace parkovacích senzorů
Instrução de montagem de sensores de aparcamento
Advertisement
Table of Contents

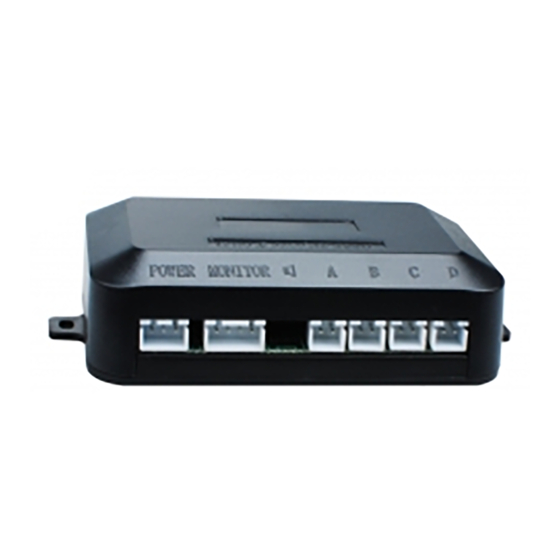

Summary of Contents for M-tech CP4W
- Page 1 CAR PARKING SENSOR Instrukcja montażu czujników parkowania Car parking sensor manual Einparkhilfe Betriebsanleitung Installazione kit sensori di parcheggio Manual de instalación de sensores de aparcamiento Notice de montage de l’aide au stationnement Instalace parkovacích senzorů Instrução de montagem de sensores de aparcamento...
- Page 2 ar parkIng sensor manual This product is a warning device only. The driver has to take responsibility for safety while driving a vehicle. General Parking sensor is a modern, ultrasonic-based supervisory system for vehicles. It checks space behind the vehicle during reversing or parking procedure and warns acoustically against obstacles, which are detected through the devices.
- Page 3 Sensor installation Ideal height to mount the sensors is from 45cm to 65cm. Mark positions on the bumper before drilling the holes as shown on the diagram below. Installation diagram 55cm is a recommended height. A vertical, flat and non-metal place of installation is required.
- Page 4 Technical data Detection Distance: 2m – 0.3m Detection Accurate: < ±1cm The best range: <0.9m Operating Frequency: 40KHz Voltage Range: 9-15V Operating Temp.: -40°C to 85°C Speaker: 80-100dB (at 30cm) Warning The parking sensor system is strictly a driver assistance device, it is not a substitute for driver responsibility when driving a vehicle.
- Page 5 M-Tech Poland Sp. z o.o. +48 32 284 10 10 info@m-tech.pl +48 32 428 42 99 www.m-tech.pl ul. Redena 10 41-807 Zabrze, Poland...
