Summary of Contents for DOMOLIFT CPM1

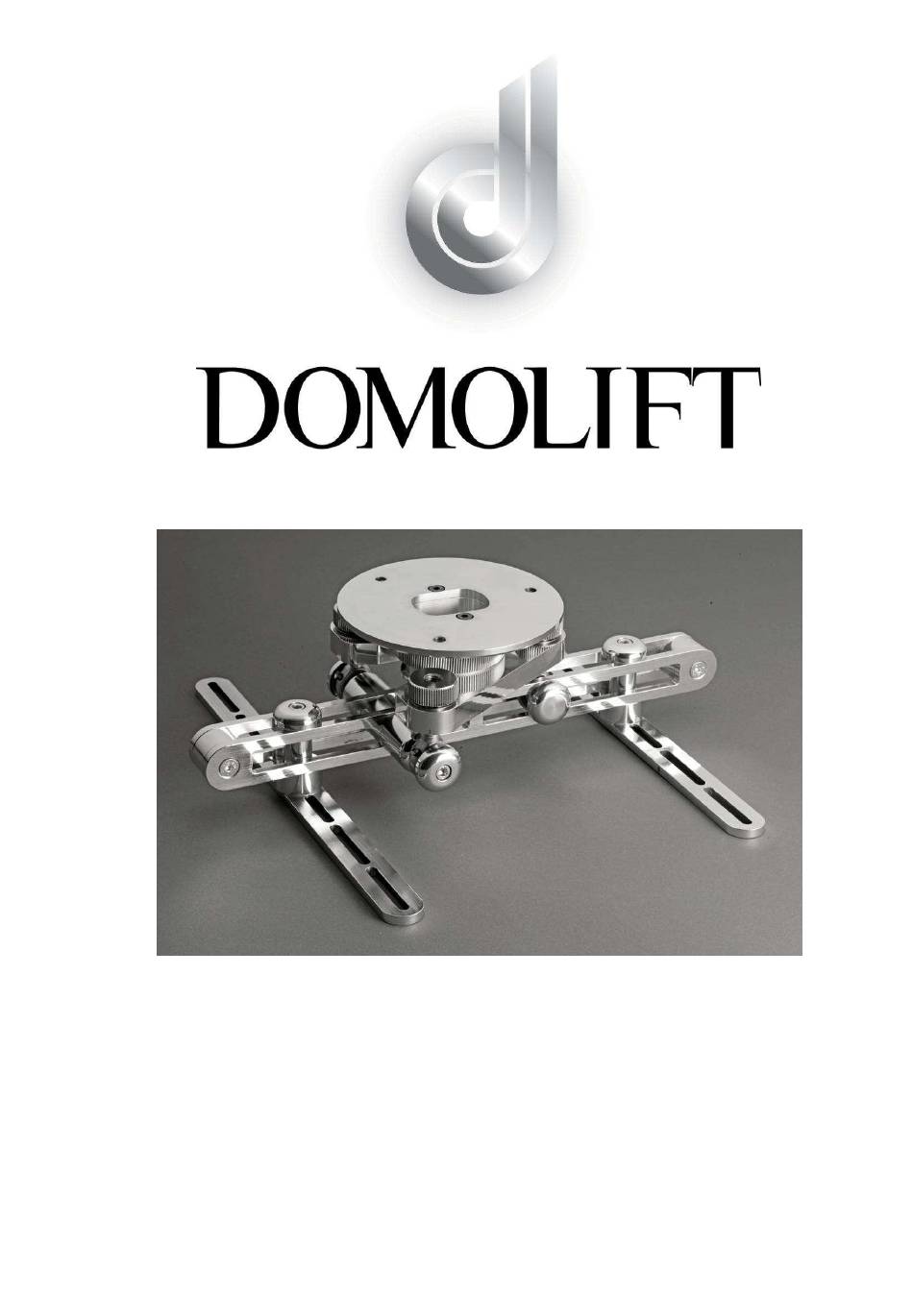

- Page 1 CPM1 eiling rojector ount...
- Page 2 Congratulations for the purchase of a DOMOLIFT tool! CPM1 is the best tool to placing a projector on ceiling, or at wall*. This unit, entirely in ANTICORODAL (anodized aluminum alloy) is unique in its genre, and represent the state of the art in the matter of mounts for video projectors. The CPM1 bracket allows a real correction of the projection plan, independently in all possible positions in the space, by three different knobs.
- Page 3 Content of the box...
- Page 4 Failure to follow these instructions may cause the fall of the projector with possible damage and/or personal injury. NOTE Into CPM1 there are several screws and ball bearings, these parts require oil and grease to obtain the best performance. Because of these parts, some stains could be present on the surfaces.
- Page 5 CPM1's disc to the ceiling. 3. Anchoring the projector to the CPM1 • Check that the useful area of the CPM1 is compatible with the anchor points on the projector. A first verification may easily done by comparing the area of...
- Page 6 B loosening the screws marked in "B" position, is possible slide the main CPM1 body, to get easily balance of the support. Found the correct positioning, tighten the screws using the supplied wrench.
- Page 8 ANNEX 1 Draw three holes of the anchor dowels at 120 ° on a diameter of 110mm or use the template in 1:1 scale on the following page (ANNEX2) directly on the ceiling to mark the centers.
- Page 9 ANNEX 2 Drilling template...
- Page 10 ANNEX 3 CLAMPING AREA OF THE CPM1...
- Page 11 ANNEX 4 Here below a view how to clamp the CPM1 to the projector. CPM1 BRAKET METALL WASHER TEFLON WASHER CLAMPING HOLE ON THE PROJECTOR...
- Page 12 ANNEX 5 Fitting the projector to the ceiling. Having set the CPM1 body to the projector and the plate to the ceiling, match the two parts interlocking them as shown below and tighten the fluted ring till the end. CEILING...
-
Page 13: Wrong Connection
WRONG CONNECTION... - Page 14 OPTIONAL SB 208: Short Bracket, 6 mm tickness. LB 380 Long Bracket, 8 mm tickness.
- Page 15 VE … (100, 200, … 700) Vertical Extension, available in these sizes (mm.) 100, 200, 300, 400, 500, 600, 700. TE 4.7 Telescopic Extension, adjustable from 400 mm to 700 mm.
