Assembly manual DCCNext

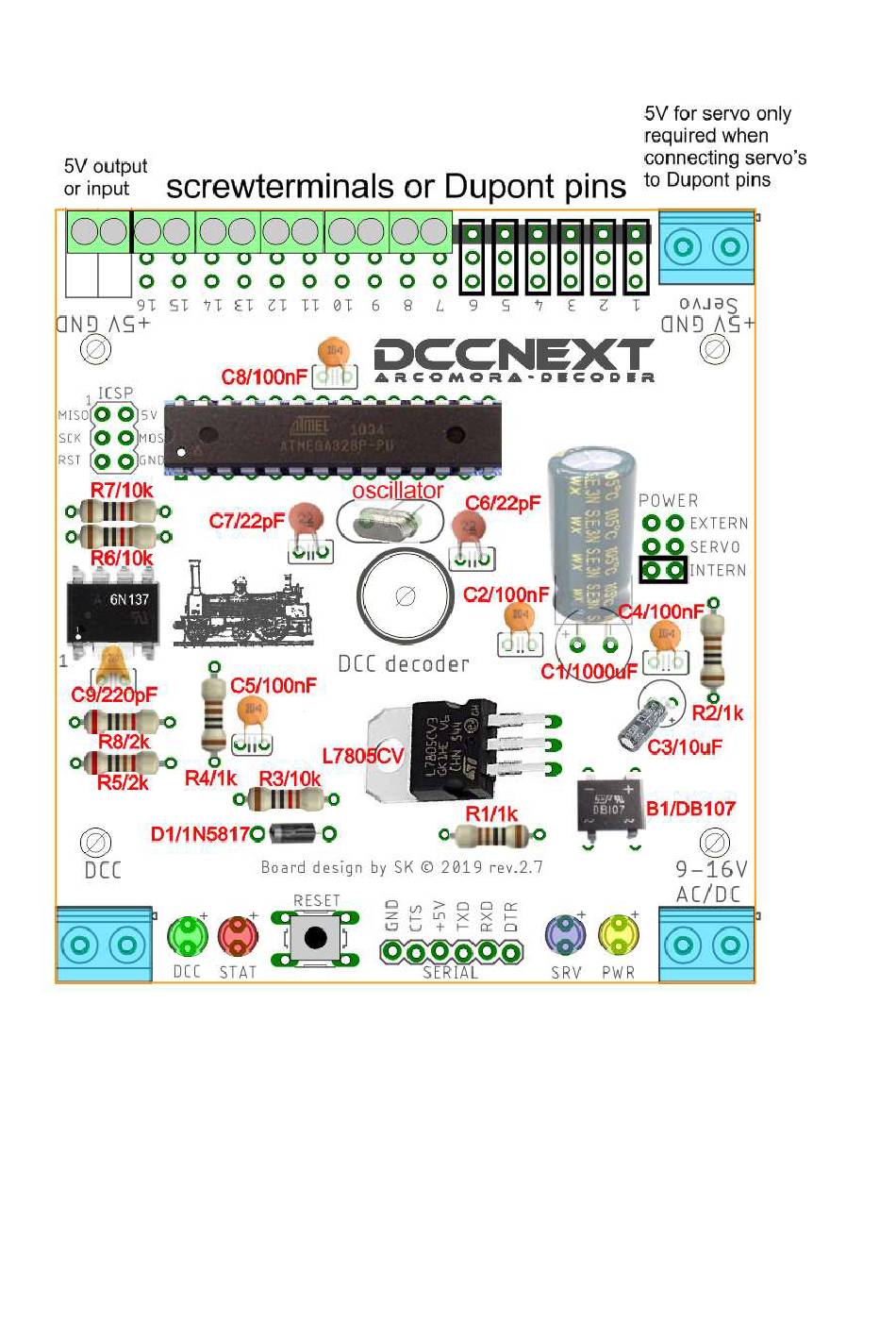

Place all components on the print as indicated below.
Check if all parts are present. Contact Arcomora if you miss something.
Partslist resistors/capacitors:
R1, R2, R4: 1k ohm. Brown, black, black, brown, brown. (may also be 330 ohm)
R3, R6, R7: 10k ohm. Brown, black, black, red, brown
R5, R8: 2k ohm. Red, black, black, brown, brown
C1: 1000 microFarad C3: 10 microFarad C2, C4, C5, C8: 100 nanoFarad ('104')
C6, C7: 22 picoFarad ('22') C9: 220 picoFarad ('221')
Please note: The screw terminal for the 5Volt connection may be blue!
