Summary of Contents for BlueDimension PARSEC

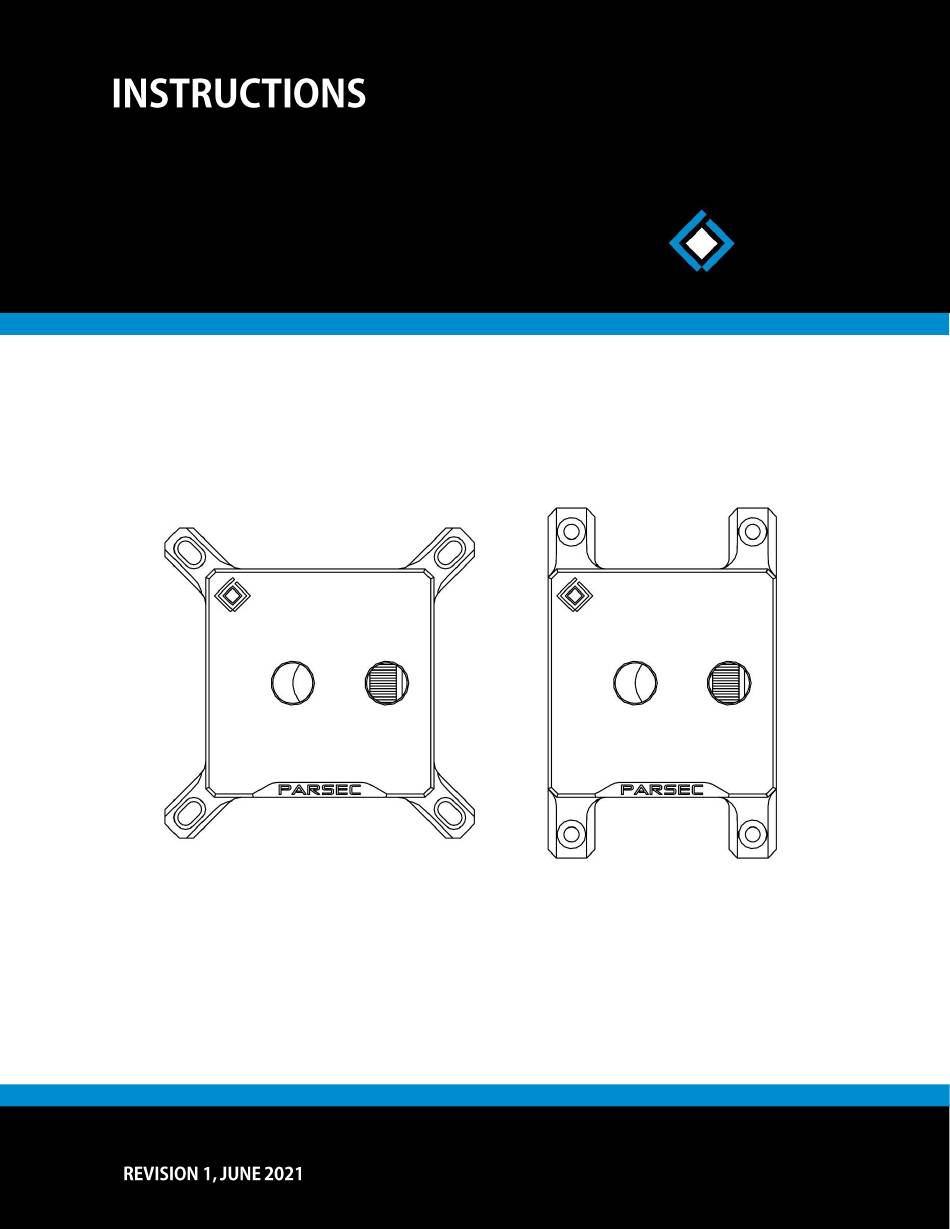

- Page 1 INSTRUCTIONS PARSEC CPU water block by BlueDimension...
- Page 2 12 years) and should be treated accordingly. Any improper use or installation could cause irreversible damage to your product and in that matter, BlueDimension does not take any responsibility. These instructions are updating on the website (revision and publish date are on the first page) and you should check to ensure to have the newest version.
- Page 4 Parsec CPU water-block is compatible with more socket types, listed below: • Socket LGA 115X • Socket LGA 1200 • Socket LGA 20XX • Socket PGA AM4 • Socket LGA sTRX4...
- Page 5 • Top plate • Jet-plate • Sealing ring • Housing • Coldplate • M4 screws (4x) • Screw cap (4x) • Springs (4x) • Mounting screws (4X) • Protective rubber (not used for Intel 20XX) • Backplate (not used for Intel 20XX)
- Page 6 STEP 1: Place top plate with the front face on clean and smooth working area, to prevent scratches. Then place housing on, as it is shown in the figure on the left. Beware to match the part with logo on housing and indentation on top plate.
- Page 7 Clean CPU surface with clean non-abrasive cloth and isopropyl alcohol to remove dust and impurities, such as fingerprints to ensure best possible performance and longevity of thermal paste (clean only the area, marked with blue colour). This step should be performed after the backplate is installed. Apply thermal paste in following configurations, but just beware to provide as much thermal paste, as it would be needed, after the assembly is completed, to cover the whole IHS (upper CPU surface area, marked with blue...
- Page 8 These steps should be performed after the CPU is installed! STEP 1: Put the isolating rubber between back part of motherboard and backplate secure with mounting screws (number 1), where each mounting screw needs one plastic washer between motherboard and screw. Tighten only by use of a hand, do NOT use any tools, or you may damage motherboard...
- Page 9 These steps should be performed after the CPU is installed. STEP 1: For this socket you will not need any backplates. Use one mounting screw (number 2) and one washer, located in between mounting screw and CPU mount. Tighten only by use of a hand, do NOT use any tools, damage...
- Page 10 These steps should be performed after the CPU is installed. STEP 1: Remove the pre-installed mounting mechanism, which already installed platform motherboard. STEP 2: Put the isolating rubber between back part of motherboard and backplate secure with mounting screws where each mounting screw needs one plastic washer in between motherboard...
- Page 11 STEP 3: Apply thermal paste in desired configuration as mentioned before and put water-block on secured screws and directly on CPU. Then put springs and screw caps on mounting screws and tighten them. Tighten only by use of a hand, do NOT use any tools, or you may damage threads.
-
Page 12: All Rights Reserved
BlueDimension ALL RIGHTS RESERVED Website: https://bluedimension.tech Support e-mail: support@bluedimension.tech Instagram: bluedimension_official...
