- Page 1 FREE YOURSELF FROM THE WALL SOCKET ARROE LAER ARLA-60 LAER - User Guide 20,000 mAh Portable Battery & Charging Hub...
-
Page 2: Table Of Contents
Contents 1. LAER 3 2. Quick Start Guide 10 3. The ARROE App 12 4. Charging your laptop 17 5. Charging your peripheral devices 21 6. In The Box 22 7. Charging specifications 28 ... -
Page 3: Laer
1. LAER INTRODUCTION LAER is a portable battery and charging hub made for travel and working on the go. LAER replaces all chargers/adapters/power banks with one compact device for ... - Page 4 ● DC port (with customisable voltage) ● Wireless charging FEATURES Safely charge any laptop. The ARROE mobile app and the firmware on the LAER device can customise the ...
- Page 5 Charge all of your devices including laptops on the go. Use LAER as a portable battery to charge all of your personal devices on the go, ...
- Page 6 notified when your LAER device is fully charged or needs charging. Specifically designed for luggage and bags LAER is designed for luggage and bags. It’s form factor was designed to sit in a ...
- Page 7 hardware, enabling improved performance over time. Battery Management System / Protection Circuit Module The LAER battery cartridge consists of a 14.8 V 74 Wh battery pack. The cartridge’s ...
- Page 8 Battery State of Charge (%) when the battery cartridge is ejected from LAER. This system utilises ...
- Page 9 area than the face of the battery pack). The cartridge also contains sponge mat to allow for expansion and swelling (5-10%) of the cells during cycling. ...
-
Page 10: Quick Start Guide
may cause inefficient charging performance of the LAER device. 4. To charge a laptop via the DC port on the LAER device, please refer to the ... - Page 11 Asia) and clip this onto the ARROE AC/DC 60 W adapter. 3. Connect one end of the USB-C cable to the ARROE 60 W AC/DC adapter ...
-
Page 12: The Arroe App
1. Find the ARROE mobile application download leaflet which has come inside the LAER box. Scan the display QR-code for instant access to the ... - Page 13 4. Follow the onscreen instructions to learn about your LAER device and how it operates. 5. Make sure Bluetooth is enabled on your phone. Your phone will pair and ...
- Page 14 The ARROE app will then display LAER’s current status. 6. Charge LAER using a USB-C the USB-C Port 1 toggle button will disappear and ‘Charging LAER’ will appear. ...
- Page 15 The ARROE app user interface is very intuitive. Buttons can be toggled on and off to enable and disable charging ports when devices are connected. LAER battery State of Charge will change during charging/discharging. ...
- Page 16 9. Swipe left on the ARROE app menu screen to display various properties of the currently inserted battery cartridge. This presents the size of the ...
-
Page 17: Charging Your Laptop
2. Insert the laptop connector tip cable end into your specific laptop device and insert the DC to DC cable into the LAER device, using the ... - Page 18 This option will help you connect your laptop and select the appropriate voltage and current for charging your laptop by using the ARROE database. Select the laptop manufacturer and laptop model from a dropdown. ...
- Page 19 2. The ARROE app will then request you to use its OCR function to determine the required voltage and current for your specific laptop. To do this you ...
- Page 20 While the profile is pending approval it will show as pending in the app. As soon as ARROE support has approved the profile it ...
-
Page 21: Charging Your Peripheral Devices
using either the USB-C port 1, USB-C port 2 or USB-A port. 2. Once connected, the LAER device will enable the port and begin to ... -
Page 22: In The Box

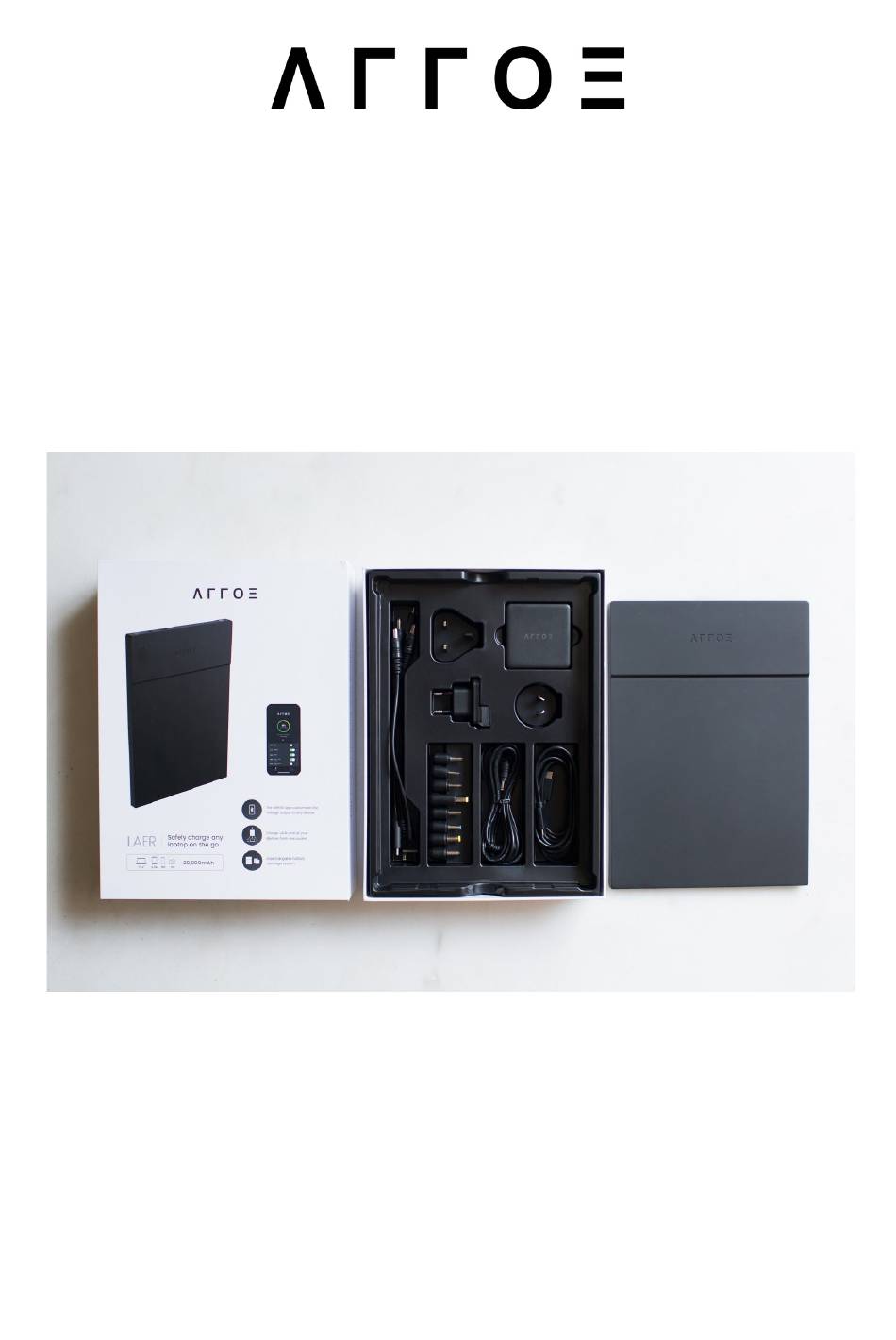

7. 2x DC (5.5 × 2.5 mm) to DC (5.5 × 2.5 mm) cables (23 cm and 2 m). 8. 8x DC port laptop connector tips of different sizes. 9. ARROE leaflet displaying QR-code for instant access to the Apple App ... - Page 23 Wall Adapter Certifications/Approvals: CE (EMC, RoHS, REACH) CB, ETL (Intertek), RCM, C-Tick, AS/NZS 3112 AS/NZS CISPR 32:2015 and SAA Approvals (Aus/NZ), FCC, ERP – EN 5056:2011+A1 Energy Efficiency, UL ...
- Page 24 Regional Plugs Certifications/Approvals: CE (EMC, RoHS, REACH) CB, ETL (Intertek), RCM, C-Tick, AS/NZS 3112 AS/NZS CISPR 32:2015 and SAA Approvals (Aus/NZ), FCC, ERP – EN 5056:2011+A1 Energy Efficiency, UL ...
- Page 25 Cables Certifications: FCC, CE marking (EMC, RoHS, REACH) 2m USB-C to USB-C PD 2.0 cable Specifications: Length = 2 m, 20 V/3 A, PVC injection for USB-C connector, PVC cable, USB 2.0 Version, 480 Mbps, with ‘Λ’ logo print on each USB-C connector. ...
- Page 26 Certifications: CE (EMC, RoHS, REACH), FCC. Specifications: 20 V/3 A, PVC cable, matt black finish. Drawings: (a) DC to DC 23 cm recessed and (b) DC to DC 2 m extender (a) DC to DC 23 cm recessed and (b) DC to DC 2 m extender ...
- Page 27 DC port laptop connector tips The 10 DC port laptop connector tips include the following: I.D. Compatible laptop Outer & Inner Dimensions Tip colour Acer/Asus/Compaq/Delta/Fujitsu/ 5.5 × 2.1 mm black Liteon/Catewa/Toshiba/Gateway/Hasee/Lenovo StandardLenovo/Standard 5.5 × 2.5 mm yellow Dell 4.5 × 3.0 mm black 4.5 × 3.0 mm blue Lenovo/ThinkPad rectangular yellow ...
-
Page 28: Charging Specifications
7. Charging specifications Charging method Power Voltage I/O USB-C port 1 60 W device selected input & output USB-C port 2 60 W device selected output DC port 60 W user selected output USB-A port 18 W device selected output ... - Page 29 The LAER battery cartridge contains lithium ion polymer composite battery cells. If shipping your LAER device by air your LAER device will be stored in the ...
- Page 30 enclosure. Check USB port power supply specifications before use. Use ARROE branded power supply supplied. ...
- Page 31 SAFETY INFORMATION NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user’s authority to operate the equipment. NOTE: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 32 However, in the event there is a fault with your LAER we have a warranty and repair ...
