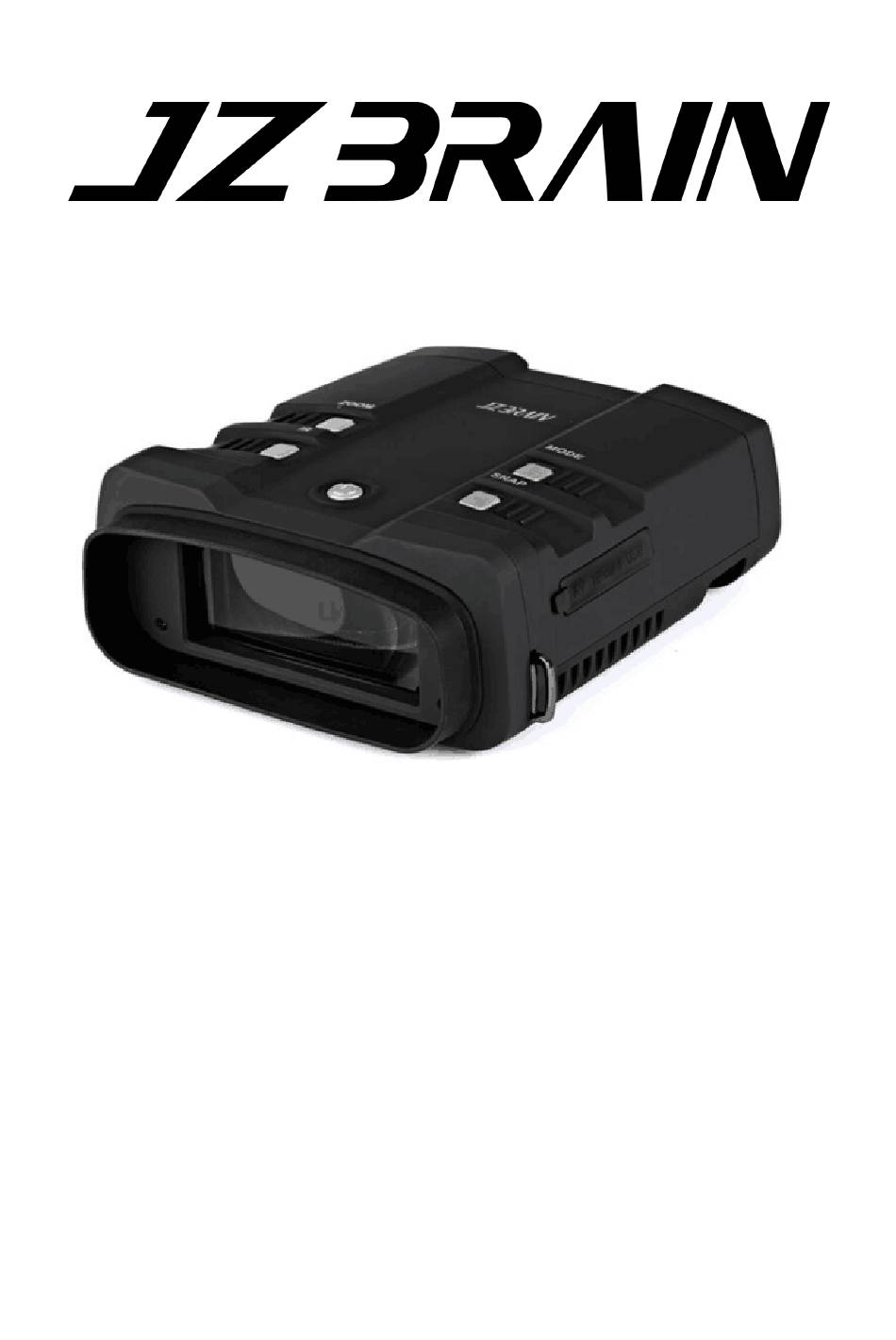

- Page 1 WG500B 1080P USER MANUAL...
- Page 2 Congratulations on your purchase of this high quality night vision device. Use this device to view your surroundings in low light conditions or even in complete darkness with the built-in infrared light. You can even take pictures and video using the device which can be stored on a TF card. This device can also be used to take photos and video during the day.
- Page 3 Parts overview: 1. Ocular 9. TV out 2. Power button 10. Battery cover 3. IR button 11. Objective lens focus 4. Zoom button 12. Objective lens 5. Mode button 13. Infrared filter 6. Snap button 14. IR illuminator 7. USB port 15.
- Page 4 Battery Installation Open battery compartment and install the 8XAA batteries being sure to follow the polarity markings inside the battery compartment. Close the battery cover. Inserting / Removing the TF card Insert the TF card into the TF card port and push until it locks in place. To remove the installed TF card, please push the TF card inward to release it.
- Page 5 Focusing the image Target the object you would like to view and turn the focusing ring located just below the objective lens until the image on the screen is sharp and clear. Key functions Toggles between Video / Photo / Playback / Menu 【MODE】...
- Page 6 Icon displaying that you are in Photo Mode Brightness of IR from 1 to 5 (while plugging in USB power supply the IR brightness from 1 to 7) Remain capacity quantity Digital zoom Battery power Backlight from 1 to 15 Your screen display in video mode Icon displaying that you are in Video Mode Brightness of IR from 1 to 5(while plugging in USB power supply the IR brightness...
- Page 7 Your screen display during menu mode Format SD Select to format the TF card Power off mode :The NV can be set to automatically shut down when not operating after the selected period of time. Power Save...
- Page 8 Date ZOOM: UP IR: DOWN SNAP: OK Time ZOOM: UP IR:DOWN SNAP:OK Flicker The video output mode can be set to NTSC (North America) or PAL (Europe) TV Standard...
- Page 9 Language LCD Backlight Can set the backlight from 0 to 15 Date/Time Tag When you choose on, the date/time will be showed in the picture or video. Version The software version of the device...
- Page 10 WG500B Specification Using the zoom function This device features a zoom function that can be used while taking a video or photo. Press the [ZOOM] button to toggle between 1x and 3x digital zoom. Using IR light in complete darkness This device can be used in complete darkness when using the built in IR (infrared) light.
-
Page 11: Operation
Catalog Function Description Magnification (3.6-10.8) X31 Digital Zoom Max 3x Angle Of View 9.2° Objective Aperture 31mm Optiacal Exit Pupil Distance 30mm performance F# for Objective lens 1.3 IR ZOOM 2X 5m~∞ in daytime; Viewing in the darkness up to 300M (monochrome) 640x360 resolution TFT LCD OSD menu display Video Output... - Page 12 8 pcs AA battery 8-12 V Power Battery life: 10 hours working time with IR off Low battery warning 4 modes (Capture, Video, Playback Menu) Single frame Image Capture Video image Record Playback image Delete image 7 level IR switch SD card format Power save (Off/1 min/ 3min/5 min) System...
-
Page 13: Warranty Card
Warranty card Product model: Order Date of purchase: Warranty period: User Name: User’s phone: User Email : User address: Warranty records: Warranty This product is warranted against defects in materials and workmanship for a period if one year from the date of purchase. This warranty is for the original purchaser only! Notice: Operate this device in daylight or view any strong radiation source like the Sun, electric welding...
