Summary of Contents for WINDGOO Technology FST10

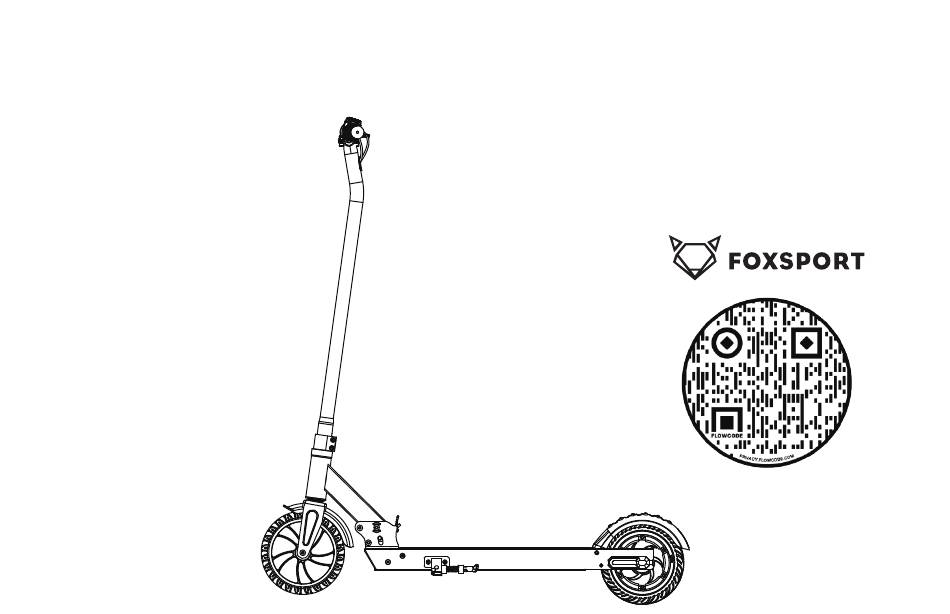

- Page 1 ENGLISH MANUAL Scan me...
-
Page 2: Table Of Contents
Contents ENGLISH 1 Safe use information ------------------------------------------------------------------------------------------------------ 2 Product introduction ------------------------------------------------------------------------------------------------------ 3 Learn how to drive --------------------------------------------------------------------------------------------------------- 4 Charging and precautions ------------------------------------------------------------------------------------------------ 5 Basic parameters ----------------------------------------------------------------------------------------------------------- 6 Daily maintenance --------------------------------------------------------------------------------------------------------- 7 Legal information ----------------------------------------------------------------------------------------------------------- 8 Warranty card ---------------------------------------------------------------------------------------------------------------... -
Page 3: Safe Use Information
1 Safe use information 1.1 About safe use Any tool for riding instead of walk has safety risks, and electric scooter is no exception. Therefore, for your safety sake, you have the responsibility and obligation to learn how to drive electric scooter, and strictly abide by relevant local laws and regulations. - Page 4 Children, old people, and pregnant women No riding with load；no riding with more are not allowed to ride. than one person at the same time. Overweight riding is strictly prohibited No riding after drinking or taking medicine. (the maximum load capacity of electric scooter is 50 ~ 150kg).
- Page 5 Pay attention to road conditions while riding, and avoid No talking on the phone, listening to music complex road conditions, such as height limit, complex with headphones or doing other distractions road surface(roadblocks, gravel, soil, water, sloppy, ice while riding. and snow area), steep slope (less than 20 degrees), obstacles, steps, dark light, etc.
-
Page 6: Product Introduction
2 Product introduction 2.1 Vehicle diagram Display screen Grip Accelerator handle Brake handle 8-inch solid tires Folding pedals Mudguard Parking kickstand... - Page 7 2.2 Function introduction 1. Switch on / off: long press the power button to turn on / off the power. 2. Acceleration: Press the accelerator button on the right hand to start and accelerate. 3. Brake: press the brake handle on the left handlebar to brake. 4.
- Page 8 2.3 How to expand 2.Then hold the vehicle tube linking the front tire and grip, and lift it up. 1.Step on the folding buckle with your foot. 3.Push the vehicle tube forward. 5.Grip installation: screw the left and right grips into the screw holes. 4.Expansion completed.
- Page 9 2.4 How to fold 2.Hold the grip and push forward. 3.Then pull back. 1.Step on the folding buckle with your foot. 6.Grip removal: screw out the screw holes on the left and right grips. 4.The vehicle tube is pressed down. 5.Folding completed.
-
Page 10: Learn How To Drive
3 Learn how to drive Note: There is a risk of falling and injury during the 1.Long press the power button for 2 study, so please wear helmets, knee pads, elbow pads seconds to turn on. and other protective tools throughout the course. 2.Stand on the pedal with one foot and push 3.When the electric scooter is sliding, step on the pedal the other foot back on the ground. - Page 11 4.Gently press the accelerator button of the right 5.Lightly press the accelerator button on the right handlebar to drive slowly, and turn the handlebar hand, the car can accelerate, remember not to be to control the riding direction (similar to bicycle). too fast.
-
Page 12: Charging And Precautions
4 Charging and precautions This paper mainly describes the charging method of the electric scooter, the maintenance method of the battery, the safety matters needing attention, and the battery specification. For the safety of you and others, maximize the battery life and improve the battery performance, please be sure to use the battery according to the following operations. - Page 13 -Only the charging equipment provided by our company is allowed to charge the electric scooter. Do not charge indoor. -It is forbidden to charge the over-discharged lithium battery. Over-discharged batteries have potential safety hazards and can only be scrapped. -The battery of an electric scooter can only be used under the permission of local laws. 4.3 Charging steps -Make sure that the charging port is dry without foreign matter, and the electric scooter is turned off.
-
Page 14: Basic Parameters
5 Basic parameters Expanded size 1083*432*1168mm Folded size 1175*432*365mm Maximum load 50-100kg Body weight 12.2kg Maximum speed ≤25km/h Theoretical endurance 15-30km Maximum climbing 10°-15° Motor parameters 250w/36v-350w/36v Charger output voltage Charger input current... -
Page 15: Daily Maintenance
6 Daily maintenance 6.1 Maintenance precautions: -Make sure that the charger and charging line of the electric scooter are disconnected, and that the electric scooter is turned off. -Wipe the shell with a soft cloth to clean the electric scooter. Do not add too much lubricating oil to bearing maintenance. -
Page 16: Legal Information
EU legislation, limiting the use of hazardous substances in electrical and electronic equipment. Company name: WINDGOO Technology S.L Postal address: Avenue of Castell de Barbera, number 21-27. Nave2. Industrial polygon Santiga.Spain... -
Page 17: Warranty Card
8 Warranty card Month Year Gender User name Correspondence Address Phone number Postcode Purchase address Purchase price Sales order number Body number Product name and specification Dealer signature User signature Please keep the warranty card as the after-sale certificate. For non-human damages and malfunctions, after-sales service is provided in accordance with the following terms: 1.
