Summary of Contents for Radiall R280 Series
-
Page 2: Table Of Contents
PCB cable terminals CONTENTS PAGE Straight PCB cable terminals..................4 Right angle PCB cable terminals................5 45° angle PCB cable terminals ................5 Panel drilling ......................6 Assembly instructions ..................7-10 17-3... -
Page 3: Straight Pcb Cable Terminals
PCB cable terminals STRAIGHT PCB CABLE TERMINALS Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Dimensions (mm) Assembly Panel Cable group Part number Fig. Imp. (Ω) Finish Note instructions drilling • R280 221 000 10.50 3.20 2.70 1.45 2 pins / solder Gold R280 280 000... -

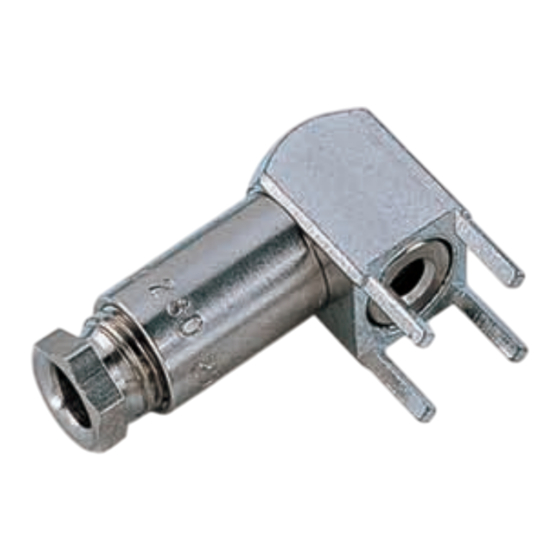

Page 4: Right Angle Pcb Cable Terminals
PCB cable terminals RIGHT ANGLE PCB CABLE TERMINALS Fig. 1 Fig. 2 Fig. 3 Dimensions (mm) Assembly Panel Cable group Part number Fig. Imp. (Ω) Finish Note instructions drilling 2/50/S R280 219 000 2.10 1.45 Gold • 2.6/50/D R280 220 200 10.70 2.40 2 pins / solder... -
Page 5: Panel Drilling
PCB cable terminals PANEL DRILLING 17-6... -
Page 6: Assembly Instructions
PCB cable terminals ASSEMBLY INSTRUCTIONS M 01 STRIPPING DIMENSIONS Stripping length (mm) Part Number Crimping tool R280 280 000 R280 280 200 R280 280 020 R280 280 220 3.25 R280 280 120 R280 280 100 11.2 R282 211 000 or R282 293 000 + R280 282 000 2.67 dies R282 235 003 (M22520/5-03) - Page 7 PCB cable terminals ASSEMBLY INSTRUCTIONS M 02 STRIPPING DIMENSIONS We recommend a thermal preconditionning cable Stripping length (mm) Part Number Assembly jig Positioner R280 287 100 R282 740 020 R282 863 000 R280 287 200 Cable stripping. Solder on the cable. Let the assembly cool down before removing it from the jig.
- Page 8 PCB cable terminals ASSEMBLY INSTRUCTIONS M 03 STRIPPING DIMENSIONS Stripping length (mm) Part number R280 219 200 R280 220 008 R280 220 200 Strip the cable. Indroduce cable into the connector body until contact with it. Solder braid. Solder cable core. 17-9...
- Page 9 PCB cable terminals ASSEMBLY INSTRUCTIONS M 04 STRIPPING DIMENSIONS Stripping length (mm) Part number R280 221 000 10.5 R280 222 000 Strip the cable. Indroduce cable into the connector body until contact with it. According to F direction. Solder the braid on the body. 17-10...
