- Page 1 Rehab Console System Operating Guide info@medxhealth.com www.medxhealth.com...
-
Page 3: Table Of Contents
Caution................... 8 iii) Setup..................8 System Orientation ................9 MedX Laser Console .............. 9 MedX Rehab Tethered Laser accessory ......11 iii) MedX SLD Light Cluster accessory ........12 Support Materials ................12 Operating Instructions ................ 13 User Maintenance ................16 Ongoing Maintenance ............ -
Page 5: Foreword
Foreword Congratulations on your purchase of a MedX Rehab Console System. MedX takes pride in its product lines and the service it provides to its customers. This Guide is written for the owners and operators of the MedX Rehab Console System. It contains general instructions for operation, warnings, precautionary practices and maintenance procedures. -
Page 6: Product Description

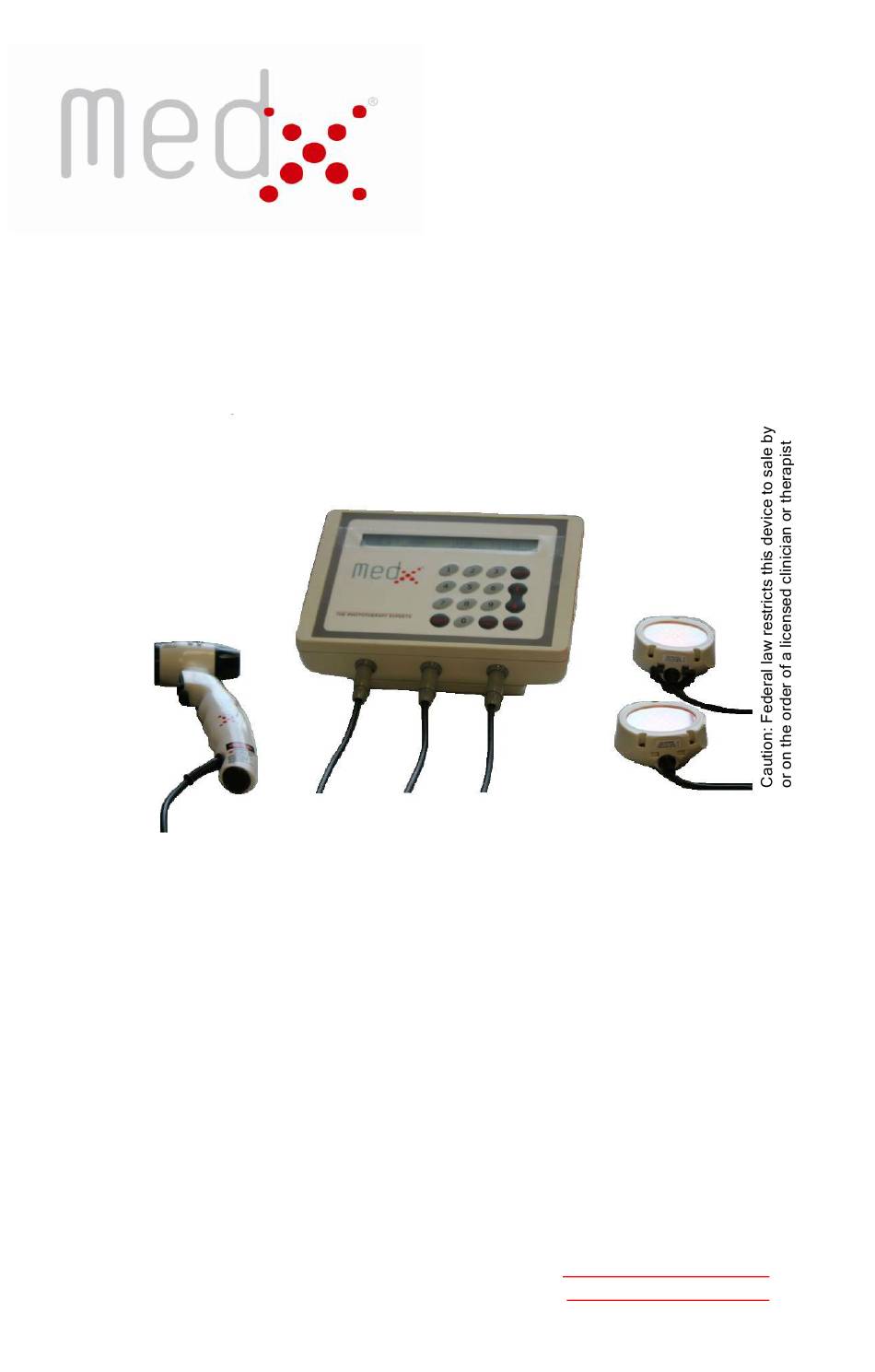

MedX SLD Light Cluster accessory offers SLD light therapy for broader applications. This accessory can be strapped to the body for “hands-free”, unattended treatment. Figure 1 – MedX MBM1100N Console, Rehab Laser and two SLD Clusters Rehab Console System Operating Guide (760-0188-0001) -
Page 7: Package Contents
LLLT and SLD therapy. (See references in the MedX Treatment Guide.) i) Caution The MedX Rehab Tethered Laser (LCT450) is a Class IIIb laser device. Therefore, the following recommendations should be adhered to: ... -
Page 8: Ii) Labels
Labels The following danger labels are required by the FDA for Class IIIb laser products and affixed to all MedX Lasers. The label warns users of the near-infrared laser radiation emitted by the device. The label is located at the lower end of the handle – see Figures 2 and 3 bellow. -
Page 9: Iii) Warning
MedX accessories should be operated by a healthcare professional or trained healthcare delegate. When the MedX Laser Console is not in use, remove the key to prevent unauthorized operation. Use of controls or adjustments or performance or procedures other than those specified herein may result in hazardous radiation exposure. -
Page 10: Indications And Contraindications
Indications and Contraindications The MedX Rehab Console System is used for the treatment of various medical conditions. The non-invasive, low energy devices emit photons, which are absorbed to produce cellular effects and biological changes. The photons temporarily increase microcirculation, resulting in... -
Page 11: Initial Setup Instructions
Once you hear the click sound, using a standard slot-type screwdriver, turn the two screws from the vertical (open) position to the horizontal (see Figure 6) (secured) position in order to lock the latches in place Figure 6 – Securing the latches Rehab Console System Operating Guide (760-0188-0001) -
Page 12: Ii) Caution
Plug accessories into ports at the front of the Console, . (left port on front) starting with Port 1 The MedX Rehab Laser accessory must be plugged into Port 1 ONLY in order to operate. Rehab Console System Operating Guide (760-0188-0001) -
Page 13: System Orientation
System Orientation i) MedX Rehab Console (MBM1100N) The MedX Console is turned ON and OFF by using the removable key in the keyhole on the back panel. Also on the back panel is the POWER (See Figure 7) port. Figure 7 – Rehab Console – Back Panel View... - Page 14 This system verifies that the accessories are operational. A warning message indicates if the accessory is unplugged or fails. Always plug the Handheld Laser accessory into Port 1. Liquid Crystal Display Rehab Console System Operating Guide (760-0188-0001)
-
Page 15: Ii) Medx Rehab Tethered Laser Accessory
Visible LED to indicate treatment area center. Guide LED Three near infrared laser diodes. Laser Diodes Beam Laser cap to be utilized to cover the radiant Attenuator surface when the device is not in use. Rehab Console System Operating Guide (760-0188-0001) -
Page 16: Iii) Medx Sld Light Cluster Accessory
An outline of highly effective protocols for the delivery of low level laser and SLD treatments for many muscloskeletal conditions can be found in the MedX Treatment Guide which is available with the MedX Rehab Console System. The MedX Treatment Guide provides detailed treatment parameters including dosage and placement recommendations for the laser and SLD clusters. -
Page 17: Operating Instructions
The Console will automatically detect which accessories are plugged in. If using a MedX Laser accessory, plug ONLY into Port 1. The MedX SLD accessory can be plugged into any port. Select Accessory Ports to be Use 1:Port 1 ... - Page 18 (Continued) If the category number is known, enter the Console setting code found in the MedX Treatment Guide. Then press the start key. If using the preprogrammed codes in the Console and category number is not known, use the arrow keys to scroll through the category list.
- Page 19 Press “menu” to Exit or Retrigger Port 1 Remove accessories from patient and turn the MedX Console OFF by turning the key on the back of the unit. Remove the key if the MedX Console is not in use or unattended.
-
Page 20: User Maintenance
User Maintenance To clean the MedX Rehab Console, first turn off system, unplug power cord and wipe Console with a damp cloth. Do not use abrasive cleaners. A small amount of mild household detergent may be used, if desired. Between uses, wipe radiant surface of accessories with a clean, damp cloth with a hospital grade germicide. -
Page 21: Technical Specifications
+/- 1 second Please Note : Technical Specifications may vary from current description due to changes in approved vendor product availability or other circumstances. Please contact the MedX Technical Support Department if you have questions. Rehab Console System Operating Guide (760-0188-0001) -
Page 22: Ii) Medx Rehab Tethered Laser (Lct450)
0.00881 cm² single laser spot Power Monitoring Continuous with automatic shutdown if optical power is + 10%; -20% Beam Divergence 17°x8° typical (15°x6° minimum) Nominal Ocular Hazard 226 mm (worst case) Distance (NOHD) 193 mm (typical) Rehab Console System Operating Guide (760-0188-0001) -
Page 23: Iii) Medx Sld Light Cluster (Mct1001)
1000 mW ± 20% Power (Continuous Mode) Irradiance 44.4 mW/cm² ± 20% Treatment Area at Skin 22.48 cm² Treatment Time 1.0 Joules/cm² in 22.5 seconds Nominal Ocular Hazard Not applicable for these diodes. Distance (NOHD) Rehab Console System Operating Guide (760-0188-0001) -
Page 24: Warranty
To participate in warranty coverage, this Product’s warranty registration card (included with Product) must be filled out and returned to MedX Health Corp., by the original owner within 15 business days of purchase. -
Page 25: Service Contact Information
This warranty grants the owner specific legal rights. The owner may have other rights, which vary from state to state or other jurisdictions. MedX does not authorize any person or representative to create for it any other obligation or liability in connection with the sale of the Product. -
Page 26: Revisions
Revisions Table A.1. Revisions Revision No Revision Description Date Revision Dec.1, 2015 First draft released 1511 Added Revisions Table Updated warranty period Revision 1.01 May 5/2017 Removed reference to LCT201 and MCT504 accessories Rehab Console System Operating Guide (760-0188-0001) - Page 27 All rights reserved. Without limiting the rights under copyright law, no part of this document may be reproduced, stored in or introduced into a retrieval system, or transmitted in any way without the express written permission of the manufacturer. Rehab Console System Operating Guide (760-0188-0001)
- Page 28 THIS PAGE WAS INTENTIONALLY LEFT BLANK Rehab Console System Operating Guide (760-0188-0001)
- Page 29 THIS PAGE WAS INTENTIONALLY LEFT BLANK Rehab Console System Operating Guide (760-0188-0001)
- Page 30 THIS PAGE WAS INTENTIONALLY LEFT BLANK Rehab Console System Operating Guide (760-0188-0001)
- Page 31 Rehab Console System Operating Guide (760-0188-0001)
- Page 32 MedX Health Corp. 1495 Bonhill Road, Unit 1 Mississauga, Ontario Canada L5T 1M2 Phone: 905-670-4428 Toll Free: 1-888-363-3112 (CAN/USA only) E-mail: info@medxhealth.com www.medxhealth.com Copyright MedX Health Corp. 2014 Rehab Console System Operating Guide 760-0188-0001 Version 1.01 Rehab Console System Operating Guide (760-0188-0001)
