Summary of Contents for 4U CHECK4U KWS

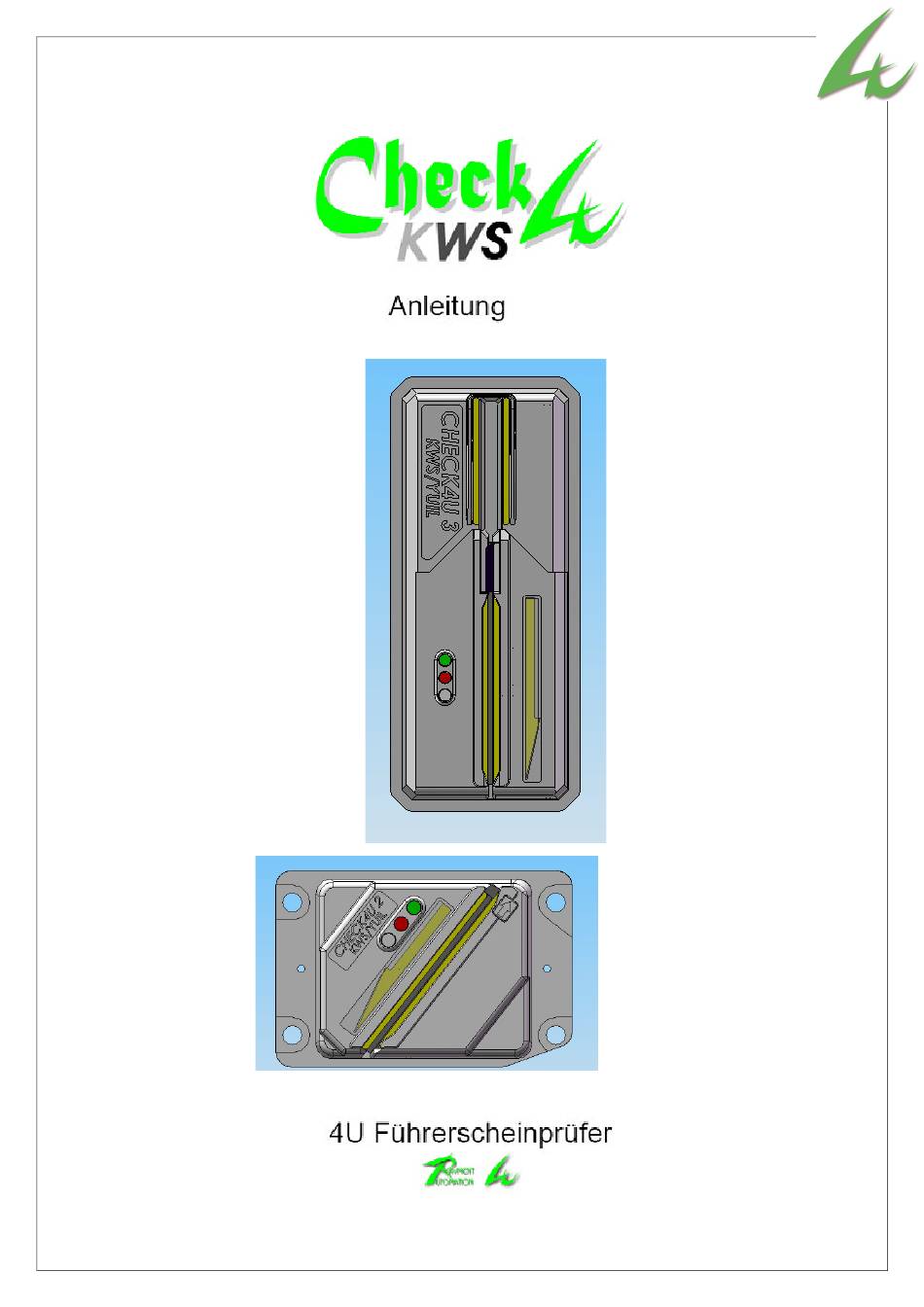

- Page 1 2008.7 (V.1.2)
- Page 2 Introduction of the Product The product can be used as certifying equipment in such cases of cigarette vending machines, alcohol vending machines, restricted entrances and more, for this equipment certifies the age limits by comparing the present time with the decoded birth age, from the processes of scanning and recognizing the authenticity discrimination such from driver’s licenses, ID cards or passports.
- Page 3 Specification time of less than 2.2 second Counterfeit :less than 0.5sec. recognition and discrimination Using temperature :-15 to +60°C temperature relative humidity:5~95% non-condensing Store temperature :-40 to +80°C temperature relative humidity:5~100% non-condensing Indicating LED -green : normal ID - normally yellow LED(6 second) -red : abnormal ID Interface...
- Page 4 -CHECK4U 3(DL,ID Card, Passport) (front) (rear) (MDB Board) -CHECK4U 2(DL,ID Card)
- Page 5 (front) (rear) (MDB Board)
- Page 6 Connecting spec. 様 (MDB Board) SW10 DIP Switch SW2, SW10 3,5,7 Power ON Always ON Wake up mode OFF ● Buzzer ON OFF ● Buzzer OFF Flashing ON OFF ● Flashing OFF High security High acceptance OFF● Debug mode Nomal mode OFF●...
- Page 7 Reserved ● ●:Standard Status 2:C: 24P Connector (CHECK4U3 to MDB Board) 3:C: 6P Connector (MDB Board to AUTOMAT) Wake up GND(Tx,Rx) 6P Connector (MDB Board to TERMINAL) Wake up GND(Tx,Rx) 5:C: 4P Connector (debug port )
- Page 8 6:C: 6P Connector (program down load ) Installing method 1. Attach the Installation sheet(Removal tape) on the place where it is to be installed Installation sheet 2. Drill a hole on where the Installation sheet(Removal tape) holes are to be place...
- Page 9 Making 4 points holes (use φ7.5 drill) Making large hole(φ14 ) * Make a hold using a drill cutter. Take Installation sheet(Removal tape) and put the 24P cable from rear and CHECK4U 3 into the hole. 。 Rolled cable like above and put large hole from rear...
- Page 10 Connecting 24P cable 24 PIN Cable put the CHECK4U 3 into the hole. 4. Open the front door of the vending machine and fasten the 4 M6Nuts. M6 nut 5. Install the MDB Board.
- Page 11 MDB Board unit 6. Connect the cable (Refer to the STICKER on the connector to connect) CHECK4U 3...
- Page 12 TERMINAL Using Methods After inserting the ID card, swipe it towards the same direction as below...
- Page 13 1) It will make the beep sound and the greed led will flicker when the card is inserted. Green LED...
- Page 14 2) Swipe the card downwards *After it is swiped down, there will be another beep sound, and the green and red LED will flicker. If the card is correct, the green LED will light on with the sound of two beeps, and if not, the red LED will light on with the sound of three beeps.
- Page 15 *Sometimes, even if it is an original product, the red led might be on. In this case, wipe the ID card surface and insert it again. If the card is damaged, there can be an error. Cleaning Methods Do not disassemble the equipment but use the cleaning card when cleaning the inside.
- Page 16 The cleaning should be done when the procuring amount has decreased. * If the procuring amount do not increase even after the cleaning process, it should be disassembled and be checked for any dirt. Size of product...
