Summary of Contents for SoonMark M8

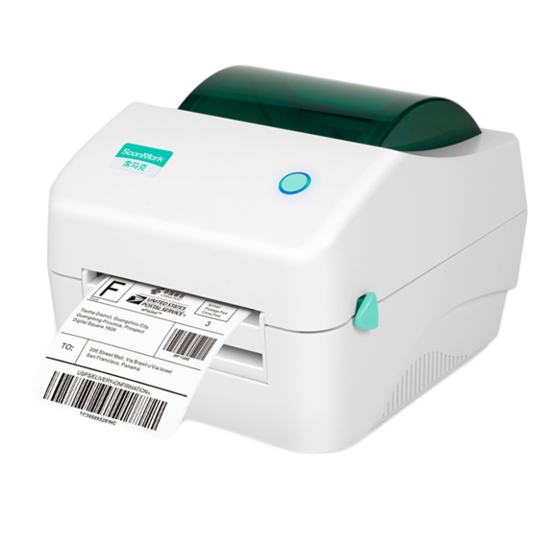

- Page 1 User manual of Direct Thermal Barcode Printer Brand: SoonMark Model: M8 Paper size: 100mm x 150mm...
-
Page 2: Table Of Contents
CONTENT Instructions: Clicking at each topic below will bring you to the page directly. A) Equipment checklist B) Printer parts C) Printer setting D) Download & save the driver file E) Installation F) Size setting G) Printing the eAWB... -
Page 3: A) Equipment Checklist
A) Equipment checklist 1) Adapter + Power Jack Adapter 2) USB Printer Cable 3) Operation Manual 4) Driver Disk 5) Power Cord 2) USB Printer Cable 3) Operation Manual 1) Adapter + Power Jack Adapter 5) Power Cord 4) Driver Disk... - Page 4 A) Equipment checklist Insert the label roll using the ‘Roll Mount’. Label Spindle Core Adapter Label Roll Roll Mount Core Adapter will be placed at both sides to secure the label roll while printing. Notes: Make sure all pieces of equipment are assembled and in good condition.
-
Page 5: B) Printer Parts
B) Printer parts Front surface Clear Window is to view Feed the label roll Button inside the is used for printer. calibration process. The Open button for the Top Cover Back surface Power Switch I - On O - Off SD Card Power Jack Slot... -
Page 6: C) Printer Setting
C) Printer setting Step 1 Please connect the ‘USB’ to the PC/Laptop and plugin the ‘Power Cord’ into the socket. Step 2 The ‘USB Printer Cable’ and ‘Power Jack Adapter’ need to connect with the printer. Then, turn on the switch button, and it will beep once. -
Page 7: D) Download & Save The Driver File
D) Download & save the driver file Step 1 Click here: www.skynet.com.my/labelprinter and select the ‘Driver’ as shown. Download Driver User Manual (English) Step 2 This driver will download as a zip file. Kindly save this zip file at any folder inside your PC/Laptop. Step 3 To unzip the file, right-click at the zip file and choose ‘Extract Here’. -
Page 8: E) Installation
E) Installation Step 1 After unzipping the file, double click at ‘Driver (for Win7 Win8 Win10)’ to install the printer driver. Step 2 Kindly tick ‘I accept the terms in the license agreement’ and click on the ‘Next’ button. - Page 9 E) Installation Step 3 Click the ‘Next’ button. Then, click at the ‘Finish’ button.
- Page 10 E) Installation Step 4 This ‘Shield icon’ will blink at the PC/Laptop taskbar. Kindly click at the icon to continue the installation. Then, click on the ‘Next’ button.
- Page 11 Click on the ‘Next’ button. Use the default name or rename the file for easier reference. • Rename the Printer as ‘SMK-M8’. • ➢ SMK referring to SoonMark. ➢ M8 referring the Model’s name. Once done, click on the ‘Next’ button. •...
- Page 12 E) Installation Step 6 Click on the ‘Finish’ button. The driver has been installed successfully! Click ‘Close’.
-
Page 13: F) Size Setting
F) Size setting Step 1 Go to the Windows ‘Setting' and click on the ‘Devices’. Step 2 Click at the ‘Printer & Scanners’. • Select the printer that has already been renamed as • ‘SMK-M8’. Click on the ‘Manage’ button. •... - Page 14 Step 3 Click at the ‘Printing preferences’. Step 4 Select the size ‘4 x 6’ (4.00 in x 6.00 in) for the • A6 sticker. Click on the ‘Apply’ button to apply the changes and then • click ‘OK’.
-
Page 15: G) Printing The Eawb
G) Print eAWB Once everything is completed, the printer is to be used. The last process is to print your eAWB. Step 1 Select the ‘SMK-M8’ printer. Step 2 Select ‘Fit to Paper’ for ‘Scale’ and click ‘Print’. - Page 16 Thank You...
