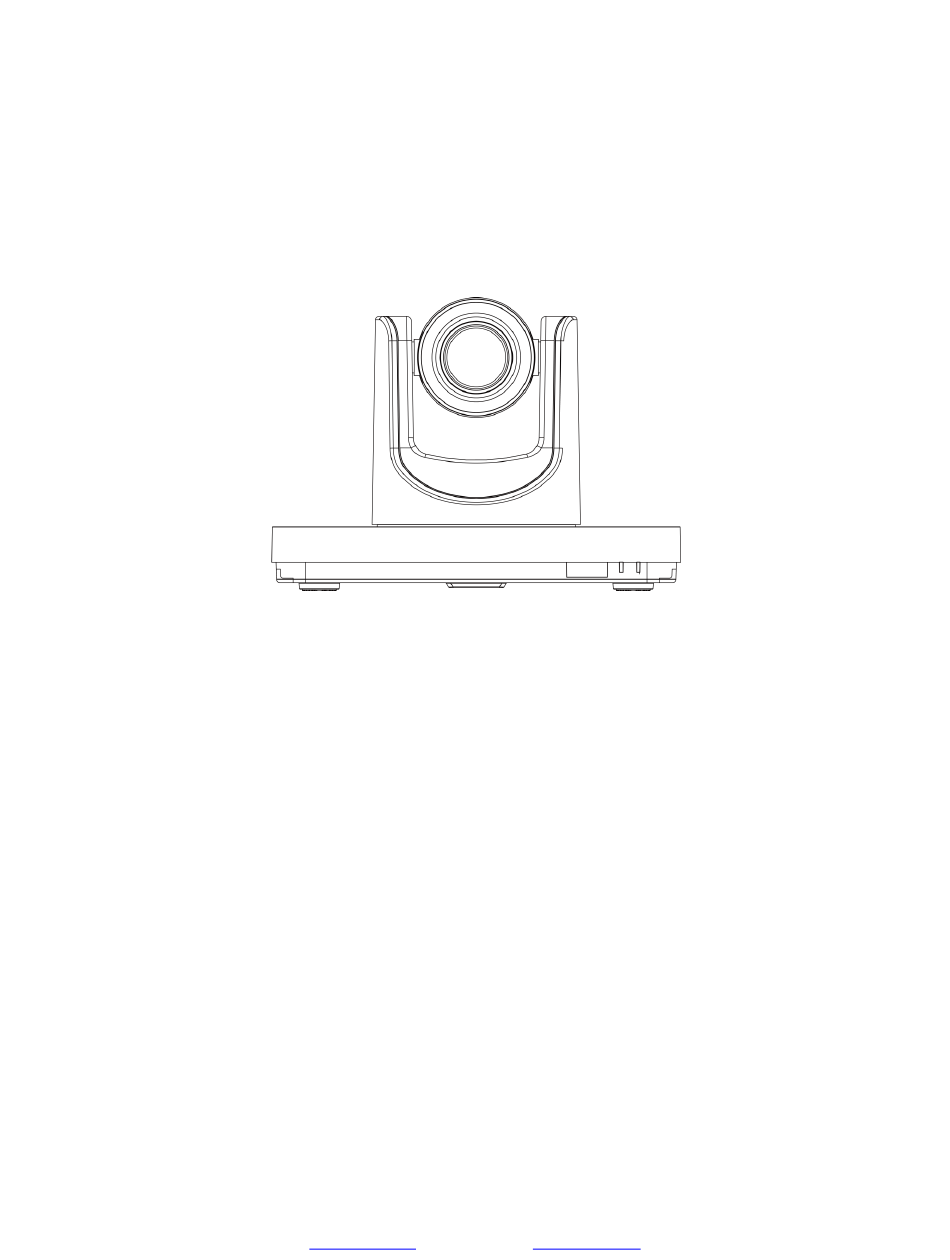

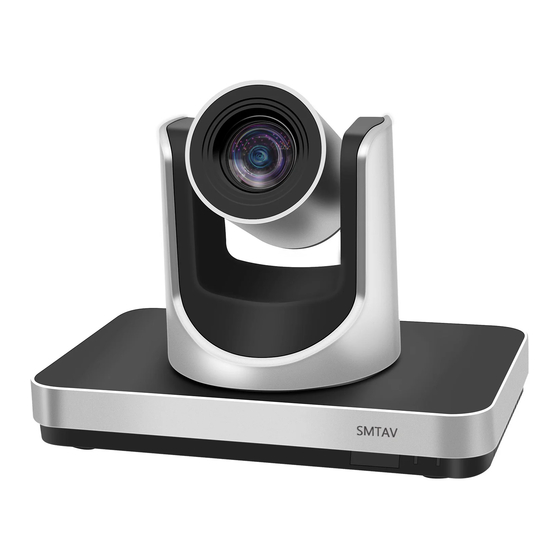

  • Page 1 (English) Copyright Notice The entire contents of this manual, whose copyright belongs to SMTAV Corporation, may not be cloned, copied or translated in any way without the explicit permission of the company. Product specifications and information referred to in this document are for reference only and as such are subject to updating at any time without prior notice www.smtav.com...
  • Page 2 SMTAV Preface Thank you for using the HD Professional Video Conferencing Camera. This manual introduces the function, installation and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product can only be used in the specified conditions in order to avoid any damage to the camera: •...

  • Page 3: Table Of Contents

    SMTAV Table of Contents Supplied Accessories ..........................1 Notes ............................... 1 Quick Start .............................. 2 Features ..............................4 Product Specifications..........................5 Back of the Camera ..........................7 IR Remote Controller ..........................9 Using the IR Remote Controller ......................11 Dimensional Drawings (mm) ........................8 RS-232 Interface ............................

  • Page 4: Supplied Accessories

    SMTAV Supplied Accessories When you unpack your camera, check that all the supplied accessories are included: Camera ............1PCS AC power adaptor ........... 1PCS Power cord ............1PCS RS232 cable ............1PCS Remote control ..........1PCS User manual ............1PCS Notes ⚫...

  • Page 5: Quick Start

    SMTAV Quick Start Step 1. Please check that all connections are correct before powering on the camera. Step 2. Set the bottom switches Set both switch1 and switch2 to "OFF": the "Normal Working Mode". SW-1 SW-2 Modes Normal Working Mode...
  • Page 6 SMTAV Step 3. Set the system select switch for your desired video output resolution and frame rate. For many applications, setting 0 (1080p-60) will provide the best overall performance. For highest possible resolution, use setting 0 (1080p-60) or 6 (1080p-30), however your actual realized frame rate may be limited to a lower value than 60 fps by your software and/or network connection.

  • Page 7: Features

    SMTAV Features • Image Sensor Panasonic 1/2.7”, 2.07 million effective pixels, HD CMOS sensor Olympus high quality telephoto lens supporting 30X optical zoom and optional 8X digital zoom Full HD 1920x1080p resolution up to 60 frames per second 2D & 3D noise reduction with our latest “low noise CMOS sensor”...

  • Page 8: Product Specifications

    SMTAV Product Specifications Camera 1080p-60/50/30/25/59.94*/29.97*, 1080i-60/50/59.94*, 720p-60/50/59.94* CVBS: 576i, 480i Video System *Broadcast frame rates are considered BETA features and may not be supported by all platforms Please note: The camera is unable to perform 1080p60 over IP stream & SDI/HDMI simultaneously Sensor 1/2.7", CMOS, Effective Pixel: 2.07M...
  • Page 9 SMTAV 1 x RJ45 IP Network streaming 10/100/1000 Ethernet port 1 x CVBS: RCA jack, 1Vp-p, 75Ω SD Output 1 x RJ45: 10/100/1000M Adaptive Ethernet ports (Support POE) Network Interface 1-ch 3.5mm audio interface, Line In (IP Network stream only) (Unbalanced stereo) Audio Input 1 x USB2.0: type A jack...

  • Page 10: Back Of The Camera

    SMTAV Back of the Camera 1. System select dial (resolution) 7. HD-SDI (Serial Digital Video Output) 2. RS232 OUT jack (pass through for daisy chain) 8. HDMI (Digital Video Output) 3. RS232 IN jack 9. USB 2.0 (*no video out* Future - USB Storage) 4.

  • Page 11: Dimensional Drawings (Mm)

    SMTAV Dimensional Drawings (mm) Page 8 CONTACT US: info@smtav.com www.smtav.com...

  • Page 12: Ir Remote Controller

    SMTAV IR Remote Controller 1. Standby Button Press this button to enter standby mode. Press it again to enter normal mode. NOTE: Power consumption in standby mode is approximately half of the normal mode. 2. Position Buttons To set preset or call preset.
  • Page 13 SMTAV 12. Multiple Function Buttons Function 1. Set camera IR address Press 3 keys contiguously can set camera IR address as follow: [*] + [#] + [F1]: Address 1 [*] + [#] + [F2]: Address 2 [*] + [#] + [F3]: Address 3 [*] + [#] + [F4]: Address 4 Function 2.

  • Page 14: Using The Ir Remote Controller

    SMTAV 2. Zoom Control Using the IR Remote Controller When the camera is operational, you can use the remote controller to perform panning, tilting, zooming and focusing, as well as store and call back preset positions. Button Instructions： 1. In these instructions, ‘press the button’ means to press and release.
  • Page 15 SMTAV 4. BACKLIGHT. L/R SET and P/T RST Controls 6. Presets - Setting and Clearing Reverse Pan controls direction: Press and hold [L/R SET] button while pressing [1] aka [STD] button for normal pan controls. Press and hold [L/R SET] button while pressing [2] aka [REV] button for reversed pan controls.
  • Page 16 SMTAV 7. Recalling Presets 9. Camera IR Address Set Press 3 buttons in the sequence shown below to set/change the camera’s IR address. This allows up to 4 cameras to be controlled from the same IR remote control. Be sure that only one camera is picking up the IR signal when you perform this function.

  • Page 17: Rs-232 Interface

    SMTAV RS-232 Interface Camera PC/Controller DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI For Control Daisy Chain Camera Camera Mini DIN Function 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND...

  • Page 18: Visca Network Configuration

    SMTAV VISCA Network Configuration Serial Communication Control In default working mode, the camera is able to connect to a VISCA controller with an RS232C serial interface. ➢ RS232 Communication Control The camera can be controlled via RS232. The parameters of RS232C are as follows: Baud rate: 2400, 4800, 9600 or 38400 bps.

  • Page 19: Command List

    SMTAV Command List Part 1: Camera-Issued Messages ACK/Completion Message Function Command Command Packet Comments z0 4y FF Returned when the command is accepted. ACK/Completion (y: Socket No.) Messages z0 5y FF Completion Returned when the command has been executed. (y: Socket No.)
  • Page 20 SMTAV Part 2: VISCA Command List Command Function Command Packet Comments 8x 01 04 00 02 FF CAM_Power Power ON/OFF 8x 01 04 00 03 FF Stop 8x 01 04 07 00 FF Tele (Standard) 8x 01 04 07 02 FF...
  • Page 21 SMTAV Down 8x 01 04 20 03 FF pq: Color Temperature position 0x00: 2500K ~ Direct 8x 01 04 20 0p 0q FF 0x37: 8000K Full Auto 8x 01 04 39 00 FF Automatic Exposure mode Manual 8x 01 04 39 03 FF...
  • Page 22 SMTAV CAM_ColorGain Diret 8x 01 04 49 00 00 00 0p FF p: Color Gain setting 0h (60%) to Eh (200%) 8x 01 06 01 VV WW 03 01 FF Down 8x 01 06 01 VV WW 03 02 FF...
  • Page 23 SMTAV Enter 8x 01 06 06 05 FF Return 8x 01 06 06 04 FF High 8x 0B 01 01 FF Medium 8x 0B 01 02 FF CAM_NDIMode 8x 0B 01 03 FF 8x 0B 01 04 FF CAM_MulticastMode Multicast Mode...
  • Page 24 SMTAV y0 50 02 FF CAM_ExpCompMod 8x 09 04 3E FF eInq y0 50 03 FF CAM_ExpCompPosI 8x 09 04 4E FF y0 50 00 00 0p 0q FF pq: ExpComp Position CAM_BacklightMode y0 50 02 FF 8x 09 04 33 FF...
  • Page 25 SMTAV y0 50 01 FF Center y0 50 02 FF Bottom p: Color Hue setting 0h (− 14 degrees) to Eh ( +14 CAM_ColorHueInq 8x 09 04 4F FF y0 50 00 00 00 0p FF degrees y0 50 00 FF...
  • Page 26 SMTAV Part 4: VISCA over IP Command List Command Function Command Packet Comments 81 01 04 00 02 FF CAM_Power Power ON/OFF 81 01 04 00 03 FF Stop 81 01 04 07 00 FF Tele (Standard) 81 01 04 07 02 FF...
  • Page 27 SMTAV Down 81 01 04 20 03 FF pq: Color Temperature position 0x00: 2500K ~ Direct 81 01 04 20 0p 0q FF 0x37: 8000K Full Auto 81 01 04 39 00 FF Automatic Exposure mode Manual 81 01 04 39 03 FF...
  • Page 28 SMTAV CAM_ColorGain Direct 81 01 04 49 00 00 00 0p FF p: Color Gain setting 0h (60%) to Eh (200%) 81 01 06 01 VV WW 03 01 FF Down 81 01 06 01 VV WW 03 02 FF...
  • Page 29 SMTAV Enter 81 01 06 06 05 FF Return 81 01 06 06 04 FF High 81 0B 01 01 FF Medium 81 0B 01 02 FF CAM_NDIMode 81 0B 01 03 FF 81 0B 01 04 FF CAM_MulticastMode Multicast Mode...
  • Page 30 SMTAV 90 50 02 FF CAM_ExpCompMod 81 09 04 3E FF eInq 90 50 03 FF CAM_ExpCompPosI 81 09 04 4E FF 90 50 00 00 0p 0q FF pq: ExpComp Position CAM_BacklightMode 90 50 02 FF 81 09 04 33 FF...
  • Page 31 SMTAV 90 50 01 FF Center 90 50 02 FF Bottom p: Color Hue setting 0h (− 14 degrees) to Eh ( +14 CAM_ColorHueInq 81 09 04 4F FF 90 50 00 00 00 0p FF degrees 90 50 00 FF...
  • Page 32 SMTAV Part 7: Pelco-P Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04...

  • Page 33: Menu Settings

    SMTAV EXPOSURE Menu Settings Mode Auto 1. MENU ExpCompMode Press the [MENU] button to display the On Screen Display Backlight menu on the normal screen, using the arrow button to move Gain Limit the cursor to the item to be set. Press the [HOME] button to...
  • Page 34 SMTAV 3. COLOR 4. IMAGE Move the main menu cursor to [COLOR], and press the Move the main menu cursor to [IMAGE], and press the [HOME] key to enter the color page, as shown in the [HOME] key to enter the image page, as shown in the following figure.
  • Page 35 SMTAV P/T/Z NOISE REDUCTION SpeedByZoom NR2D-Level 1 AF-Zone Center NR3D-Level 3 AF-Sense High L/R Set Select Item Display Info Change Value Image Freeze [Menu] Back Digital Zoom NR2D Level: 2D noise reduction, optional items: Close, Call Preset Speed Auto, 1 ~ 5.
  • Page 36 SMTAV 9. RESTORE DEFAULT Auto Focus L: Lock focus in current position, optional items: Off, On Move the main menu cursor to [RESTORE DEFAULT], and press the [HOME] key to enter the restore default page, as OSD TimeOut: Auto close OSD, optional items: 2.5min, shown in the following figure.

  • Page 37: Network Connection

    SMTAV Network Connection 1. Operating Environment Operating System: Windows 2000/2003/XP/Vista/7/8.1/10 Network Protocol: TCP/IP Client PC: P4 / 128M RAM / 40GHD / support for scaled graphics card, support for DirectX8.0 or more advanced version. 2. Equipment Installation 1) Connect camera to your network via a CAT5 or CAT6 patch cable or directly to your PC via a CAT5 or CAT6 cross over cable.

  • Page 38: Setting Up A Network Video Stream

    SMTAV Setting up a Network Video Stream 1. The first thing you are going to want to do to get your camera up and streaming on your network is to connect your camera to power, an active network port on your network, and finally, power on the camera.
  • Page 39 SMTAV 6. After assigning an IP address to the camera, you can reach the Web Interface by typing in the camera’s IP address into a web browser. To log in, type in “admin” into the username and password fields. 7. From the Web Interface, you can control the camera using the arrows on the left side. You can also adjust many of your camera’s settings via this IP interface.

  • Page 40: Additional Network Info

    SMTAV Additional Network Info Discovering your Network IP range You can discover the IP range of your network by using the Command Prompt for Windows, or the Terminal app for Macs and following the steps below. Windows 1. Type “CMD” into the search bar in the start menu.

  • Page 41: Camera Web Interface

    SMTAV Camera Web Interface The Web Interface allows you to control the camera, view the video feed, and adjust many of the camera’s settings. Menu The Menu allows you to traverse the Web Interface. By default, the “Live” option is selected.

  • Page 42: Video

    SMTAV Video 720p120: Allows camera to output 720p at 120 FPS via the IP Network Stream. Set to ‘On’ or ‘Off’. (Note: Setting to ‘On’ will override and lockout other video settings). Video Format: Supports 50Hz (PAL), 60Hz (NTSC), & Dial Priority formats.

  • Page 43: Image

    SMTAV Image Brightness: Brightness slider. Default: 7 Saturation: Saturation slider. Default: 4 Contrast: Contrast slider. Default 10 Sharpness: Sharpness slider. Default: 3 Hue: Hue slider. Default: 7 Flip & Mirror: Check the Flip and/or Mirror buttons to rotate the image accordingly.

  • Page 44: Network

    SMTAV Network LAN Settings: The Lan Settings section allows you to adjust the IP parameters of the camera. The default IP address of the camera is 192.168.100.99. You cannot change the MAC address. IP Configuration Type: Fixed IP Address (Static) & Dynamic IP Address (DHCP).
  • Page 45 SMTAV DNS Address: Network Domain Name Server address. MAC Address: The camera’s MAC address. Apply & Cancel Buttons: Apply or cancel the changes made to the LAN Settings section. Port Settings: The Port Settings section allows you to adjust the network ports of the camera.

  • Page 46: Information

    SMTAV Main Time Show: Enable / Disable Main Time Position: Main Time position Sub Time Show: Enable / Disable Sub Time Position: Sub Time position Apply & Cancel Buttons: Apply or cancel the changes made to the Network Settings section.
  • Page 47 SMTAV Focus Control http://[Camera IP]/cgi-bin/ptzctrl.cgi?ptzcmd&[Action]&[Focus Speed] [Action]: FOCUSIN, FOCUSOUT, FOCUSSTOP [Focus Speed]: 1 (Slowest) – 7 (Fastest) Focus Lock Control http://[Camera IP]/cgi-bin/param.cgi?ptzcmd&[Action]_mfocus [Action]: LOCK, UNLOCK Preset Control http://[Camera IP]/cgi-bin/ptzctrl.cgi?ptzcmd&[Action]&[Position Number] [Action]: POSSET, POSCALL [Position Number]: 0 – 89 (Range 1), 100 – 254 (Range 2) Home Position Recall http://[Camera IP]/cgi-bin/ptzctrl.cgi?ptzcmd&home...
  • Page 48 SMTAV Direct Zoom Recall Control http://[Camera IP]/cgi-bin/ptzctrl.cgi?ptzcmd&zoomto&[Zoom Speed]&[Zoom Position] [Zoom Speed]: 1 (Slowest) – 7 (Fastest) [Zoom Position]: 0000 (Full wide), 4000 (Full tele) HTTP-CGI – Navigation OSD Menu Control http://[Camera IP]/cgi-bin/param.cgi?navigate_mode&[Mode] [Mode]: OSD (OSD Open), PTZ (OSD Close) OSD Menu Navigation Control http://[Camera IP]/cgi-bin/ptzctrl.cgi?ptzcmd&[Action]...
  • Page 49 SMTAV http://[Camera IP]/cgi-bin/param.cgi?get_media_audio Network Audio Configuration Network http://[Camera IP]/cgi-bin/param.cgi?get_network_conf Network Configuration Information http://[Camera IP]/cgi-bin/param.cgi?get_device_conf Camera Information Serial Number http://[Camera IP]/cgi-bin/param.cgi?get_serial_number Serial Number *Not always accurate Page 46 CONTACT US: info@smtav.com www.smtav.com...

  • Page 50: Photobooth Functionality

    SMTAV Photobooth Functionality Your SMTAV camera can quickly and easily take a series of four (4) still image or video files that are stored on the camera and made accessible with a standard web browser on the same network. Photos You have two (2) options to initiate a series of four (4) still images being captured…...
  • Page 51 SMTAV You can also press the “[F2]” button on your IR remote to initiate a “quick capture” that has, approximately, a four (4) second delay between four (4) ten (10) second videos being captured. To retrieve your series of four (4) videos, you will need to open a standard web browser with network access to the camera and use the following HTTP strings to retrieve the still image files as desired.

  • Page 52: Maintenance And Troubleshooting

    SMTAV Maintenance and Troubleshooting Camera Maintenance • If the camera will not be used for a long time, please turn off the power switch. • Use a soft cloth or lotion-free tissue to clean the camera body. • Use a soft dry lint-free cloth to clean the lens. If the camera is very dirty, clean it with a diluted neutral detergent.
  • Page 53 SMTAV Control • IR remote controller does not control the camera Does one of the 4 “Camera Select” buttons (top row of remote) light up when you press any button on the remote? If not, change the batteries in the remote.
