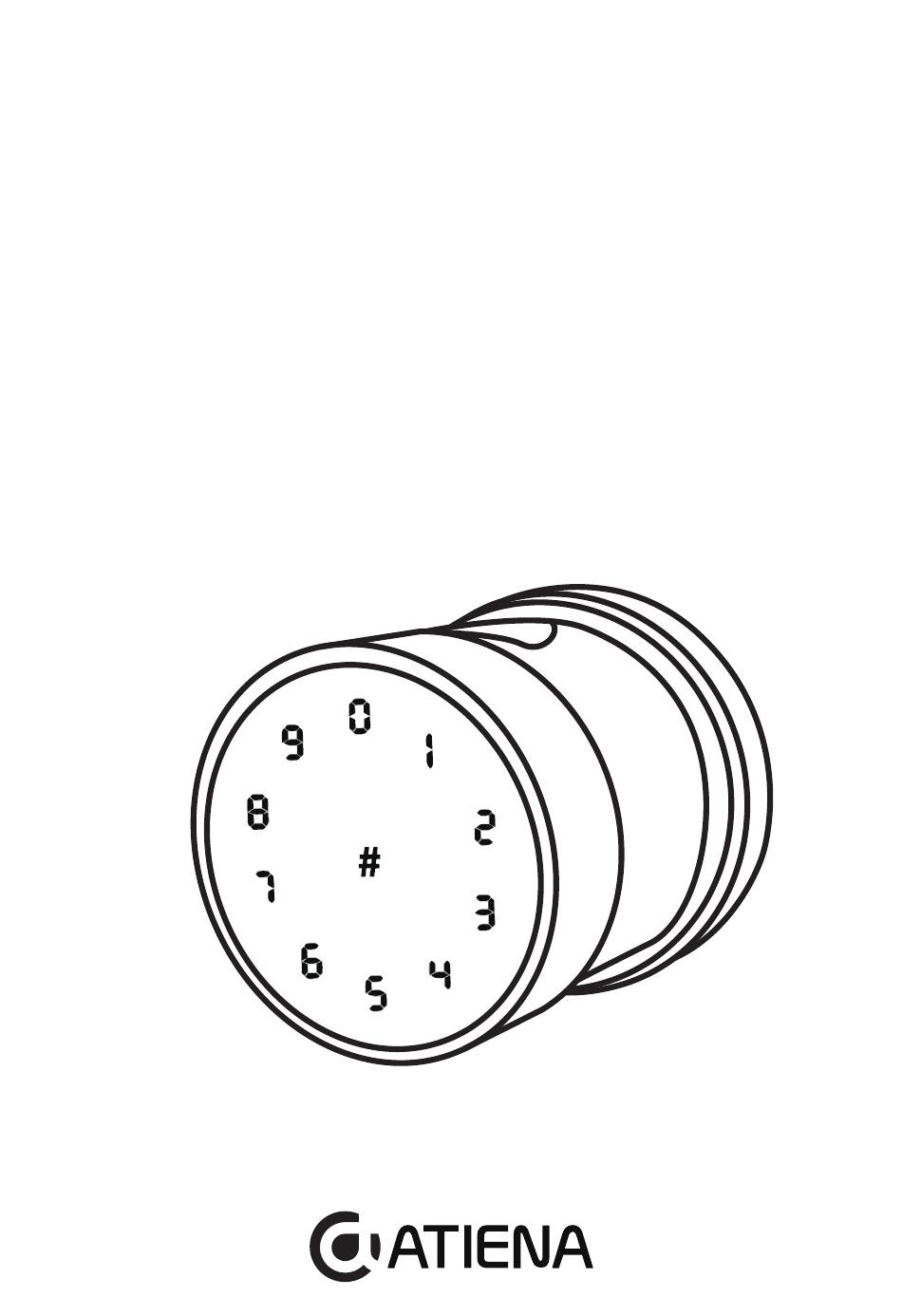

- Page 1 ATIENA L01 Series Installation Guide v1.0...
- Page 2 You can find our instuction video at Youtube,Facebook or our official website: www.atienatech.com Install and test the lock with the doo open to avoid being locked out. Please read all instructional information before contacting customer service. Please contact customer service befor returning the product to the store.
-
Page 3: Included In The Box
Included in the box Keypad Knob Interior Knob Interior Handle Bolt & Strike Plate (Decomposition Diagram) Allen Key Cards www.atienatech.com... - Page 4 Included in the box Screw C 3/4” Set A Set B Screw B X2 Screw A X2 Rod B X2 Rod A X2 www.atienatech.com...
- Page 5 STEP 1 Check Door s Dimension For Door Thickness 1-3/8” Set A 1-3/4” Set B Backset 60mm （2-1/8” ） 54mm （1” ） 25mm www.atienatech.com...
- Page 6 STEP 2 Installing Deadbolt and Strike Plate Screw Make sure outside inside the short side facing outside www.atienatech.com...
- Page 7 STEP 3 Installing Keypad Knob Screw A/B square bar Rod A/B 1.Insert the Square bar, turn the Triangle Mark Point to the “S” outside Mark on the Keypad Knob. 2.Insert the Screw A/B, and then attach Rods A/B. Note: Make sure the logo/fingerprint sensor is facing up.
- Page 8 STEP 4 Installing Interior Knob Remove the Cover of Interior Knob first. Then install the Keypad knob correspondingly, make sure the logo in Interior Knob is facing up, use Allen Key to tighten screws. inside Note I: Make sure the Spring do not stuck inside, espe- cially when...
- Page 9 STEP 5 Installing Batteries & Cover Insert 4 AA Batteries. inside Press and hold the button on the cover, put the cover onto the knob in the correct position, then release your hold on the button , it will latch onto the knob. www.atienatech.com...
- Page 10 STEP 6 Reset and Safe Mode RESET to Factory Setting 1. Turn the keypad Knob anti-clockwise 90 degrees, then hold the button on downside of interior knob for 3 seconds. 2. Put “000” 3 digit code on Keypad to confirm the reset. 3.
-
Page 11: Final Step
Final Step Check the User Guide in www.atienatech.com Download or update the Atiena App free from the App Store or Google Play. NEED HELP? Please contact us: Contact@atienatech.com Visit our website for videos, FAQs and more: www.atienatech.com Begin Your Smart Life...
