RSIalarm videofied SE 650 Installation Instructions

Product Summary

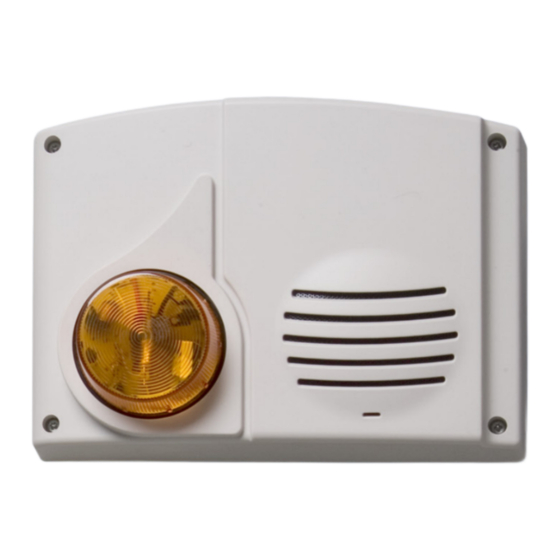

The Exterior Siren/Strobe Model SE 650 is a wireless
siren designed for use in RSIalarm™ security systems.
The siren includes the following features:
>
Totally wireless, battery operated
>
Weather-resistant enclosure
>
Dual tamper function provides detection for both wall
and cover tamper.
>
Transmits check-in/status signal every 8 minutes
Programming/RF Testing
The following provides summarized steps for device
programming and testing. For complete details, refer
to the control panel installation manual.
1
Remove four cover
screws, separate cover
from siren and install
batteries.
2
Put control panel
into programming/
confi guration mode.
3
Using a programmed
alphanumeric keypad,
proceed through menus
until the display shows
ADD A NEW DEVICE.
4
Press Yes. The display
shows PRESS PROGRAM
BUTTON OF DEVICE.
5
Press and release
program button on siren
using a paper clip end.
The siren LED fl ashes.
Wait for keypad display
to show SIREN (1 - 25)
RECORDED.
Manufactured by RSIalarm
Installation Guidelines
For easier installation, programming and RF testing
should be done to check for good communication between
the control panel and all system devices before mounting
system devices. Install the siren and other system devices
in the following order:
>
>
6
7
8
9
Screws
10
Program Button
Exterior Siren/Strobe Model SE 650
I N S T A L L A T I O N I N S T R U C T I O N S
Programming/RF Testing—program siren and
all other devices into the control panel and test
RF communication from each intended device
location to the control panel.
Mounting—mount siren at the tested location.
Press Yes. The display shows RADIO RANGE TEST?
Press Yes again. The siren LED starts fl ashing and
keypad display shows TEST IN PROGRESS.
Take siren to its intended mounting location and
make sure LED fl ashes continuously, indicating good
communication with control panel.
Press Yes to end radio range test, then press Esc/No.
The display shows RECORDING NEW DEVICES?
Repeat steps 4 - 8 for remaining sirens.
When fi nished, exit from confi guration mode.
www.videofied.com
Document No. 1012-c November 2006
