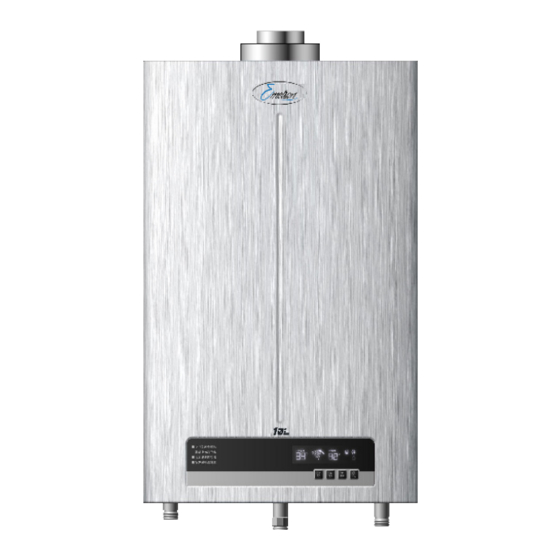

- Page 1 OWNER AND INSTALLATION MANUAL CLOSED CHAMBER GAS WATER HEATER EMLCLE10SLGB-K Thanks for choossing our product. Please, read carefully this manual before using the product...
-
Page 2: Table Of Contents
Thank you for purchasing our automatic gas water heater. Read this Manual before installing and operating. Keep it for future reference. Contents Special Advice1……………………………………………..…2 Features………………………………………………..……….2 Model instruction………………………………………………3 Parts Name………………………………………………….. …4 Dimensions…………………………………………..…….……5 Specifications…………………………………….…..…………7 Installation………………………………………….…..……….8 ... -
Page 3: Special Advice1
Special Advice Read the technical instructions before installing the appliance. Read the user’s instructions before lighting the appliance. The manufacturer or its authorized distributors will not be held responsible for any danger resulting from installation and operations not in accordance with this manual. This product can only be used after an efficient exhaust pipe, connected to outdoors, is installed. -
Page 4: Model Instruction
Attention: This product’s safety function is concluded by lab tests, it will be influenced by the environment in the practical use. Please respect use of this device and keep maintained in a good condition. Model instruction Fig.1(b) 10KM - 3 -... -
Page 5: Dimensions
DIMENSION： (All the figures for reference,see the product for real appearance) - 4 -... -
Page 6: Specifications
Specifications: Name Gas-fired instantaneous water heater EMLCLE10SLGB Model Heat Input （Hi） 21kW Heat Output 19.5kW Max flow rate 10L/min Appliance Type Type of Gas I2H-G20-20mbar I3P-G31-37mbar I3B/P-G30-29mbar Max water pressure Pw=10bar Min water pressure Pw=0.2bar Electrical power supply 230v a.c. 50Hz Insulation grade Class I Electrical and water protection... -
Page 7: Installation
Installation Contact your local gas dealers or gas management department for a qualified engineer to install the gas water heater (users are recommended not to install by themselves). ■ Installation place ● The flue of the gas water heater should be installed through an external wall, the heater cannot be installed in outdoors. - Page 8 The height is suitable when the flame check window is at eye level (1.5～1.65m above the ground) (Fig. No visible electric wires or electric appliances are permissible above the heater, the horizontal distance between the heater and the electric appliance should be more than 400mm. The distance between the heater and the wall should not be less than 150mm, and the flameproof board should be 100mm bigger than the heater.
- Page 9 Please use the flue supplied by our company, Other flues with different specifications are strictly prohibited. Do not change the specification of the flue. The installation of the flue must be correct, otherwise the waste gases will flow back and be dangerous.( Fig.
-
Page 10: Using Methods
● Hot water outlet Use a flexible or rigid pipe to connect with the sprayer without valve. If a valve or switch is connected to the sprayer, the outlet pipe shall not use heat and pressure unendurable material such as plastics, aluminum pipes, so as to avoid the pipe from breaking and scalding the user. - Page 11 ● Turn on the gas valve. ● Press the “on/off” key on the control panel, the screen display and the designed hot water temperature. Press Up ▲or Down▼ to set the hot water temperature as desired. The lowest hot water temperature of this product is 35℃, highest is 65℃, minimum adjusting range is 1℃, the normal shower water temperature is 40℃...
- Page 12 ■ CAUTIONS: ▲ If you open the water valve first, and then open the power, the water heater will not start automatically. ▲ When you shower, avoid immediately putting the water on your head and body in case of scalding. You should use your hand to detect the water temperature before showering.
- Page 13 ■ Fire prevention ●Do not leave the water heater unattended whilst still in operation. ●In case of power failure or water failure, turn off the gas valve and water inlet valve. ●Do not place towels or clothes on top of the water heater.(Fig. 21) ●Do not store inflammables, explosives or volatiles near the water heater.
- Page 14 The water in the heater is not suitable for drinking. Forbid any interference with a sealed component, WARNING: a fire or explosion may result causing property damage, personal injury or loss of life. ■Handle with abnormal conditions If there is abnormal burning (flame light-back, flame lift, yellow tip or black smoke, etc), smell or noise, or other emergent situations, keep calm and shut off the gas supply valve and power switch, and contact the service facility or gas dealers for repair or adjustment.
-
Page 15: Error Code
▲ The residual water in the heater may be frozen in the winter, this is bad for the heater, so you must drain the water after use. (Please refer to the drain methods.). ▲ In order not to create scaling, please close the gas valve after using the heater, let the hot water out of the appliance. - Page 16 temperature sensor it may be disconnected. ◎ Controller board error Selection switch error ◎ Turn off water then start-up power Start-up power error ◎ Controller board error Hi Limit thermostat open ◎ Controller board error Gas Valve driver circuit error ◎...
-
Page 17: Circuit Diagram
Circuit diagram: - 16 -... -
Page 18: Trouble Shooting
Trouble Shooting Problems Solutions Reasons ● Gas valve not open Open the gas valve or recharge gas ● ● Gas valve half open Open valve completely ● Air in rubber gas pipe Keep turning on and off the water valve till ignition ●... - Page 19 Accessories( See the product for real appearance) Names Quantity Water heater 1 set Gas inlet hose 1 piece Water inlet hose 1 kit Expansion bolts (M6) 1 kit Mounting screws 4 piece Customer advice 1 piece Self-tapping screws 4 pieces Flue is packed in another carton 1 kit...
- Page 20 C/ Industria, nº 13 Polígono Industrial El Pedregar 08160 Montmeló Barcelona (Spain) Phone: (0034) 93 390 42 20 Fax: (0034) 93 390 42 05 info@geinal.com...
