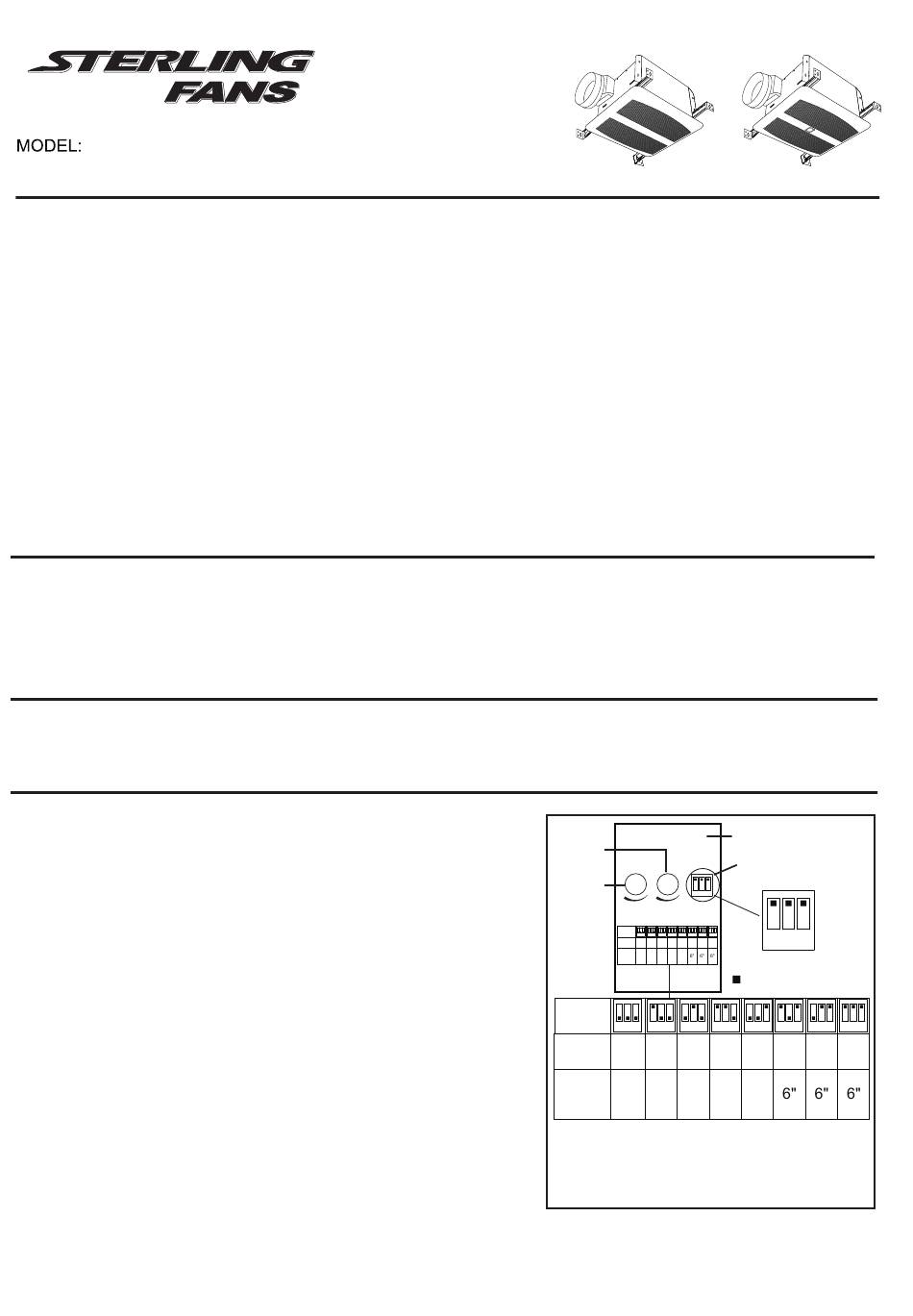

SED110
WARNING
WARNING -TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
a). Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer
b). Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switching
on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
c). Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated
construction codes and standards.
d). Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting.
Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
e). When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
f). Ducted fans must always be vented to the outdoors.
g). Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit (ceiling installation only).
h). This unit must be grounded.
i). Not for Use in Kitchens.
j). To reduce risk of fire and to properly exhaust air, be sure to duct air outside – Do not vent exhaust air into spaces within walls or ceilings or into attics,
crawl spaces, or garages
k). WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.
l). The fan must not be installed in a ceiling thermally insulated to a value greater R40.
CAUTION
1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. This product is designed for installation in ceilings up to a 12/12 pitch (45 degree angle). Duct connector must point up. DO NOT MOUNT THIS
PRODUCT IN A WALL.
3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
4. Please read specification label on product for further information and requirements.
*The manual in electronic format can be download in our company web, or obtained from our dealer.
CLEANING & MAINTENANCE
For quiet and efficient operation, long life, and attractive appearance - lower or remove grille and vacuum interior of unit with the dusting brush attachment.
The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual noises, replace the motor with the
exact service motor. The impeller should also be replaced.
OPERATION
See "Connect Wiring" for details.
The control box, located inside the fan housing, has three separate adjustments:
(1) The low airflow knob adjusts the lower airflow from 30CFM up to
the air flow rate of the high fan speed determined by the toggle switch setting.
(2) The time delay knob is adjustable from 3 to 30 minutes and will switch the fan
to the low speed setting after motion is no longer detected in the room for the set
period of time.
(3) The toggle switch will adjust the upper fan speed setting from 80 to 120 CFM
using a 4" duct, or 90 to 140 CFM using a 6" duct.
For model SED110
How to work
To Turn Fan ON
Turn the switch I (according to the following "CONNECT ELECTRICAL WIRING" ) ON.
• Fan will run at the certified airflow rate if the switch II is ON.
• Fan will run at the user-adjustable airflow rate if the switch II is OFF.
To Use Fan Time Delay Airflow Rate Change
1. Turn the switch I ON.
2. Turn the switch II ON - fan will run at the certified airflow rate.
3. When the switch II is turned OFF, fan will continue to run at
the certified airflow rate until the user-adjustable time delay has elapsed,
and then will automatically change to the user-adjustable airflow rate.
To Turn Fan OFF
Turn the switch I OFF
SED110M
READ AND SAVE THESE INSTRUCTIONS
Installer: Leave this manual with the homeowner.
EXHAUST FAN
Timer delay
knob
Low airflow
knob
1 2 3
-
-
+
+
Switch
position
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
Air deliver
80 90 110 120 90 110 120 140
(CFM)
Duct
diameter
4"
4"
4"
4"
6"
(inches)
Switch
position
1 2 3
1 2 3
1 2 3
1 2 3
Airflow
80 90 110 120 90 110 120 140
(CFM)
Duct
4"
4"
4"
4"
diameter
(inches)
Factory setting: 110CFM (
with 6" duct
HVI Certified performance based on HVI Procedures 915,
916, and 920.
Other airflow reference performance based on HVI
Procedures 915, 916, and 920.
Power box
Toggle switch
1 2 3
is the position of switch
1 2 3
1 2 3
1 2 3
1 2 3
6"
)
