The Cary LED At-A-Glance Manual

The "LED At-A-Glance" gauge system is an electronic remote read
that accurately and reliably measures the fuel level in your fuel tank.
It will transmit and display the level information to a wired LED
display located in a convenient location on your premises.

Operation:

The Display/Receiver displays the liquid level on a row of LED's where each

LED represents approximately a 1/8 of the tank's capacity
The row of LED's is green from 3/8 of a tank to full

When the level goes to 1/4 tank the highest LED illuminated will be yellow

At 1/8 of a tank the highest LED illuminated will be red

The Cary Company
1195 W. Fullerton Ave.
Addison, IL 60101
thecarycompany.com

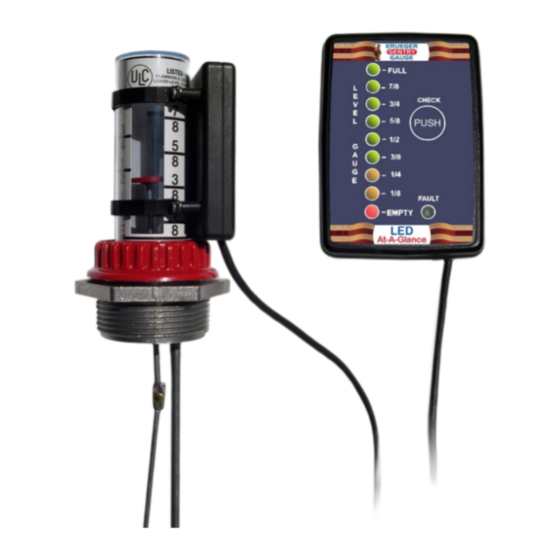

LED At A Glance Remote Display

FEATURES

Quick and easy installation.

Suitable for use in both indoor or outdoor

applications.
Connects using a 3 wire cable with

weatherproof plugs.
Yellow fault light will illuminate if there is

any fault in the system.
Powered by a standard 9V battery.

Recommended to be changed out once
per year.
Display comes with 25 feet of remote

capability.
Can be ordered with up to 100 feet of

remote capability.
Hi or Low Level adjustable alarms.

(can also be disabled)
Contact us for help:
Ph: 630-629-6600
