Summary of Contents for FULL MOON OPTICS DOMINUS-55

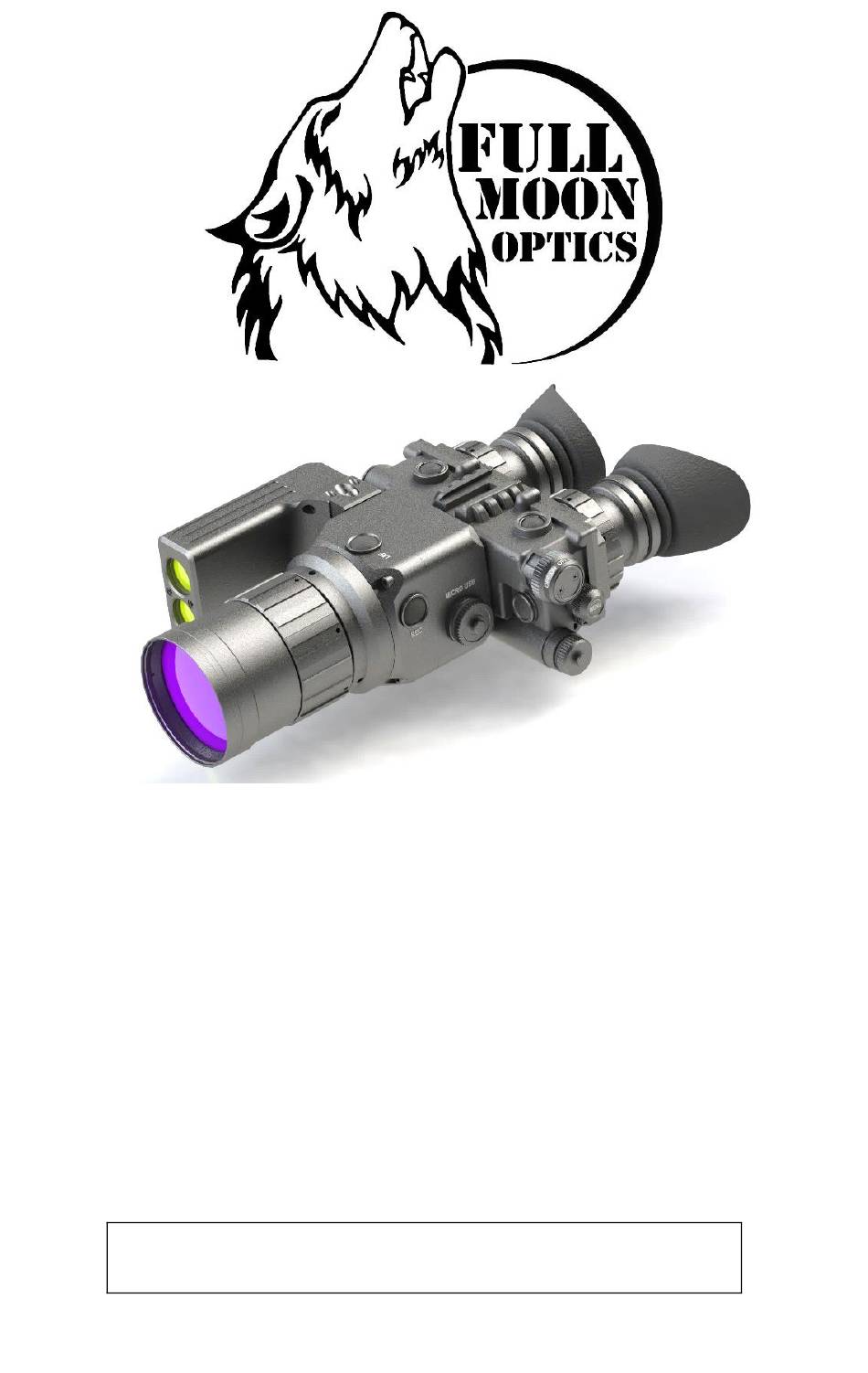

- Page 1 DOMINUS-55 DOMINUS-80 LONG RANGE THERMAL IMAGING BINOCULAR OPERATION MANUAL IMPORTANT: Please read this manual in its entirety PRIOR to using this device!
-
Page 2: Thermal Imaging
WARNING: NEVER POINT THIS DEVICE DIRECTLY AT THE SUN OR ANY FIRE / HEAT SOURCE WITH TEMPERATURE OF OVER 500C/930F! DOING SO WILL PERMANENTLY DAMAGE THE THERMAL SENSOR AND WILL VOID ANY WARRANTY CLAIMS! SEE PAGE-14 FOR MORE DETAILS AND FOR VERY IMPORTANT CARE WARNINGS! THERMAL IMAGING: Let’s try to understand how this device works and what it can... -
Page 3: Operation
OPERATION: DOMINUS-80 BINOCULAR (DOMINUS-55 features same body design, but with smaller objective lens) Glossary: 1 – Laser Rangefinder Lens 2 – LRF (Laser Rangefinder) ON/Range Button 3 – Invert Button 4 – Eyepiece (Ocular) Focusing Rings 5 – Zoom Button 6 –... -
Page 4: Installing The Batteries
INSTALLING THE BATTERIES: Your thermal binocular operates on commonly available 3V Lithium batteries, CR123-type. You need 3 batteries to operate the device. Rechargeable batteries are OK, but their peak voltage cannot exceed 4.2V each. To install the batteries, unscrew the battery compartment cover (Battery Compartment Tube (7) runs underneath the binocular body and the compartment cover is located on the opposite end of the 9V External Power Input (7)) and install the batteries inserting the positive... - Page 5 SUPER CONTROLLER FUNCTIONS: Your thermal binocular comes with a unique Super Controller (6), which allows for nearly instant image adjustment to the best possible brightness and clarity without having to enter the menu settings. This feature is extremely useful when atmospheric conditions change rapidly, especially during high humidity and/or rapid temperature changes.
- Page 6 DEVICE MENU NAVIGATION – IMPORTANT! 1. When long-pressed, the Super Controller activates the Main Menu 2. Once Menu is activated, rotating controller will highlight each menu chapter from top to bottom. 3. Once the particular menu chapter is highlighted in green color, the selection can be initiated by short-pressing the Super Controller, after which the menu chapter will highlight in red color.
- Page 7 See page-5 for BRGT adjustment. NOTE: this function is available via Super Controller and is normally adjusted without getting into Menu. 5. Thermal Sensitivity See page-5 for SENS adjustment. NOTE: this function is available via Super Controller and is normally adjusted without getting into Menu.
- Page 8 position is available, which removes date/Time Stamp from video recordings. 12. Super Contrast Display Mode This setting allows user to enter the Super Contrast mode, which is helpful during extremely humid weather conditions, where targets will appear “washed out” against the background, as well as during the situations where target heat is waning.
- Page 9 This setting allows user to select on screen display menu position. 3 settings are available: Up / Center / Down 19. OSD Transparency This setting allows user to select the transparency of the On Screen Display Menu, as well as reticle and status bar transparency.
- Page 10 This selection displays the current software version and cannot be edited. This information may become useful if customer support is required. 27. Settings Reset This selection allows user to reset all settings to factory levels. We do not recommend using this function, unless you feel that the scope is not functioning as it should.
- Page 11 USING LASER RANGEFINDER: Your thermal binocular comes with fully integrated Laser Rangefinder allowing you to accurately and quickly measure the distance to the viewing object up to approximately 1,500m (760yds). To measure the distance you must first activate the feature by pressing once the Rangefinder Button (4).
- Page 12 EXTERNAL POWER SUPPLY OPTIONS: It is possible to connect an optional external 5V power bank to the binocular through the micro-USB connector (9) or an external power supply through the external power supply connector (7) in order to operate it for a longer periods of time. Please make sure only 5V power bank is used through the USB connector and output power should be at least 2A.
- Page 13 USB TRANSFER MODE: Pease read carefully! 1. Power the binocular. 2. Enter the main menu and select “USB Transfer Mode” (see also page-7) – USB Transfer Mode turns OFF all other functions of the monocular – it should only be used during actual data transfer. 3.
-
Page 14: Troubleshooting
letters may not be engraved on your device, but the number will match the serial number of your device). b) Enter default password: 12345678 c) Make sure your mobile device is disconnected from the usual Wi-Fi signal (such as home or office), which it normally connects automatically, as it may cause interruptions in video stream. - Page 15 -You may be viewing an object that it too close – the minimum focusing distance is approximately 3m or 9 feet 3. Unable to see heat signatures behind visible barriers, such as glass: IMPORTANT - PLEASE NOTE: THERMAL DEVICES ARE UNABLE TO SEE HEAT SIGNATURES IF THE OBJECT IS BEHIND ANY BARRIER THAT HAS REFLECTIVE NATURE, SUCH AS GLASS, THEREFORE YOU...
- Page 16 Power Supply_________________________ 3 x CR123 Lithium / or 5V USB Working time ____________________________ 3.5-4hrs (CR123 batteries) Working Temperature Range_________________-10C / +50C /// 14F / 122F Weight_____________________________________________ 900g (1,500g) FULL MOON OPTICS 136 Sewell Rd., Elko, GA 31025 (USA) Tel: +1-478-954-2721 / +1-478-239-0099 E-mail: FullMoonOptics@gmail.com...
