Funko N4S Paka paka machine Service Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

SERVICE MANUAL

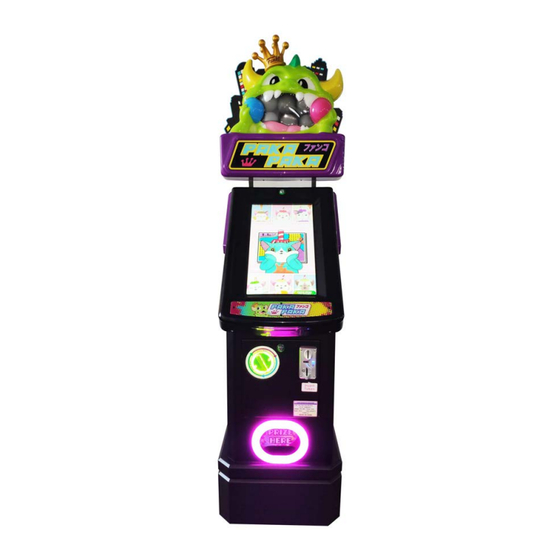

N4S Paka paka machine

FCC ID:2AUBO43014

Model:43014

Isuue date: Aug. 27, 2019

Caution

★ Please read the manual carefully and keep it in mind before

using this machine .

★ Put this manual within touch of your reference in anytime .

- 1 -

Table of Contents

Need help?

Do you have a question about the N4S Paka paka machine and is the answer not in the manual?

Questions and answers

Summary of Contents for Funko N4S Paka paka machine

Page 1 SERVICE MANUAL N4S Paka paka machine FCC ID:2AUBO43014 Model:43014 Isuue date: Aug. 27, 2019 Caution ★ Please read the manual carefully and keep it in mind before using this machine . ★ Put this manual within touch of your reference in anytime .
Page 2 Thefollowingsafetyprecautionsaregiventhroughout thismanual.Theymustbestrictlyfollowedtoprotect those who install,use or maintain thisproduct as well as toprotect players, visitors and property. When setting up the machine, be sure to consult industry experts. It is not possible to set up machines for people other than industry experts.
Page 3: Table Of Contents
CONTENTS 1.DIMENSION·····························P04 2.SPECIFICATION····························· P04 3.NAME OF PARTS····························· P04 4.LABEL LOCATION···························· · P07 4-1CAUTION LABEL LOCATION······················ · · · · · P07 4-2FUCTION LABEL LOCATION······················ · · · · · P09 5.COMPOMENTS·····························P10 6.INSTALLATION····························· P11 6-1INSTALLATION SPACE························ · · · · P11 6-2HOW TO INSTALL··························...
Page 4: Dimension
1. DIMENSION 2．SPECIFICATION DIMENSION（W*D*H） 500*635*2030(mm) PACKING DIMENSION（W*D*H） 680*600*1570（mm） GW(KG) 76.4KG NW(KG) 68.4KG VOLTAGE 120V FREQUENCY RANGE 60Hz CONSUMPTION - 4 -...
Page 5 3．NAME OF PARTS PART NAME PICTURE PART NAME PICTURE billboard lift lock Toys door screen Top rear board Screen Top holder cover dial handle Coin Rear door selector volumn AC input part - 5 -...
Page 6 Capsule toy wheel door PART NAME PICTURE PART NAME PICTURE TYPE A Main cabinet Motor drive Token box board Mainboard loudspeaker Repair Setup part button TYPE B Dial spring - 6 -...
Page 7 TYPE C Dial switch Power box - 7 -...
Page 8: Label Location
4.LABEL LOCATION 4-1CAUTION LABEL LOCATION - 8 -...
Page 9 PART NAME PICTURE LABEL SIZE nameplate L90mm*W63mm L121mm*W50mm Do not open this door for L100mm*W65mm non-professional Indoor use only L133mm*W65mm Unplug before L80mm*W18mm maintain careful the clip L120mm*W50mm hand - 9 -...
Page 10: 4-2Fuction Label Location
Maintenance L100mm*W65mm outages 4-2 FUNCTION LABEL LOCATION PART NAME PICTURE 标签尺寸 Insert token L60mm*W37mm - 10 -...
Page 11: Compoments
Ø127mm Turn dial Ground terminal L47mm*W37mm Ø50mm Type A Ø50mm Type B Ø50mm Type C Ø35mm Repair button Set up L51mm*W27mm 5．COMPOMENTS PART NAME SPEC. UNIT PICTURE REMARK POWER LINE 1.5M strip PROTECTIVE ø6-20mm 110V/220 6A TUBE MANUAL - 11 -...
Page 12 MACHINE LG01 KEYS LOCK KEYS LG02 HEXAGON WRENCH HEXAGON 个 pcs WRENCH - 12 -...
Page 13: Installation
6.INSTALLATION 6-1 INSTALLATION SPACE Need to have installation place. Maintenance Zone& Play zone should at least 1500mm*1600mm each. Once you set up the machine with required game-play area, when installing this product, set the 4 leg levelers evenly on the floor and make sure that the product is installed stably in a horizontal position.
Page 14: 6-3How To Fill In Toys Into Top
CHOOSE THE 4PCS SCREW ,USE THE HEXAGON WRENCH CONNECT THE TUBE WITH BLACK BOARD. HOLD THE TOP BOX WITH TUBE INSERTED BETWEEN THE HOLES. CHOOSE THE 4PCS SCREW ,USE THE HEXAGON WRENCH CONNECT THE TUBE WITH THE MAIN CABINET. HOW TO FILL IN TOYS INTO TOP? USE THE SCREWDRIVER LOOSEN THIS 4 PCS SCREW.
Page 15 PUT CAPSULE TOYS INSIDE THE HOLE. SHOW AS FULL TOYS INSIDE . COVER CIRCULAR PLATE USE THE SCREWDRIVER LOCK THIS 4 PCS SCREW - 15 -...
Page 16: How To Replace Major Components
7. HOW TO REPLACE MAJOR COMPONENTS 7-1TOP PART INSTALLATION DISGRAM - 16 -...
Page 17 PART NAME PICTURE SPEC REMARK crown Crown Baseplate SN.03-17 lock nut Black MDF 9mm Cover plate thick pvc foam board white Corner code of 201 Stainless plastic-absorb steel ing cover Hexagonal screw M4*8mm SN.03-06 in round cup Plastic-absorb Box shape ing transparent organic cover Back panel of...
Page 18 7-2 DIAL PART INSTALLATION DISGRAM Drawing after Installation - 18 -...
Page 19 PART NAME PICTURE SPEC REMARK Hexagonal wire M4*16 in round cup Fluorescent dial SN.06-05 Green Acrylic Dial bottom 6mm Milk-white SN.06-06 plate nylon board Dial Rotating Q235 Galvanized SN.02-05 plate Deep groove 699ZZ bearing Dial bottom Q235 Galvanized SN.02-06 plate Dial cushion Yellow SN.06-07...
Page 20 7-3 CAPSULE TOYS STRUCTURE PART INSTALLATION DISGRAM - 20 -...
Page 21 PART NAME PICTURE SPEC REMARK Cylindrical M6*175mm black SN.09-04 screw Five-hole Yellow ABS 711 SN.07-01 hood Supporting 201 Stainless SN.03-14 rod fixing steel Four-link 201 Stainless Fixed Code SN.03-15 steel for Support Supporting 201 Stainless SN.03-14B rod fixing steel Large flat head M5*25mm machine...
Page 22 201 Stainless Axis of stud SN.02-01 steel Stud base Q235 4mm thick SN.02-01 plate Single arm Transparent cushion SN.06-09 organic tablets plate Spiral release Yellow ABS 711 SN.07-02 shaft Electrolytic Detection plate 1.5mm SN.03-02 grating thick Bearing F688ZZ threader 201 Stainless SN.02-10 stud steel...
Page 23 7-4 TOP AND LIFT PART INSTALLATION DISGRAM PART NAME PICTURE SPEC REMARK Main cabinet Q235 SN.03-10 lift Q235 SN.03-12 Button board 15mm thick Rubber foot pad High 25mm - 23 -...
Page 24: How To Play
Cylindrical M6*30mm head machine wire 1 Font 97*40mm connector Countersunk M4*16mm machine wire Combination M5*25 yarn Combination M6*12 yarn wheel 2.0 inch 8.HOW TO PLAY 1.Loop video 2. Click the “PUSH HERE TO START” button at the bottom right of the screen to enter the main menu 3.
Page 25 8-1 Loop video： Video 1 video 2 Video 3 Tip: click the “PSHU HERE TO START” button at the bottom right of the screen to enter the main menu when the video is showing 8-2 Main Menu: - 25 -...
Page 26 8-3 Purchase interface: Purchase interface No1: Purchase interface No 2 - 26 -...
Page 27: Info Interface
Purchase interface No3 8-4 Info interface: - 27 -...
Page 28 8-5 Purchase notification interface: 8-6 Capsule notification interface - 28 -...
Page 29 8-7 Setting interface: Attention: Before entering the setting interface, please use the key(key type: LG1) to open the front door and press the red button to enter the setting. - 29 -...
Page 30: Wifi Setting
8-8 WIFI setting interface 8-9 Server IP address setting interface： - 30 -...
Page 31 8-10 Hardware test interface 8-11 Hardware test steps and errors handling Attention: Before entering the hardware testing interface, please follow the below steps one by one. As shown below: press the use the LG1 key button to open the front door - 31 -...
Page 32: Hardware Test
Click the “Hardware Test” button on the screen to enter the testing interface. Please don’t ignore the hardware test which is the operation core of the machine. The hardware has close relation with machine broken down. So please read this instruction seriously.
Page 33 8-12. Sensor ABC testing: Check whether each pipe has capsule or not and at least has one. Use LG01 key to open the screen door Hand touch to click the “Test Motor If the Sensor A A” button displays a red light and a new capsule coming out from the pipe, the sensor A is...
Page 34 loose 6 screws at Sensor A/B and remove the top two layers. loose the red and blue docking ports loosen two screws on the sheet metal surface with a screwdriver. Slowly pull out Slowly pull out the 5-hole the 5th hole cover on the cover on the 4th 5th floor of...
Page 35 Slowly pull out Slowly pull out the 5-hole cover the 5-hole cover on the third floor on the second of Sensor A floor of Sensor A Select 5.5mm The sensor can be sleeve to loosen replaced by loosening the three nuts. screw with a screwdriver - 35 -...
Page 36 2. Capsule channel sensor testing: Watch if Counter 2 is bright red. Bright red Two sensors on both sides of the inclined plate of the ball indicates that the are shielded by hand (two on sensor is working the left and two on the right). normally.
Page 37 Select a 5mm wrench to loosen the top six screws and take out the top two layers. Loosen the red and blue docking ports When the whole mechanism is lifted, it passes through three Hands will be gifts screw rods at the top, mechanism parts lifted at right and left, then the same time, to both...
Page 38 Remove slope component status loose the three screws of the slope mechanism and remove them. Replacem 传感器 ent of sensors 3.coin selector test: Hand-ope rated SW1 Watch for bright red at Coins. Bright red indicates that the coin operates normally. - 38 -...
Page 39 If the coin selector is not working properly, a new coin must be replaced. The replacement steps are as follows: Choose the sleeve tool Pull the end of 7mm to loosen the four the wire by hand screws of the coin thrower. The operation can be completed by replacing the new coin holder.
Page 40 If the button does not work properly, a new button needs to be replaced. The replacement steps are as follows: Remove the button docking loose the button terminal by hand. screw with an open wrench of 10 mm. Replacement of the new button will complete.
Page 41 5. Error recover button test: Watch Repair for bright red. Bright red indicates that the button is working properly. Hold the button by hand 6.Dial test: Watch for bright red at TURN. Bright red indicates that the Turn the knob knob button is clockwise working properly.
Page 42 If the knob does not work properly, the knob switch should be replaced. The replacement steps are as follows: Dial micro switch Release 2 After pulling out the screws with a docking head. The screwdriver new knob switch can be replaced. 8-12 Purchase Record Interface: - 42 -...
Page 43 9. APP Version Updating Method and Steps: Attention: firstly, make sure the machine power on stably; then following the below steps to update the APP version: press the red button Use the LG01 key to open the front door Mainboard Select the “Update App”...
Page 44: How To Updated The Video
10.How to updated video Note: First of all, ensure that the machine is in a stable power-on state. Then update it through the following steps. As shown in the following figure: Select Key Model: LG01 Open the Press button Door and Open the Front Door mainboard Click Update Files on...
Page 45 11. How to change the Mainboard? Separated the blue,red,white wire. Find the keys(LG1)open the screen Separated the USB/VGA plug Open the front door, Separated the four different - 45 -...
Page 46 Move out the wooden board Find this four butterfly nut, loosen it ! Separated the mainboard plugs(five place). Use the screwdriver.lose the four screw ,and then change the mainboard . - 46 -...
Page 47: Circuit Diagram
12. CIRCUIT DIAGRAM Note: If the above illustrative pictures are changed, the physical machine is the standard. - 47 -...
Page 48 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
