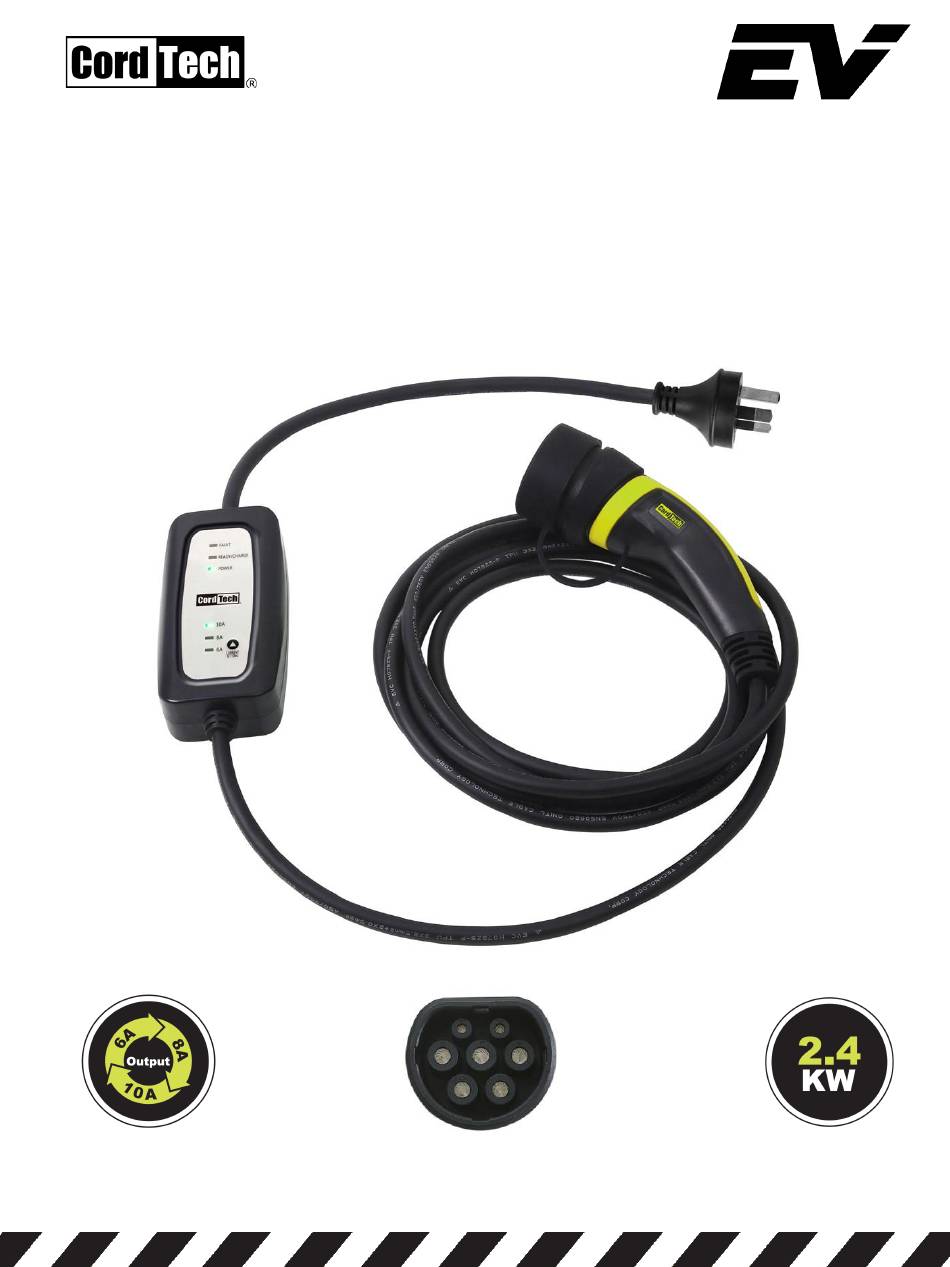

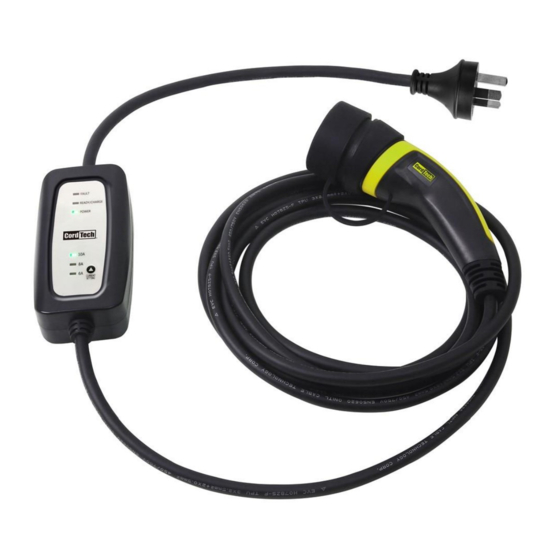

- Page 1 Mode 2, Type 2 Portable EV Charger - Instruction Manual MODEL: CEVM2T2...
- Page 2 Warnings • Your Mode 2 CordTech charging lead plugs directly into a 10Amp power socket: • We recommend consulting a registered electrician to assess that your socket outlet/power circuit can support this. Older wiring or heavily “loaded” power circuits can present issues as this is a high-power device.
- Page 3 Start Charging 1) Uncoil the charging lead, insert the 3 pin plug into a wall outlet. Ensure it is securely connected and not loose. 2) Gently remove the socket cap off the Type 2 (Mennekes) plug, connect to your vehicle inlet. Ensure the plug is securely connected and not loose. 3) The device will start charging automatically while the READY/CHARGE, POWER indicators are all green.
- Page 4 Indicator Lights LIGHT INDICATOR STATUS Normal Short Circuit Protection Flash Once Leakage Current Protection Flash Twice Input Wiring Defect FAULT Flash Thrice Plug Overheating Flash Quartet Over Current Protection Flash Quintet CP Signal Defect Flash Sextet Control Box Overheating Flash Septet Relay Adhesion Charging READY/CHARGE...
- Page 5 Specifications CordTech 5M EV Cable Mode 2 Type 2 (6A, 8A, 10A) CEVM2T2 (PEC-002) Model Output Current 6A min. – 10A max. Rated Power 2.4Kw Max Input Voltage 166-288V 50/60Hz IP Rating Control box: IP67 Type 2 Connector: IP55 10A Plug: Not IP Rated...
