AJS Fabrications WildBear LS 7577 Fitting Instructions

Instructions

What you will need:

Winch
Winch mount
Winch fitting kit (supplied with
mount) Required tool kit
Place fairlead extension onto the mount and bolt into place.
Remove winch electrics prior to fitting (make a note of wiring positions for the motor and refer to winch manual) Fit your
winch into the mount
Remove the front grill from the vehicle. Refer to Owner Handbook.
Press the 4 top clips and pull forwards
Release the 2 lower clips and pull the grill forwards
Remove headlights by lifting the 2 clips to align the hole with the pin.
When both clips are released pull the light forward and unplug the electrical connector.
Remove the screws on the wheel arch flares on both sides.
Remove the plastic panel.
Remove the screws along the top of the bumper and the 4 bolts from underneath, then remove the end screws. Be
careful not to break these.
Gently pull the flare away and undo the remaining bolts on both sides of the bumper. Then push the
clips back on either side to completely remove the bumper from the vehicle.
Remove the 2 bolts that secure the washer bottle and remove the air control unit by pushing in an
•
upwards motion.
•
Remove the 8 bolts from the inner bumper reinforcement and take it off the chassis.
Fitting Instructions
LS 7577

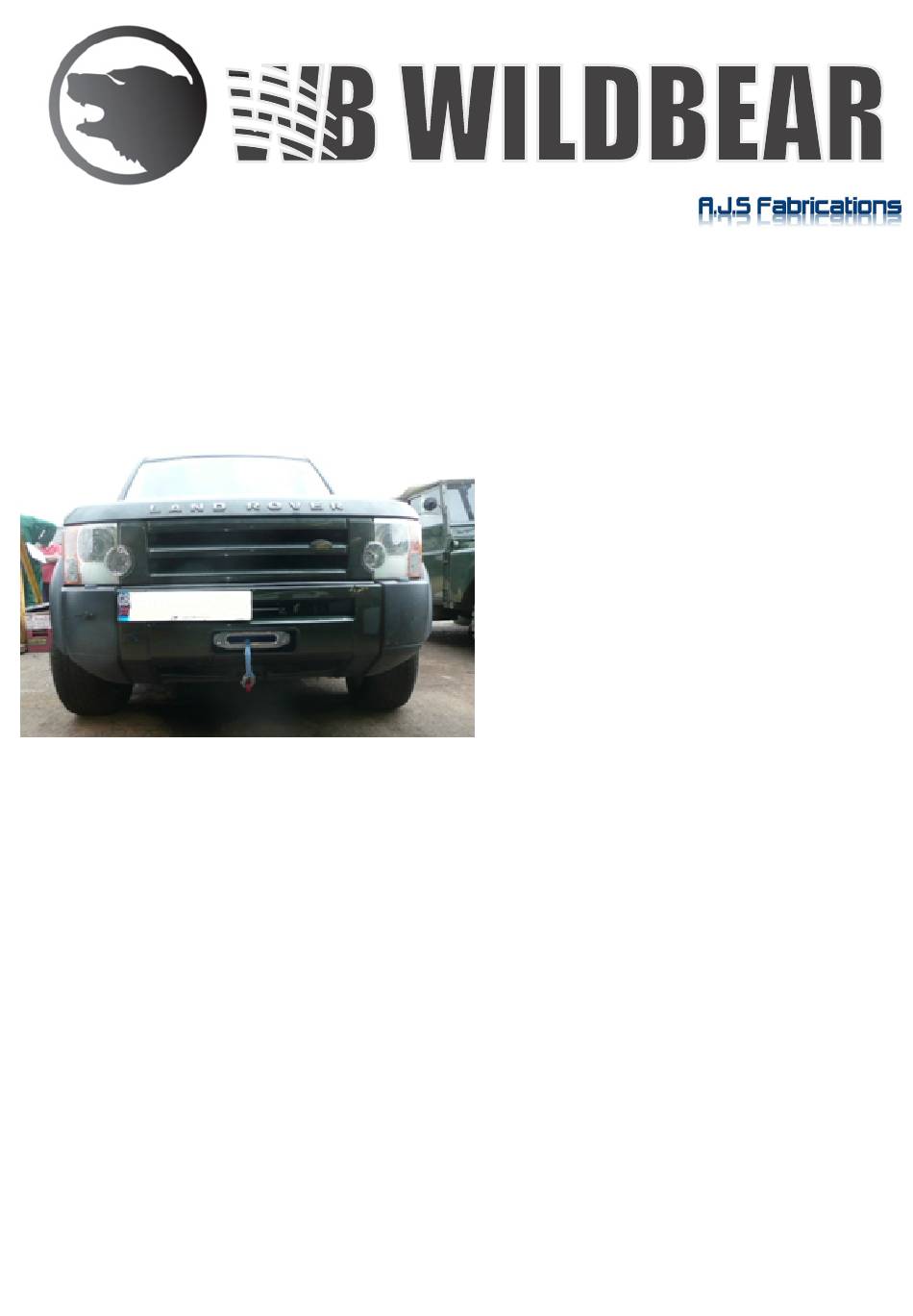

Discovery 3 Discreet winch mount
Please note on certain winches the clutch
release handle may have to be removed. A
flat bar may be welded to the winch as a
replacement.
Prior to removing parts from your vehicle fit the
winch into the mount.
From
