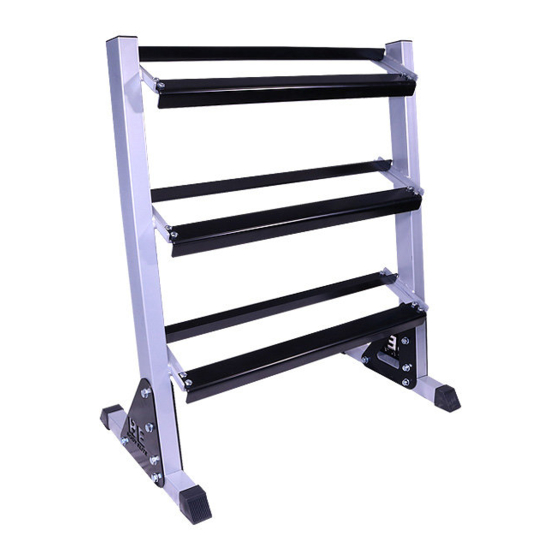

Summary of Contents for Body Elite BE7000

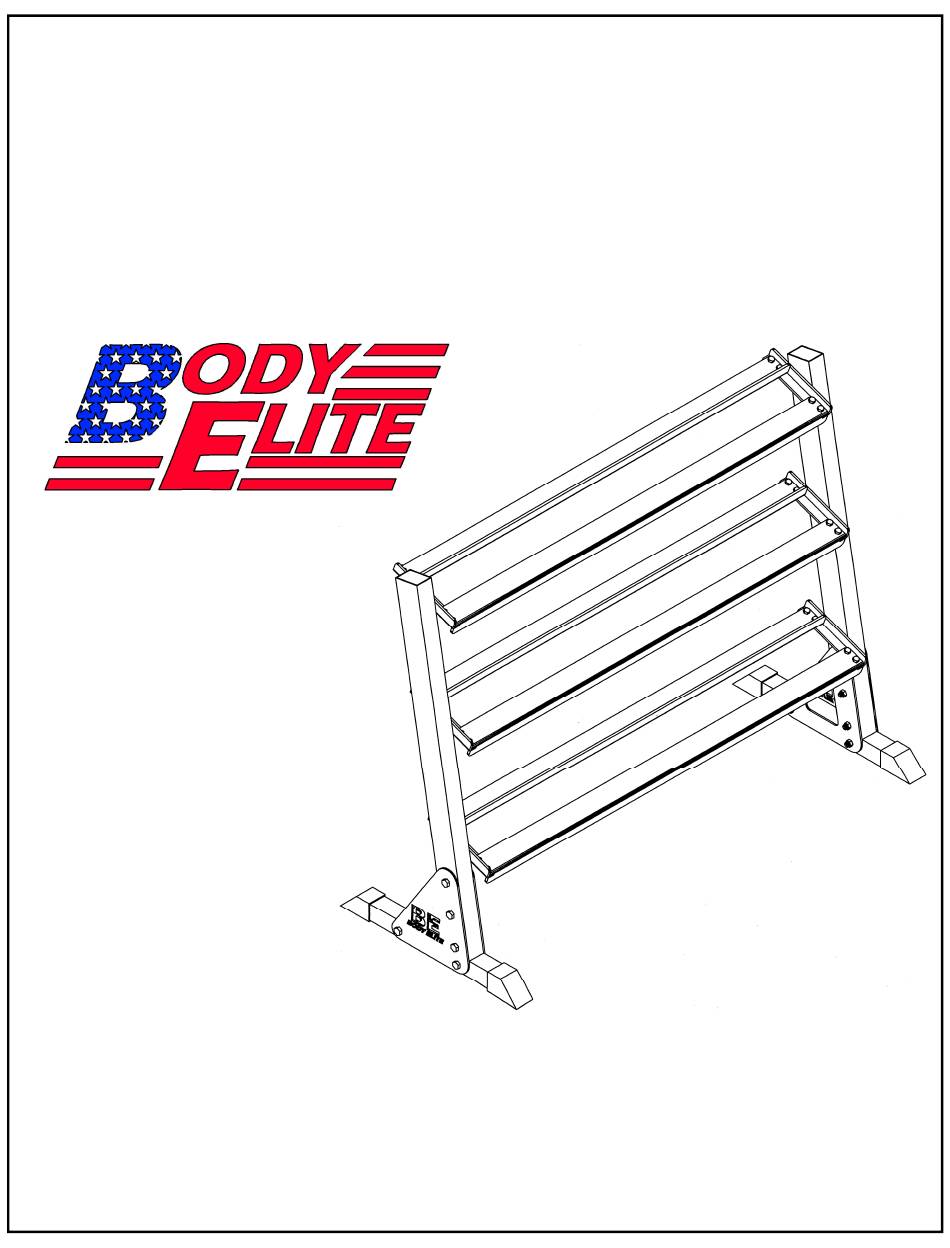

- Page 1 3 TIER DUMBBELL RACK Assembly Manual (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 2 BOX CONTENTS FOOT R.H. LEG L.H. LEG QTY 2 QTY 1 QTY 1 INNER CROSSMEMBER LH & RH OUTER TRIANGLE FLANGES QTY 6 TRIANGLE FLANGES QTY 2 QTY 1 EACH *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 3 HARDWARE M12 x 75MM BOLT M10 x 25MM BOLT M12 WASHER M10 WASHER QTY 10 QTY 24 QTY 20 QTY 48 M10 LOCKNUT M12 LOCKNUT RECTANGULAR RUBBER SHOE QTY 24 QTY 10 QTY 4 QTY 2 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 4 TOOLS REQUIRED: WRENCHES OR SOCKET SET ATTACH THE LH LEG (A) TO THE FOOT (C) USING LH OUTER TRIANGLE FLANGE (E), INNER TRIANGLE FLANGE (F), M12 x 75MM BOLTS (G), M12 WASHERS (I), AND M12 NUTS (K). INSTALL RECTANGULAR CAP (M) AND RUBBER SHOES (N). REPEAT FOR RIGHT SIDE.
- Page 5 ATTACH CROSSMEMBERS (D) TO MOUNTING BRACKETS ON LH AND RH LEGS USING M10 x 25MM BOLTS (H), M10 WASHERS (I), AND M10 LOCKNUTS (L). TOP CROSSMEMBER FACES UPWARD AND BOTTOM CROSSMEMBER FACES DOWN. REPEAT FOR THE OTHER 2 TIERS. TIGHTEN ALL BOLTS SECURELY BEFORE USE. THE LOCKNUTS USED ON THIS RACK HAVE A NYLON INSERT AND YOU MUST USE ENOUGH FORCE TO TIGHTEN THEM ON TO THE BOLT.
- Page 6 SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
