SONAL TRACK ZT09 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
A7W User Manual ............................................................................................................... 1
1. Product Overview .................................................................................................... 2
2. Product specifications ............................................................................................ 3
3. Instructions for use ................................................................................................. 4
3.1. Start-up and setup process .......................................................................... 4
3.2. Charging instructions .................................................................................... 5
3.3. Manage your device ...................................................................................... 5
4. Common setting commands. .................................................................................. 6
4.1 Reporting logic on different working mode .................................................... 6
4.2 Application Notes on Low Power Alarm ........................................................ 7
4.3 Light-Detected Alarm Description ................................................................. 8
4.4 Vehicle Collision Alarm Parameter setting ..................................................... 8
4.6 Time Zone Settings ...................................................................................... 10
4.7 Common Query Commands ........................................................................ 10
4.8 Common Setting Instructions ...................................................................... 11
5. Cautions ................................................................................................................ 11
6. Vehicle GPS Terminal Warranty Card ........................................ 错误 ! 未定义书签。
7. Maintenance Records ............................................................... 错误 ! 未定义书签。
Web: www.sonaltrack.com
ZT09 Long Life Tracker User Manual
ZT09 User Manual
Email: sales@sonaltrack.com
Ph: 8613857402537

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZT09 and is the answer not in the manual?

Questions and answers

Summary of Contents for SONAL TRACK ZT09

  • Page 1: Table Of Contents

    ZT09 Long Life Tracker User Manual ZT09 User Manual A7W User Manual ....................... 1 1. Product Overview ....................2 2. Product specifications .................... 3 3. Instructions for use ....................4 3.1. Start-up and setup process ................4 3.2. Charging instructions ..................5 3.3. Manage your device ..................5 4.

  • Page 2: Product Overview

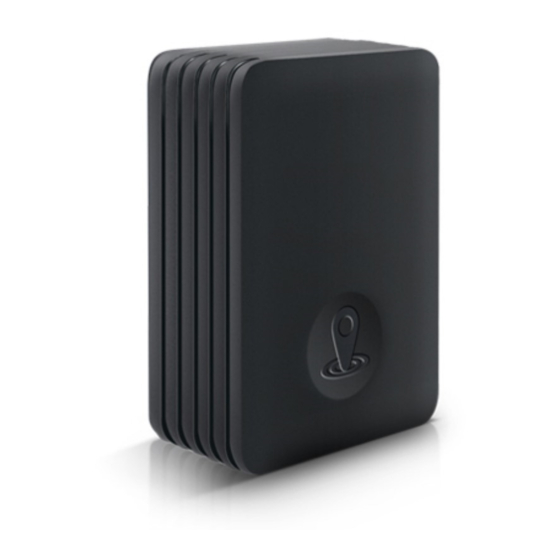

    ZT09 Long Life Tracker User Manual 1. Product Overview l 2G / 3G / 4G Global Frequency Bands Supported; l Support cell ID base LBS(Location base service); l Support all Global Navigation Satellite Systems (GNSS) that have been deployed, default GPS+Beidou hybrid mode; l Support cell ID base LBS (Location base service);...

  • Page 3: Product Specifications

    ZT09 Long Life Tracker User Manual 2. Product specifications Characteristic Description Disposable Lithium-ion battery and (3.7V 5400mAh) and Battery ultra-low discharge rate: less than 1%, store one year below 25°C MODE 1/3 sleep current: <10uA Power consumption MODE 21 sleep current: <3mA MODE1/2/3/21 normal working current: <60mA MODE 1 @ Daily report:>...

  • Page 4: Instructions For Use

    ZT09 Long Life Tracker User Manual 3. Instructions for use 3.1. Start-up and setup process Insert the SIM card into the device to turn it on, and then turn it off after removing the SIM card. The following flowchart indicates a complete installation and use process.

  • Page 5: Charging Instructions

    ZT09 Long Life Tracker User Manual Figure 1, SIM insertion indication Note: l Insert SIM card to power on the device, and remove SIM to power off the device automatically. l Please make sure the SIM with data service from your operator. l If your SIM card with a PIN code, please refer to your mobile phone user manual to remove the PIN code.

  • Page 6: Common Setting Commands

    ZT09 Long Life Tracker User Manual 3) APP or WeChat login method: Scan the device’s “bar code” or “QR code” to login in the APP or WeChat. The default password is ”123456” or find the cipher text that comes with the device package. 4) You can use third party server to management your device, contact us for more detail information.

  • Page 7: Application Notes On Low Power Alarm

    ZT09 Long Life Tracker User Manual 2. When ACC ON: the device turns on GPS, 4G module, MCU wakes up. How the device wakes up: Any alarm signal of the built-in G-sensor will wake up the device. Note: This command is valid when ACCCTLGNSS, 1 # Default: MODE, 21,2200 # is the factory default working mode of the device.

  • Page 8: Light-Detected Alarm Description

    ZT09 Long Life Tracker User Manual 4.3 Light-Detected Alarm Description Place the device in a dark place for more than 60S. When the device detect light from the device window for more than 1S, it will trigger a light-detected alarm, (sometimes call removal alarm) L1: Light-Detected Alarm: Enable [default]...
  • Page 9 ZT09 Long Life Tracker User Manual A: Sharp turn angle: Degree B: Average turn speed: KM CARSET,A,B,C,D# C: Rapid acceleration increment: KM D: Rapid deceleration reduction: KM, default: 75,20,8,18 When GPSGSE, 0 #, the following settings about G-sensor are valid Used to set the sensitivity of device acceleration...

  • Page 10: Time Zone Settings

    ZT09 Long Life Tracker User Manual 4.6 Time Zone Settings Set time zone: A: E or W, represent east and west. GMT,<A>,<B>,<C> B: 0 ~ 12 time zone C: half time zone Example: GMT,E,8,0# Associated time zone: The reported data time is USELOCALTZ,1 synchronized to the set time zone.

  • Page 11: Common Setting Instructions

    ZT09 Long Life Tracker User Manual 4.8 Common Setting Instructions Set server command. SERVER,1,<domain/ip>,<port> <domain/ip>: server domain or IP <port>: server port Set language. 1: Chinese LANG,<language> 0: English Default: English Set the center number: PARAM # can check the CENTER,A,<TelNumber> center number information, which is use for some remote control.
