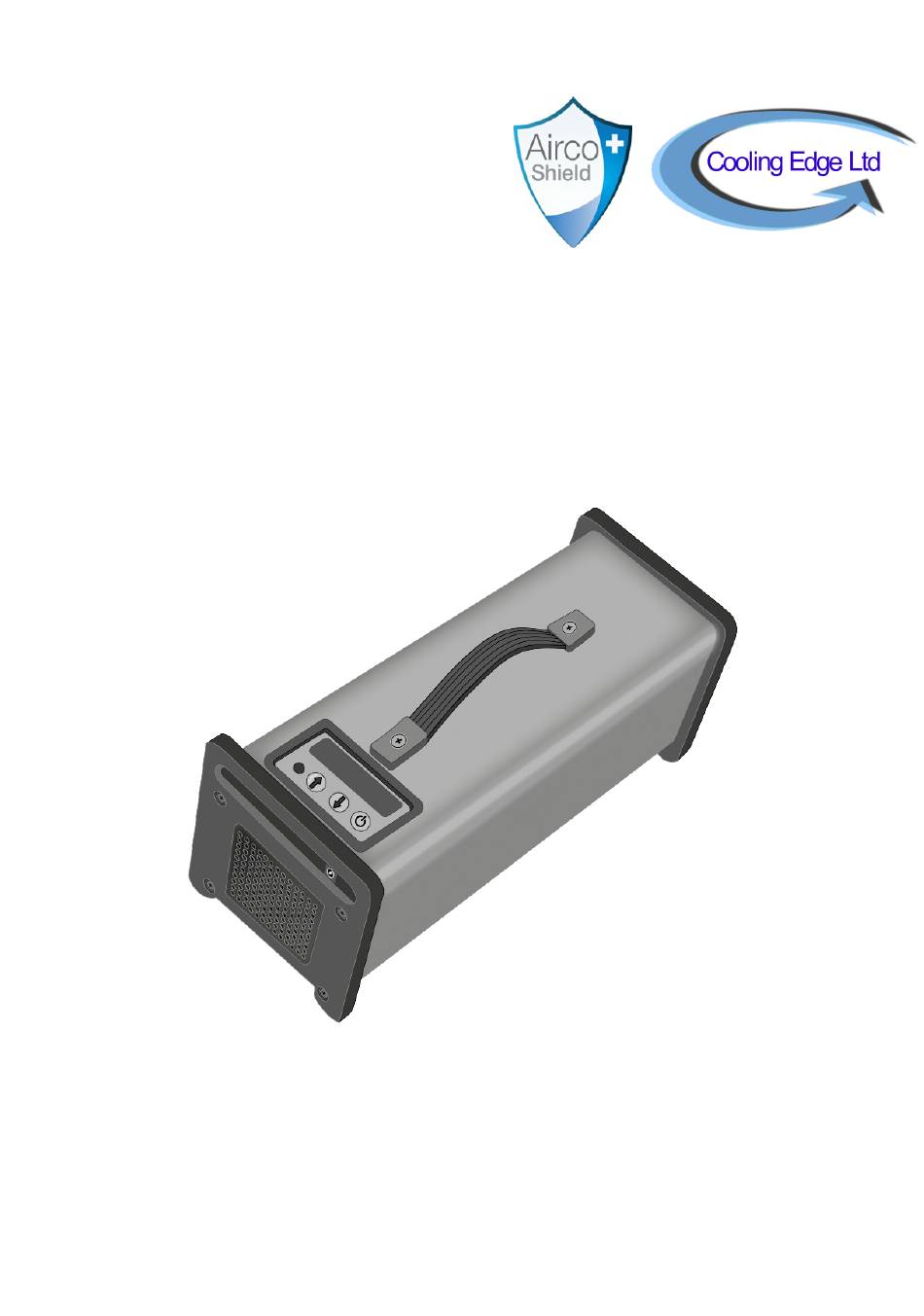

Page 1 PURIFIER PURIFIER OZONE GENERATOR Operating Instructions...
Page 2: Table Of Contents
Table of C ontents 1 Safety Notes .................3 General Safety Notes .............… 3 Safety Notes F or The Ozone Generator .....… 3 Safety Regulations In Closed Rooms........4 2 Device Description ..............5 Delivery Contents..............5 Intended use ................6 Device Description ..............7 3 Working With The Ozone Generator......… 9 Precondition F or The Use Of The Ozone Generator..9 Positioning................9 Operating Parameters ............9...
Page 3: Safety Notes
1 Safety Notes General Safety Notes • The ozone generator is exclusively intended for commercial use. • All guidance given in the individual sections of the operating instructions applies. The following measures and safety precautions must also be followed. Safety Notes For The Ozone Generator To avoid incorrect handling and any injury to the user or destruction of the ozone generator resulting thereof, observe the following:...
Page 4: Safety Regulations In Closed Rooms
Safety Regulations In C losed Rooms Ozone is a toxic oxidizing agent and hence dangerous and harmful to health. Observe the following to avoid serious harm to health: • Ensure that the room to be treated has an efficient air extraction system and sufficient fresh air supply.
Page 5: Device Description
2 Device Description Delivery C ontents Pi i e e ces D D esi i g g n n at t i i o o n n Ozone Vehicle charging cable Power cord Operating Instructions 2.1.1 C hecking delivery contents Please check the delivery contents upon receiving your device so that complaints can be issued immediately regarding potential damage or missing parts.
Page 6: Intended Use
Intended use 3. Remove the ozone generator from the packaging. CAUTION Danger of short circuit due to loose parts in or on the device Danger of destruction of the device and/or the automotive electronics Never put the device into operation if you suspect that there are loose parts in or on it.
Page 7: Device Description
Device Description D D esi i g g n n at t i i o o n n Handle This handle makes it easier to carry the ozone generator. Main switch Switch on the ozone generator after having set the duration of the procedure.
Page 8 D D esi i g g n n at t i i o o n LC display (Liquid crystal display) Application duration, status and fault diagnostics are indicated here. Ozone outlet Here, ozone is emitted through the front ventilation slots.
Page 9: Working With The Ozone Generator
3 Working With The Ozone Generator This section describes the use of the ozone generator. Precondition For The Use Of The Ozone Generator Observe the following when using the ozone generator: • Where necessary, set up warning signs that there is ozone emission in progress.
Page 10: Putting Into Operation
Putting into Operation B B u u s s / / ttr r a a ns s p p or r t t e e r r Com m p p act t c c ar r O O dou u r r n n u u i i s s ance normal An application of 60 An application of 30...
Page 11 Putting into Operation NOTICE Insufficient voltage supply Discharging of vehicle battery Do not disconnect the ozone generator from voltage supply during operation. Ensure sufficient voltage supply. Proceed as follows to put the ozone generator into operation: 1. Place the ozone generator onto the highest point in the car, e.g. the instrument panel to ensure optimum air circulation.
Page 12: After Execution
After Execution WARNING Danger of poisoning through ozone Possible consequences: • Eye irritation (conjunctivitis, making eyes sting or water) • Vertigo • Strong tussive irritation • Respiratory distress • Pain when taking a deep breath • Headaches Do not breathe in the ozone. Leave the room immediately after having doors and windows opened.
Page 13: General Information
4 General Information Problem solutions The following list will help you to solve minor problems yourself. For this select the appropriate problem description and perform the points listed under Solution until the problem is solved. Pr r o o bl l e e m m a a t t i i c c S S ol l u u t t i i o o n n c c ase The LC display...
Page 14: Disposal
Disposal Dispose of in compliance of all directives relating to Waste Electrical and Electronic Equipment (WEEE), And all local and Governmental laws...
Page 15: Technical Data Of The Ozone Generator
Technical Data Of The Ozone Generator Supply voltage 230 V/50 Hz (power cord) 12 V (vehicle charging cable) Display Type of construction: LC display UV-C Application Operating range 10 to 40 °C Ozone output 50 mg/h Weight (net) approx. 3 kg Dimensions 345 x 140 x 140 mm (H x W x D)
Page 16: Declaration Of Conformity Of The Ozone Generator
Supplier: R J Doran & Co Ltd Green Farm, Maidstone Road, Nettlestead Green, Nr. Maidstone, Kent ME18 5HD, England Details of Apparatus: The Purifier air purifying machine Model No’s.: AC29170 Brands: Primalec Also branded as Airco Shield Directives & Standards and 2012/19/EU [WEEE];...
Page 17 Notes:...
