INSTRUCTION SHEET

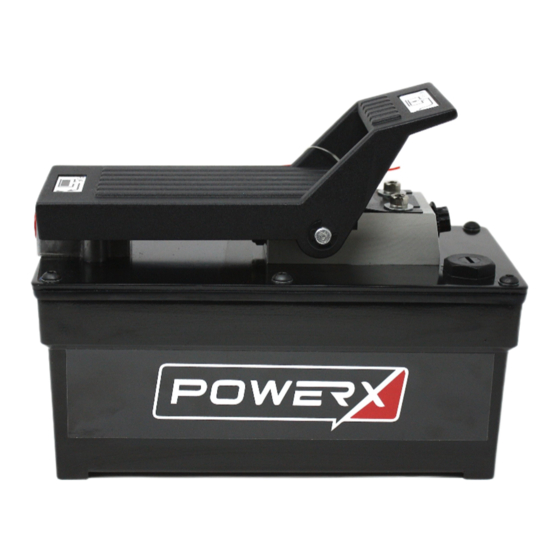

Model PA6 Family
Air/Hydraulic Pump 10,000 PSI Capacity
Safety/Warning - Set-up - Operating - Maintenance Instructions
IMPORTANT - READ CAREFULLY
This manual contains important information about the correct installation, operation and maintenance
of this equipment. All persons involved in the installation, operation and maintenance of this equipment
must be thoroughly familiar with the contents of this manual. To safeguard against the possibility of
personal injury or property damage, follow the recommendations and instructions of this manual. Keep
this manual for reference.
WARRANTY STATEMENT
PowerX products are warranted to be free of defects in materials and workmanship under normal use,
please go to www.powerxinternational.com to review our complete warranty policy. This warranty does
not cover: normal wear & tear, cosmetic items, abuse, overloading, alterations, improper lubrication, or
use in a manner for which they are not intended. If the customer believes a product is defective, the
product must be delivered, or shipped freight prepaid, to the nearest PowerX Authorized Service Center
for evaluation and repair.
RECEIVING INSTRUCTIONS
Important! Make sure to inspect all of the components for shipping damage. If damage is found, notify
carrier at once. Shipping damage will not be covered by warranty. The carrier is responsible for all loss
associated with shipping damage.
CONTENTS
SECTION
Receiving Instructions ...............................................................................................................................1.0
Safety ........................................................................................................................................................2.0
Technical Specifications ............................................................................................................................3.0
Basic Operation and Function ...................................................................................................................4.0
Basic Operation .........................................................................................................................................4.1
After Completing the Job ..........................................................................................................................4.2
Periodic Maintenance ...............................................................................................................................5.0
Maintain Oil Level .....................................................................................................................................5.1
Troubleshooting ........................................................................................................................................6.0
D0136 RevC
1
C19-01-01
Advertisement
Table of Contents
Summary of Contents for Powerx PA6 Series
- Page 1 WARRANTY STATEMENT PowerX products are warranted to be free of defects in materials and workmanship under normal use, please go to www.powerxinternational.com to review our complete warranty policy. This warranty does not cover: normal wear & tear, cosmetic items, abuse, overloading, alterations, improper lubrication, or use in a manner for which they are not intended.
- Page 2 Make sure to read the instructions, warnings and precautions carefully. Follow all recommended safety precautions to avoid personal injury or damage to the unit. PowerX cannot be responsible for any damage or injury from unsafe use, lack of maintenance, or incorrect operation. In the event any questions or concerns arise, contact PowerX or a local PowerX Distributor for clarification.
- Page 3 not expose equipment to temperatures of 65° C (170° F) or higher. Protect hoses and cylinders from weld spatter. WARNING: Do not handle pressurized hoses. Escaping oil under pressure can penetrate the skin, causing serious injury. If oil is injected under the skin, see a doctor immediately. Untreated oil injection could be fatal, but normally just causes severe injury.
- Page 4 3/8” NPT quick disconnect coupler or hose to the oil outlet side that is rated for 10,000 psi. (PowerX recommends that a gauge adaptor and 10,000 PSI gauge be used during operation). Connect the pump to tooling (I.e. cylinder, bender, or cutter) 3.
- Page 5 PA6-231, PA6-231D, PA6-460D 2.25" 1.5" 4. Use PowerX oil only (Model PL-1, 1 gallon). Using oil other than PowerX Brand may void the pump warranty. 5. Wipe up any spilled fluid and install oil filler screw. 6. Return pump to original position (parallel to a flat level surface), reconnect application and air source.
- Page 6 Check hydraulic oil level every 30 hours of operation (sight gauge should be completely covered in oil when all tools are retracted. Add PowerX oil (Model PL-1 – 1 gallon) when necessary. Oil level should be no more than 1/2” from top of reservoir plate (see chart in 5-B) – with cylinders retracted and motor off.
