- Page 1 Cover ASHA Beam Profile Thermal Power Meter Bundle PMB-201...
-
Page 2: About Us
ASHA Beam Profile, was established in 2016. ASHA has been able to design a wide range of devices, relying on indigenous capability and knowledge. Also, since being calibratable is essential for measuring equipment, clients can carry out their period- ical calibration. -
Page 3: Main Features
The thermal power meter is designed for high power laser applica- tions. The products of this company can well meet the needs of the scientific and industrial community in the field of power metering. WWW.ASHA-CO.IR... -
Page 4: Features
» Measure the intensity of reflection/passing beam from different surfaces Warning! With regard to the items listed in the requirements section, to maximize the accuracy of the device, it is strongly recommended to connect the power meter earth to the standard one. WWW.ASHA-CO.IR... -
Page 5: Technical Feature
Wavelength Range 0.19 µm Optical Power Working Range >10 2×10 Display Power Range Output Voltage <2.5 Ranges 0.01 ~ 0.1999 0.01 ~ 1.999 0.1 ~ 19.99 ±5% + 100 ±5% + 10 ±5% + 5 Measurement Uncertainty Counts Counts Counts WWW.ASHA-CO.IR... - Page 6 50x40x18 mm Dimention Console 180x165x70 mm Detector < 300 gr Weight Console < 1000 gr Detector Connection Output Connection Active Detector Area 20x20 mm Input Aperture Ø10 mm Display 2000 counts - 7segment Figure 1. Thermal Power Meter Detector WWW.ASHA-CO.IR...

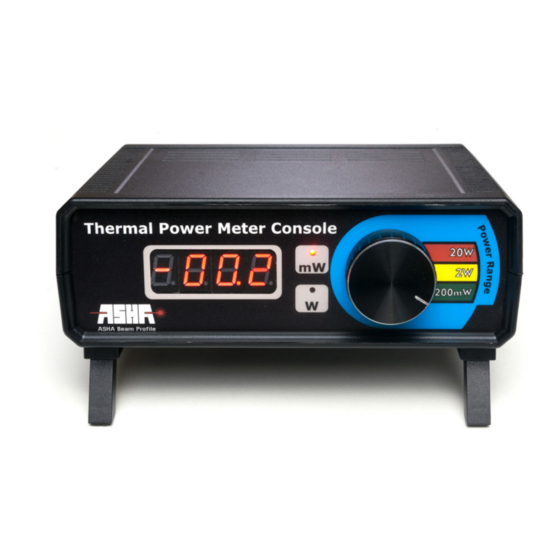

- Page 7 Figure 2. Thermal Power Meter Console - Front View Figure 3. Thermal Power Meter Console - Back View WWW.ASHA-CO.IR...
-
Page 8: Table Of Contents
Contents About Us ................2 Field of activity Main features ..............3 Introduction Features Applications Technical Feature Power Meter Parts ............. 9 Packaging Content Detector Parts Console Parts Setup ................13 Safety Preparation and measurement Requirements WWW.ASHA-CO.IR... -
Page 9: Power Meter Parts
» Thermal Sensor » Photodiode Power Meter Console » User Manual » 5V Power Supply » Multimeter Connector Cable » M4 Screw » M6 Screw Digital version of this user manual is available by scanning the QR- code undwer the console. WWW.ASHA-CO.IR... -
Page 10: Detector Parts
Detector Parts 1. Anodised Aluminum Body 2. M4 screw for vertical aligning 3. M6 screw for vertical aligning 4. Detector Screws(if open, guarantee void) 5. Input aperture Figure 4. Thermal Power Meter Detector - Front View WWW.ASHA-CO.IR... -
Page 11: Console Parts
4. Charging status LED (depends on order) 5. ON/OFF Key 9. Output (BNC) 6. Input Power 10. To download datasheet scan 7. Detector connector this QRcode 8. Offset null volume Figure 6. Back Parts of Thermal Power Meter Console WWW.ASHA-CO.IR... - Page 12 Pinout Figure 7. Pinout - Thermal Power Meter Detector WWW.ASHA-CO.IR...
-
Page 13: Setup
All parts should be connected to each other with a suitable and shielded cable. If you need to re- place some parts of Asha’s company with others, you need to in- form ASHA’s Technical support. If any changes in the compo- nents of the product are applied, it may lose its functionality. -
Page 14: Preparation And Measurement
In this case, the charging light turns on, which means that the battery is charging and you can use the console at the same time. When the battery is fully charged, the red light will WWW.ASHA-CO.IR... - Page 15 One of the important applications of this feature is the removal of the background radiation from the end result, which is very useful in environments with unwanted background radiation. WWW.ASHA-CO.IR...
-
Page 16: Requirements
It is necessary to mention that this power meter is very precise and sen- sitive and due to the precision the device output (listed in the table), in order to use full capabilities of the device, it is recommended to use voltmeters with the accuracy better than 100μV. WWW.ASHA-CO.IR... - Page 17 Drawings Figure 8. Thermal Power Meter Console - Dimensions WWW.ASHA-CO.IR...
- Page 18 Figure 9. Thermal Power Meter Detector - Dimensions WWW.ASHA-CO.IR...
- Page 19 This page is left blank intentionally. WWW.ASHA-CO.IR...
- Page 20 Back...
