CPAT FLEX

Operation Manual

(IRXD)

v 1.0 / 2021.02.04

Part No. 100-00011-001

Table of Contents

Need help?

Do you have a question about the CPAT FLEX IRXD and is the answer not in the manual?

Questions and answers

Summary of Contents for Effigis CPAT FLEX IRXD

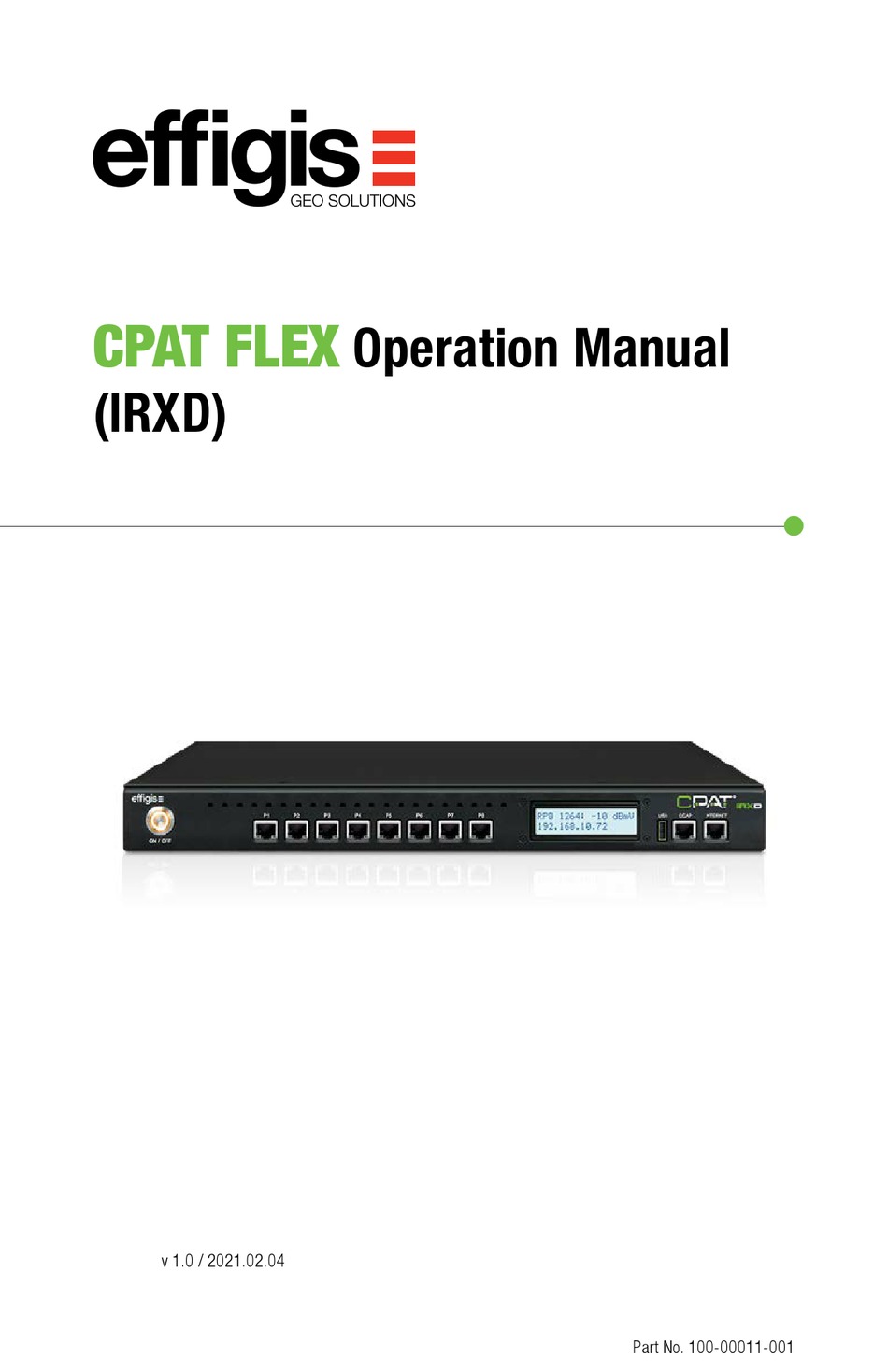

Page 1 CPAT FLEX Operation Manual (IRXD) v 1.0 / 2021.02.04 Part No. 100-00011-001...
Page 2 This document provides information proprietary to Ef gis and cannot be used or disclosed without Ef gis’ written authorization. Ef gis reserves the right to make changes without notice. Changes affecting the operation of any component in this manual will be re ected in a subsequent revision. Ef gis assumes no responsibility for any omissions or errors that may appear in this document or for any damages that may result from the use of information contained herein.
Page 3: Table Of Contents
ef gis.com Contents 1. General Information ......5 1.1 About this Manual ........5 1.2 Certi cations .
Page 4 8. Real-time Ingress Monitor (RIM) ....13 8.1 Login the RIM ........13 8.2 Choose the Proper ITX .
Page 5: General Information
1. General Information 1.1 About this Manual This manual describes the components, installation and operation of the CPAT FLEX IRXD unit. You will nd important safety information in this manual. We strongly recommend that all users read this manual. Use of this product other than for its intended application may compromise the unit’s safety features.
Page 6: Technitial Support
Modi cations: Any modi cations made to this device that are not approved by Ef gis Geo- Solutions Inc., may void the authority granted to the user by the FCC to operate this equipment. 1.3 Technical Support Ef gis Technical Support Service is available from Monday through Friday from 9:00 AM to 5:00 PM Eastern Time.
Page 7: Ingress Detection In R-Phy
ef gis.com 2. Ingress detection in R-PHY The IRXD is installed in the headend or data center where the elements of the CCAP core reside. When a vehicle (patrol mode) is driving in a ingress prone area, the Portable ITX2 test signal enter the coaxial plant and travel up to the RPD.
Page 8: Initial Veri Cation
3.1 Initial Veri cation Your IRXD unit is calibrated, and ready to use right out of the box. Upon reception, visually inspect each item for any damage that may have occurred during shipping. If you see any signs of physical damage, please contact Ef gis: •...
Page 9: Physical Installation
ef gis.com 4. Physical Installation 4.1 Rack Mounts Installation CAUTION! Leave space for front, back and lateral ventilation. CPAT FLEX Operation Manual (IRXD)
Page 10: Electrical Installation
4.2 Electrical Installation The AC/DC adapter is included within the equipment. It is compatible with 110 V/220 V voltages and 50/60 Hz power distribution networks. 4.3 CCAP and P1~P8 Ports P1~P8 and CCAP ports are connected on the internal network. CCAP port communicates with CMTS/CCAP by SNMP.
Page 11: Ndr Con Guration
ef gis.com 5.4 NDR Con guration Here is the con guration for RPD NDR channels: Con guration Value Destination IP Address One of P1~P8 IP Address (max 125 NDR channels by IRXD P1~P8 ports) Session ID Unique number for NDR channels used with IRXD [0~4,294,667,295] Center Frequency ITX2 center frequency (6.78 MHz, 27.12 MHz or other...
Page 12: Communication
Power OFF: • When ashing YELLOW, the system is in shutdown process while it is transferring its les to the CPAT servers. If IRXD doesn’t have access to the Internet, the maximum waiting time is 30 seconds before it is shutdown. The LCD let the user know information about the unit.
Page 13: Normal Mode Shutdown
ef gis.com 6.4.1 Normal Mode Shutdown In normal mode user should press the button on the front panel ON/OFF for 1 second then let the IRXD initiate its shutdown process than a message will follow on the front LCD indicating the device will turn off. 6.4.2 Force Mode Shutdown To force the IRXD to power down when running, press the ON/OFF button on the front panel for 3 seconds.
Page 14 Figure 1: RIM Login page throug the website Figure 1: RIM Login page throug the website NOTE NOTE The RIM is also available as a mobile application for iOs and Android. To The RIM is also available as a mobile application for iOs and Android. To download it, connect to the Apple App store (iTunes) or the Android App store download it, connect to the Apple App store (iTunes) or the Android App store (Google Play), and download the “CPAT”...
Page 15: Choose The Proper Itx
ef gis.com 8.2 Choose the Proper ITX Once the user is logged in the application or web site he must choose his ITX from the list and then he will be able to view all the data available from his ITX. Remember that the higher and then he will be able to view all the data available from his ITX.
Page 16: Updates And Recovery
Figure 4: Ingress level displayed from the application Figure 4: Ingress level displayed from the application NOTE NOTE The list of available ITX will differ from one user to another depending on their The list of available ITX will differ from one user to another depending on their respective access granted respective access granted 9.
Page 17: Manual System Recovery
ef gis.com 9.2 Manual System Recovery See the remote troubleshooting section. 10. Remote Troubleshooting It is possible to access the IRXD for remote assistance. Also, manual rmware and script updates can be achieved. If the problem is the internet connection, it will not possible to do Appendix A –...
Page 18: Physical Speci Cations
A.2 Physical Speci cations Dimensions [H x W x D] 1RU chassis 4.4 cm x 42.2 cm x 33 cm / 1.74’’x 16.6’’ x 13’’ Weight 2 kg / 4.4 lbs Appendix B – Our Services Ef gis offers a portfolio of services to deploy and support purchased equipment through its Customer Support organization.
Page 19: Limited Product Warranty
ef gis.com If possible, return the equipment using the original shipping container and materials. If the original container is not available, the unit should be carefully packed so that it will not be damaged in transit; when needed, appropriate packing materials can be obtained by contacting Ef gis’s Customer Support.
Page 20: Refurbished Parts And Prior Testing
THE REMEDIES EXPRESSLY PROVIDED IN THIS SECTION WILL BE THE CUSTOMER’S SOLE AND EXCLUSIVE REMEDIES AND SHALL BE IN LIEU OF ANY OTHER RIGHTS OR REMEDIES THE CUSTOMER MAY HAVE AGAINST EFFIGIS WITH RESPECT TO ANY NON-CONFORMANCE OF PRODUCTS. EXCEPT AS SPECIFIED IN THIS LIMITED PRODUCT WARRANTY, EFFIGIS MAKES NO EXPRESS REPRESENTATIONS OR WARRANTIES WITH REGARD TO ANY PRODUCT.
Page 21 EFFIGIS DISCLAIMS ALL IMPLIED WARRANTIES, CONDITIONS, AND REPRESENTATIONS INCLUDING, BUT NOT LIMITED TO, ANY WARRANTIES OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT, REGARDLESS OF THE LEGAL THEORY ON WHICH SUCH IMPLIED WARRANTY MAY BE BASED, INCLUDING, BUT WITHOUT LIMITATION, CONTRACT, COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
