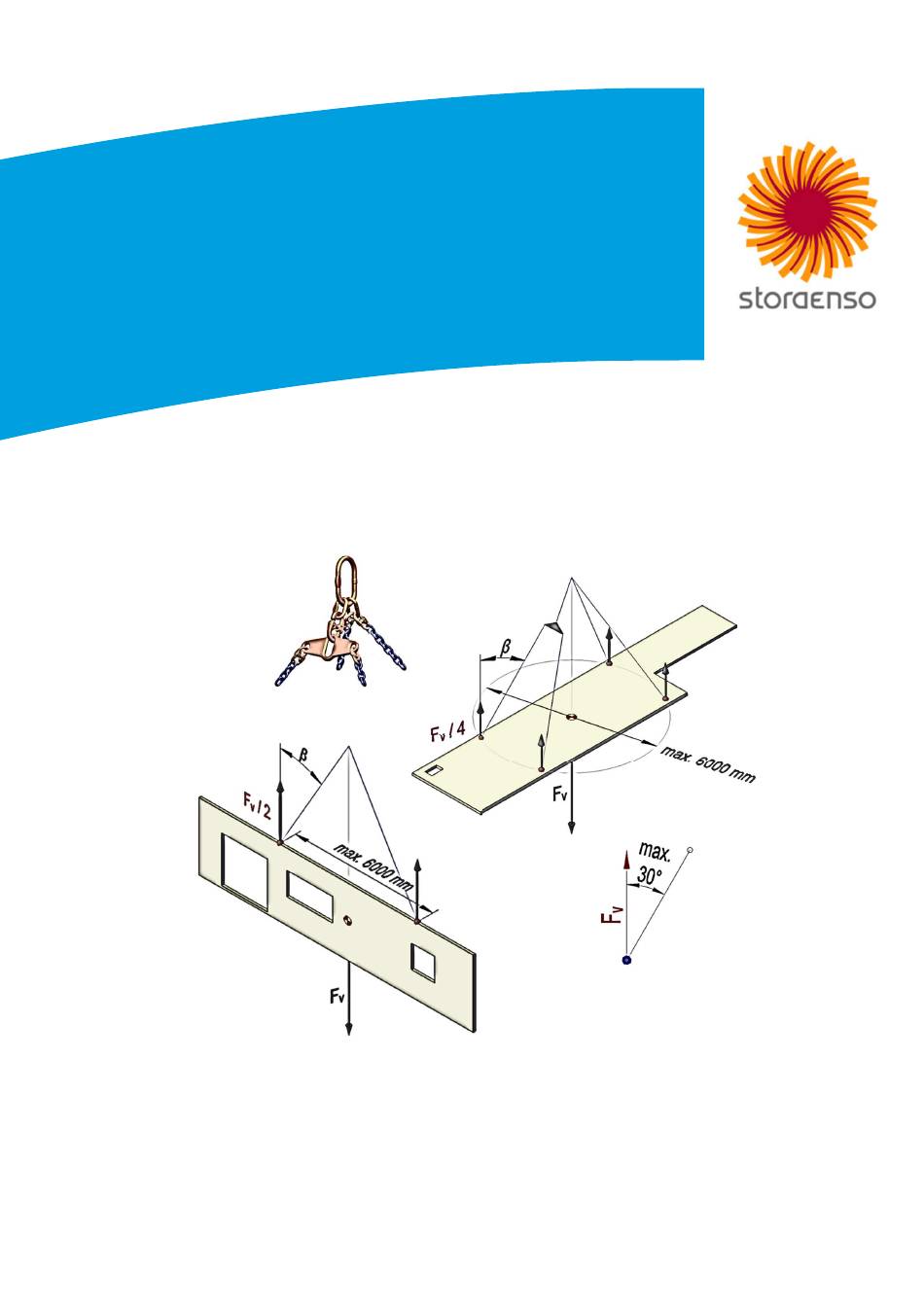

- Page 1 CLT Lifting Guideline Lifting devices for Cross Laminated Timber Version: 2021.06.02 Pages: 16...
-
Page 2: Table Of Contents
RAMPA insert with lifting loop ........................12 RAMPA lifting gear ............................. 13 Sihga Pick ..............................14 Floor ..............................14 Wall (on request) ..........................14 Power Clamp .............................. 15 Floor ..............................15 Wall (on request) ..........................15 Appendix ..............................16 2 (16) CLT Lifting Guideline... -
Page 3: Introduction
Introduction “Safety first” is one of Stora Enso’s most important principles and we constantly try to improve safety within our company and where it concerns our collaboration with suppliers and customers. This document is a general guideline and it only can point out the core items needed for planning of lifting devices delivered by Stora Enso. - Page 4 Therefore, three lifting points are only useful for quadratic or small panels. Wall panels are delivered in most cases horizontally. To upright such panels it has to be checked whether the load-bearing capacity of the selected lifting device works in both directions. 4 (16) CLT Lifting Guideline...
-
Page 5: Overview Lifting Devices
Overview lifting devices The lifting of CLT panels is a very important and responsible topic to be considered in the early planning phase. There are different lifting devices supported by Stora Enso, but not all can be used because of different national and/or own safety standards. It is the responsibility of the customer to verify the lifting devices that are permitted for their projects. -
Page 6: Lifting Sling - One Hole
All slings must always be checked for damages before each lifting cycle. The standard lifting method must be “Basket”. The sling is pre-mounted and delivered this way by Stora Enso and it is not allowed to choke afterwards. On demand exceptions are possible. But this must be clarified with Stora Enso and finally formally confirmed. -
Page 7: Lifting Sling - Two Holes
All slings must always be checked for damages before each lift. The standard lifting method must be “Basket”. The sling is pre-mounted and delivered this way by Stora Enso and it is not allowed to choke afterwards. On demand exceptions are possible. But this must be clarified with Stora Enso and finally formally confirmed. -
Page 8: Lifting Sling - With Blind-Hole And Dowel
All slings must always be checked for damages before each lift. The standard lifting method must be “Basket”. The sling is pre-mounted and delivered this way by Stora Enso and it is not allowed to choke afterwards. On demand exceptions are possible. But this must be clarified with Stora Enso and finally formally confirmed. - Page 9 Below parameters for drillings and load-bearing capacities of our standard CLT panels styles. If a panel style is not listed, then parameters for blind-hole and steel dowel must be done according to the following basic two rules: • t1 … The blind-hole should be as deep as possible but can be maximal 160 mm.
-
Page 10: Lifting Screw With Anchor
Use must be done according to the original instructions for use (technical data sheets). To always get the latest documents, we ask you to visit the homepage of supplier and/or contact their technical support. Please inform Stora Enso if here indicated links do not work correctly or if there is a relevant discrepancy with summarized info below. -
Page 11: Wall
β (°) (kg) (kg) (kg) VGS Ø11 VGS Ø11 Please note that screws may not be inserted parallel to grain direction. Thickness of concerned layer can be 20, 30 or 40 mm. * Not recommended. 11 (16) CLT Lifting Guideline... -
Page 12: Rampa Insert With Lifting Loop
Use must be done according to the original instructions for use (technical data sheets). To always get the latest documents, we ask you to visit the homepage of supplier and/or contact their technical support. Please inform Stora Enso if here indicated links do not work correctly or if there is a relevant discrepancy with summarized info below. -
Page 13: Rampa Lifting Gear
Use must be done according to the original instructions for use (technical data sheets). To always get the latest documents, we ask you to visit the homepage of supplier and/or contact their technical support. Please inform Stora Enso if here indicated links do work correctly or if there is a relevant discrepancy with summarized info below. -
Page 14: Sihga Pick
Use must be done according to the original instructions for use (technical data sheets). To always get the latest documents, we ask you to visit the homepage of supplier and/or contact their technical support. Please inform Stora Enso if here indicated links do not work correctly or if there is a relevant discrepancy with summarized info below. -
Page 15: Power Clamp
Use must be done according to the original instructions for use (technical data sheets). To always get the latest documents, we ask you to visit the homepage of supplier and/or contact their technical support. Please inform Stora Enso if indicated links do not work correctly or if there is a relevant discrepancy with basic info below. -
Page 16: Appendix
Appendix 16 (16) CLT Lifting Guideline...
