Summary of Contents for Freestyle Slides FreeStyle Cruiser NLS

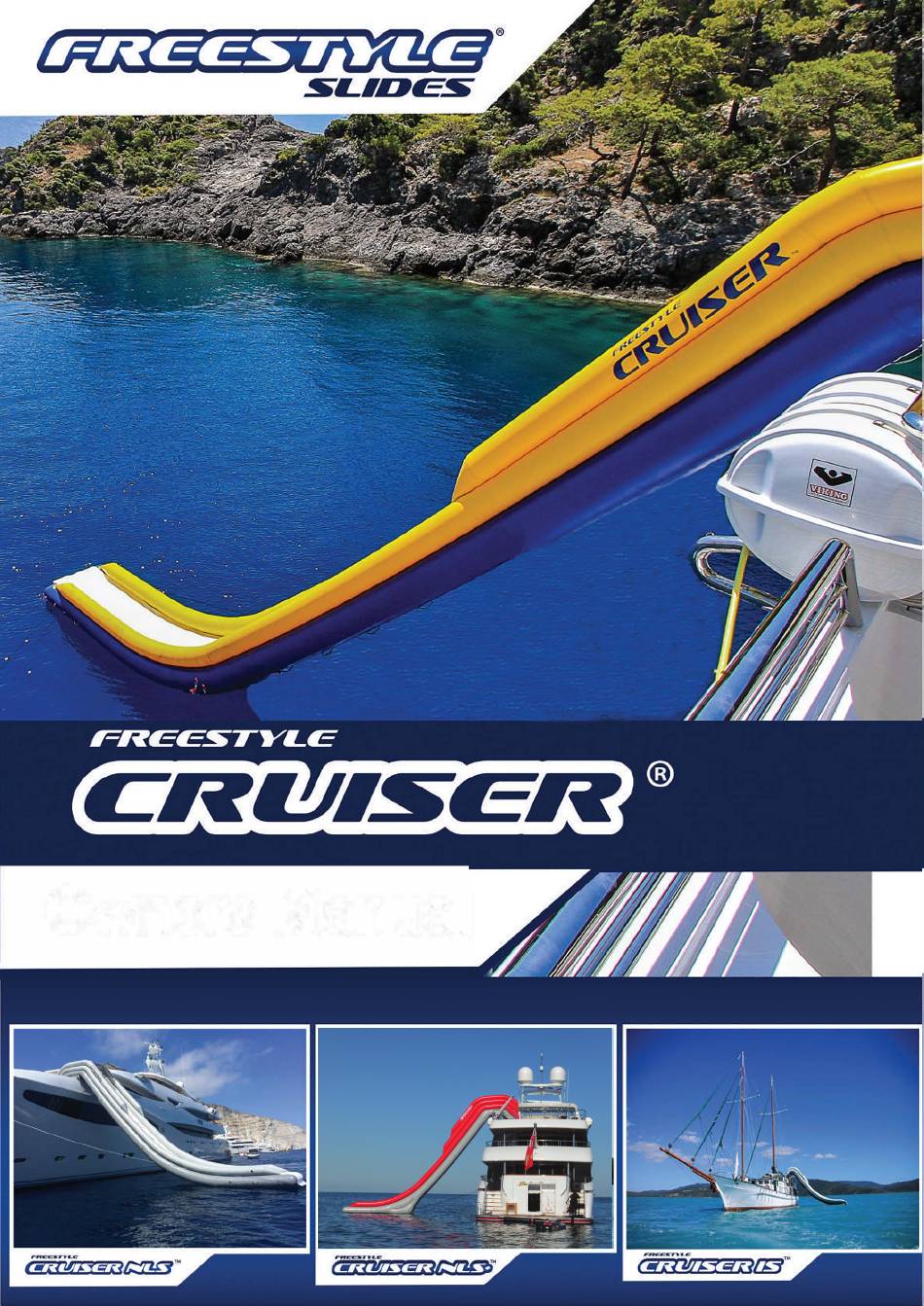

- Page 1 Owners Manual...
-
Page 2: Serial Number Label
Use good judgement and common sense when sliding! Side Arms - 1.5 psi Air Stairs - Until Firm DO NOT OVER INFLATE! Made in China for FreeStyle Slides, Inc.® WARRANTY MAY BE VOIDED DUE TO OVERINFLATION! Conforme aux exigences de securite Ser ial Number Label Each component of the FreeStyle Cruiser slide has a serial number label glued to it. - Page 3 SLIDE LIFTING HANDLES Every Cruiser slide has handles mounted under the body of the slide, on both sides, running the entire length of the slide down into the water. (Figure 1). These handles are for crew members to use from various decks as the slide is lifted or lowered into the water.
- Page 4 P ackage Ar r iv al Your FreeStyle Cruiser slide will arrive on 1 pallet. Inside the packaging you will find (1) body inflatable, (1) slide cover sheet (pre-attached), (2) inflatation pumps, (4) marine grade lashing ropes with (6) carabiners, (4) harness straps with (8) caribiners attached, (1) replace- ment Airstair bladder, ( 1 0 ) r e p a i r p a t c h e s , ( 1 ) p r e s s u r e g a u a g e ( m a y b e shipped separately), and...
- Page 5 Rules Do not DIVE or JUMP from the top of this slide, down the slide path, as serious injury could result. Please use common sense and good judgement when operating or playing on this product. The No Jump netting at the top of the slide should be used at all times and should not be removed for any reason.
- Page 6 Inst alla tion #1 Read and familiarize yourself with all of the instructions prior to starting the installation. These are the installation guidelines to follow if setting up the slide from the deployment deck. 1. Tie the ropes to the inflatable rings provided for future lashing back to the ship.
- Page 7 Slide Inst alla tion Continued 14. After the body is fully inflated and lashed back to the ship, it is time to inflate the Airstairs. The front of each step has a valve on it. Unscrew the valve cap where you will find a flap inside. Please do not play with the flap.
- Page 8 Air St airs The Airstairs are a unique feature of the FreeStyle Cruiser Slide. Each Airstair consits of a vinyl casing with a non-slip surface and an inflatable bladder inside. To fill the stair, remove the screw cap and aim the stream of air at the opening until the step is firm enough to step on.
- Page 9 W a ter Spra yer All FreeStyle Cruiser slides have built in water sprayers located on each side of the slide entry. The water sprayers have a unique universal hose fitting that will accept virtually any style of hose fitting. Insert the hose into the sprayer, secure it with the fitting, and turn on the water. The water will spray onto the slide slope.
- Page 10 Freestyle Cruiser Slide Anchor Instructions Vertical Height Horizontal Length Body Weight Player Requirements Max. Players - 1 at a time Max. Player Height - N/A Min. Player Height - Parental Discrection Max. Player Weight - 225 lbs / 102 kg Air Pumps - (2) 230v/50 Euro Plug Max Wind Speed - 15 mph Lashing the slide back to the ship should...
-
Page 11: Limited Warranty
Three (3) years from the date of shipment to the Client. B) Other Equipment (not manufactured for FreeStyle Slides®): No warranty of any kind is extended by FreeStyle Slides®, but FreeStyle Slides® will, to the extend it can legally and contractually do so, assign to the Client, at the Client’s request, all warranties on such Other Equipment, if any, o ered by the manufacturer or supplier of such Other Equipment.
