Summary of Contents for Home & Leisure Trex Wall Pergola

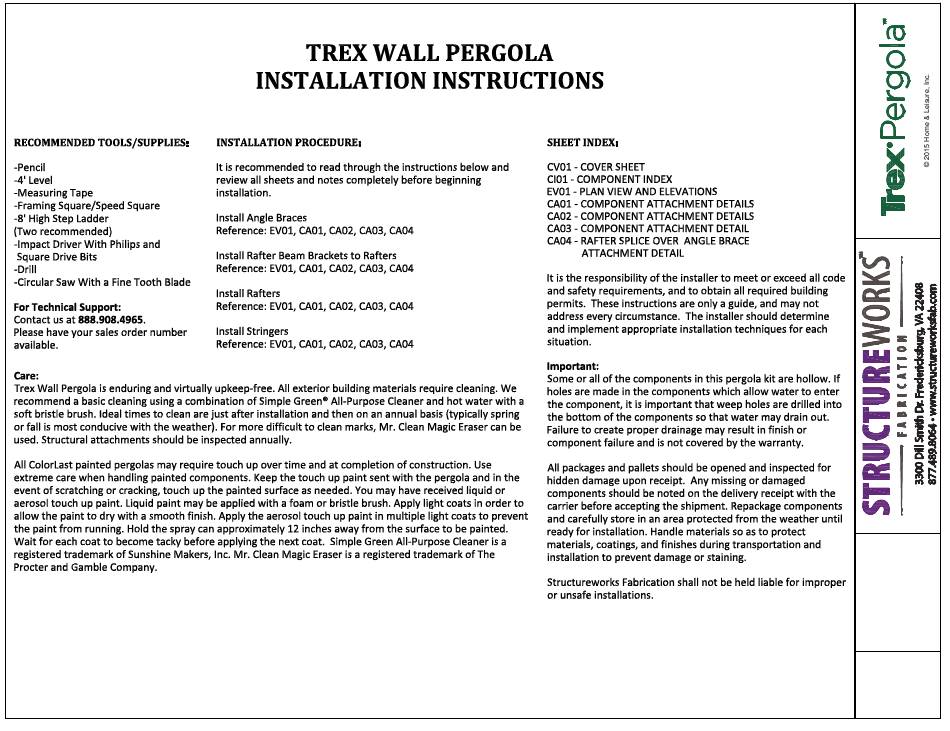

- Page 1 DRAWING TITLE: COVER SHEET SHEET: CV01...
- Page 2 1 1/2" x 1 1/2" Stringer 1 1/2" x 7 1/4" Freestanding Rafter Side Side Angle Brace Angle Brace Backer 1 1/2" x 7 1/4" Attached Rafter Side 1 1/2" x 7 1/4" Open Ended Rafter Side Side Side S.S. Rafter Beam Bracket DRAWING TITLE: COMPONENT INDEX Rafter #8 x 1 1/2" 410 S.S. #10 x 2 1/2" 410 S.S. S.S. Wall Bracket S.S. Angled Wall Keystone Square Drive Flat Phillips Flat Head Bracket Head Tek Screw Tek Screw SHEET: CI01...
- Page 3 Note: Reference provided shop drawings for specific dimensions. Stringer Varies Varies Varies Varies Plan View Trex Wall Pergola Varies Varies Rafter Angle Brace DRAWING TITLE: Angle Brace Backer PLAN VIEW AND Varies Varies Varies ELEVATIONS Front Elevation Side Elevation Trex Wall Pergola Trex Wall Pergola SHEET: EV01...
- Page 4 1 1/2" x 1 1/2" #10 x 2 1/2" 410 S.S. Phillips Stringer Flat Head Tek Screw 1 1/2" x 1 1/2" Stringer 1 1/2" x 7 1/4" Rafter 1 1/2" x 7 1/4" Rafter #8 x 1 1/2" 410 S.S. Square S.S. Rafter Beam Bracket fastened Drive Flat Head Tek Screw to Rafter and Beam Angle Brace using #8 x 1 1/2" 410 S.S. Square Drive Flat Head Tek Screws Lag screw fixed to lumber framed S.S. Wall Bracket host structure (not provided) #8 x 1 1/2" 410 S.S. Square Drive Flat Head Tek Screw Angle Brace Backer Angle Brace Angle Brace #8 x 1 1/2" 410 S.S. Square S.S. Angled Wall Bracket Drive Flat Head Tek Screw DRAWING TITLE: Angle Brace Backer COMPONENT ATTACHMENT DETAILS SHEET: CA01...
- Page 5 Angle Brace Angle Brace Backer S.S. Wall #10 x 2 1/2" 410 S.S. Phillips Bracket Flat Head Tek Screw Lag screw fixed to lumber framed or masonry host structure (not provided) #8 x 1 1/2" 410 S.S. Square 1 1/2" x 1 1/2" Drive Flat Head Tek Screw Stringer 1 1/2" x 7 1/4" Rafter Detail B S.S. Rafter Beam Bracket fastened Angle Brace Backer to Rafter and Beam Angle Brace using #8 x 1 1/2" 410 S.S. Square Angle Brace Drive Flat Head Tek Screws Lag screw fixed to lumber framed or masonry host structure (not provided) Detail A S.S. Angled DRAWING TITLE: Wall Bracket COMPONENT Angle Brace #8 x 1 1/2" 410 S.S. ATTACHMENT Square Drive Flat Head Tek Screw DETAILS Detail D SHEET: CA02...
- Page 6 #8 x 1 1/2" 410 S.S. Square Drive Flat Head Tek Screw #10 x 2 1/2" 410 S.S. Phillips Flat Head Tek Screw S.S. Rafter Beam Bracket Angle Brace Angle Brace Backer 1 1/2" x 7 1/4" Rafter 1 1/2" x 1 1/2" Stinger DRAWING TITLE: COMPONENT ATTACHMENT DETAIL Component Attachment Detail SHEET: CA03...
- Page 7 1 1/2" x 7 1/4" Rafter Spliced over Beam #8 x 1 1/2" 410 S.S. Square Drive Rafter Keystone Flat Head Tek Screw 1 1/2" x 7 1/4" Rafter #8 x 7/8" 410 S.S. Phillips Flat Head Tek Screw S.S. Rafter Beam Bracket Angle Brace Angle Brace Backer DRAWING TITLE: RAFTER SPLICE OVER ANGLE BRACE ATTACHMENT Rafter Splice over Angle Brace Attachment Detail DETAIL SHEET: CA04...
