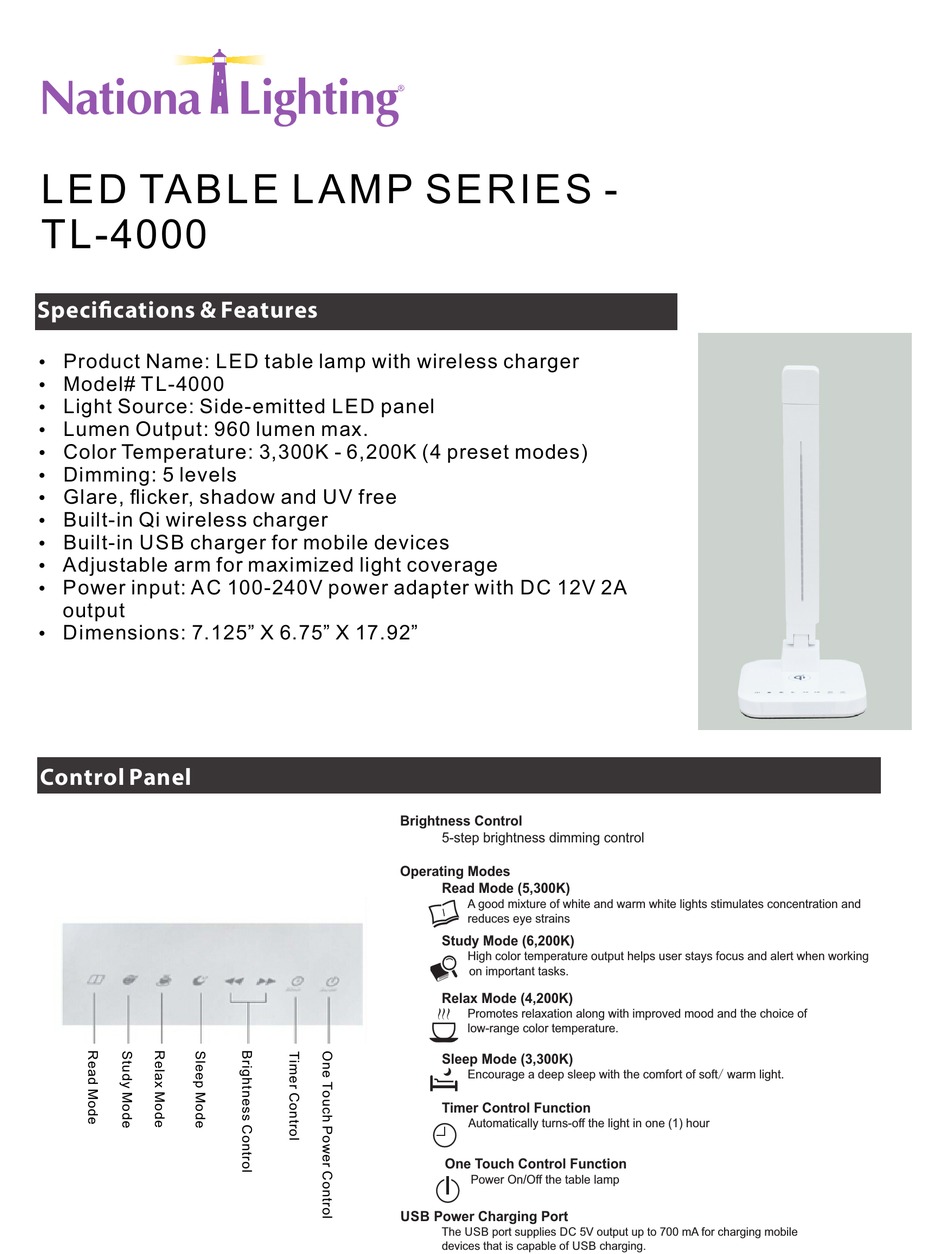

National Lighting TL-4000 Quick Start Quide

LED TABLE LAMP SERIES -
TL-4000
Speci cations & Features
Product Name: LED table lamp with wireless charger
Ÿ
Model# TL-4000
Ÿ
Light Source: Side-emitted LED panel
Ÿ
Lumen Output: 960 lumen max.
Ÿ
Color Temperature: 3,300K - 6,200K (4 preset modes)
Ÿ
Dimming: 5 levels
Ÿ
Glare, flicker, shadow and UV free
Ÿ
Built-in Qi wireless charger
Ÿ
Built-in USB charger for mobile devices
Ÿ
Adjustable arm for maximized light coverage
Ÿ
Power input: AC 100-240V power adapter with DC 12V 2A
Ÿ
output
Dimensions: 7.125" X 6.75" X 17.92"
Ÿ
Control Panel
Brightness Control
5-step brightness dimming control
Operating Modes
Read Mode (5,300K)
A good mixture of white and warm white lights stimulates concentration and
reduces eye strains
Study Mode (6,200K)
High color temperature output helps user stays focus and alert when working
on important tasks.
Relax Mode (4,200K)
Promotes relaxation along with improved mood and the choice of
low-range color temperature.
Sleep Mode (3,300K)
Encourage a deep sleep with the comfort of soft/ warm light.
Timer Control Function
Automatically turns-off the light in one (1) hour
One Touch Control Function
Power On/Off the table lamp
USB Power Charging Port
The USB port supplies DC 5V output up to 700
mA for charging mobile
devices that is capable of USB charging.
