General description

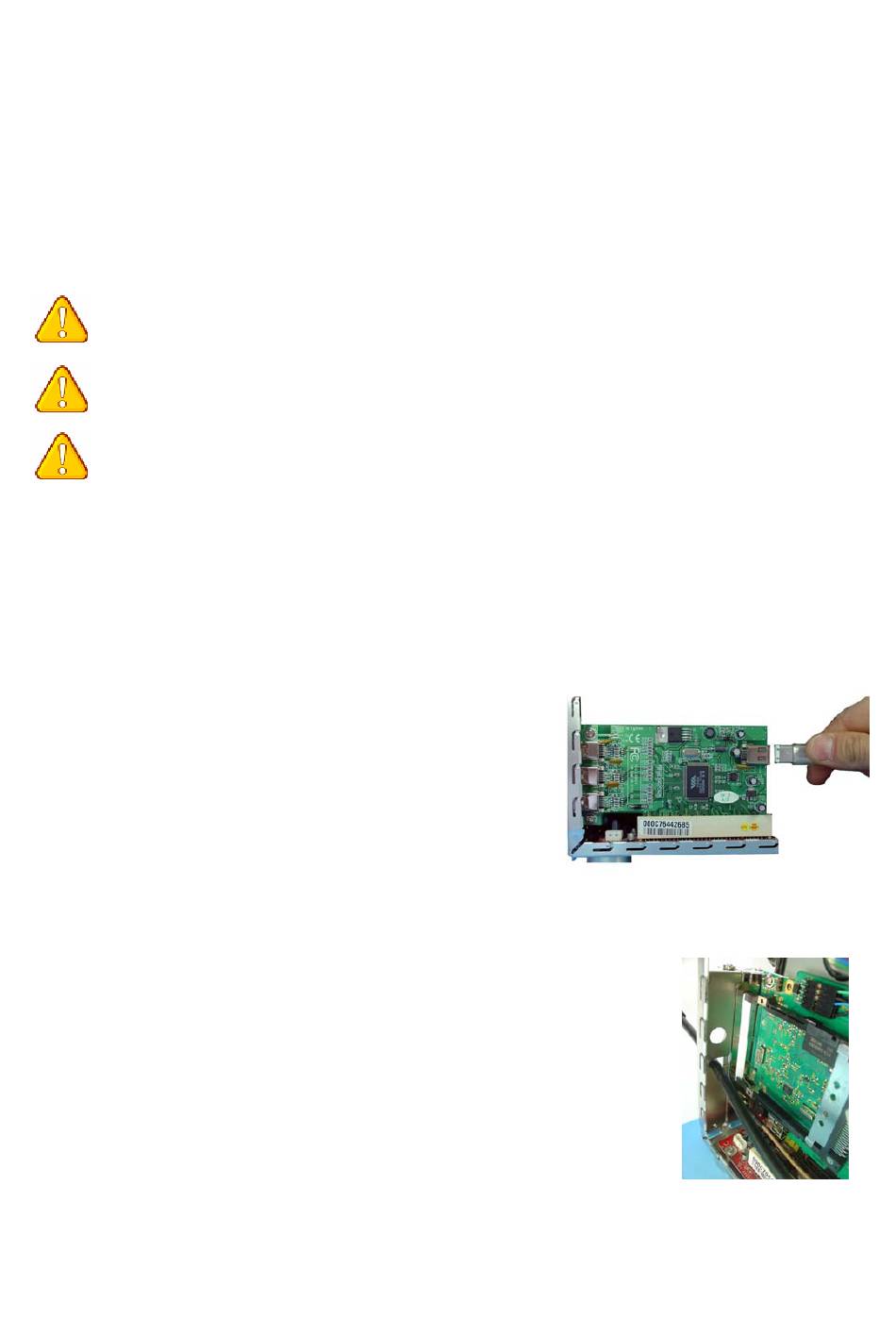

This guide describes how to install your FloppyDTV either in PCI slot or in a 3,5" Floppy bay of your
computer.
Please follow the instructions described below very carefully to avoid damages to your
computer or your FloppyDTV!
Before assembling the FloppyDTV turn your computer off!!!
"FireWire", is sometime also called "IEEE1394" or "iLink".

1. How to connect the FireWire cable of the FloppyDTV

There are three possibilities to connect the FireWire cable depending on the FireWire controller
located in your computer.

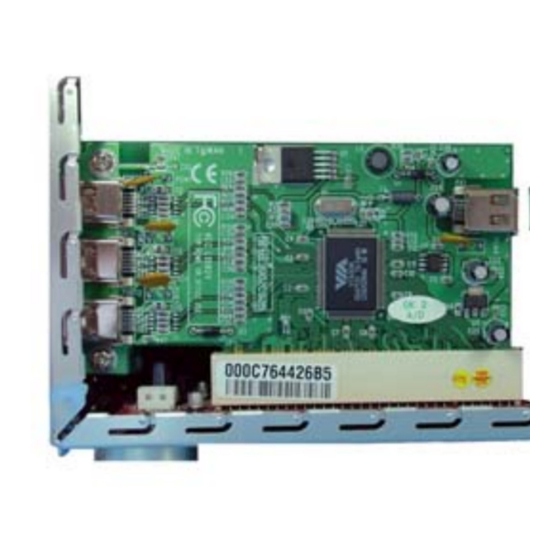

1.1 FireWire controller on PCI or PCI-e card with internal connectors

•
Locate the internal FireWire connectors and plug the
FireWire cable (see Picture)

1.2 FireWire connectors on back side of the PC

•
Locate an unused PCI-Slot in the computer and replace the PCI-
Bracket with the one supplied with the FloppyDTV. Pull the FireWire
cable trough the cut-out in the PCI bracket.
•
Connect it to a free FireWire connector (sometimes marked with
IEEE1394)
070928-v2.1
FloppyDTV
Assembly guide
Page 1
www.digital-everywhere.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FloppyDTV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digital Everywhere FloppyDTV

  • Page 1 FloppyDTV Assembly guide General description This guide describes how to install your FloppyDTV either in PCI slot or in a 3,5" Floppy bay of your computer. Please follow the instructions described below very carefully to avoid damages to your computer or your FloppyDTV! Before assembling the FloppyDTV turn your computer off!!! "FireWire", is sometime also called "IEEE1394"...
  • Page 2 WARNING: Plug in the cable Cut here The Pin1 on the 10 Poles connector of the FloppyDTV is the one with a Green wire starting from it (Pin10 is the one with a large Black Wire) • Carefully identify the Pin1 of the FireWire connector on the Motherboard and plug the 10 Poles connector to the motherboard matching the Pin 1 of the cable to the Pin 1 of the motherboard.
  • Page 3 3. PCI / PCI-e Slot assembly instructions The FloppyDTV fits on PCI, PCI-e or also on any other similar empty slot in the computer housing. To mount a FloppyDTV into the PCI slot of your computer please follow the instructions below.
  • Page 4 4. Hard Drive or Floppy Drive bay assembly instructions The FloppyDTV can be mounted on any 3,5" bay in the computer using a special 3,5" adapter. The 3,5" Adapter is not included in all the available versions of the FloppyDTV. Contact your dealer if your versions doesn't include the 3,5"...
