- Page 1 OPERATIONS AND MAINTENANCE MANUAL EcoStream and EcoStream+ Models ECS60R / ECS100R / ECS150R / ECS250R / ECS310R...
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS ........................3 SAFETY INSTRUCTIONS ........................ 4 OVERVIEW ..........................5 Reactor Chamber ........................5 Control Panel .......................... 5 Standard Electronics ....................... 5 REACTOR CHAMBER COMPONENTS DIAGRAM ................6 INSTALLATION ..........................8 UV Intensity Sensor Calibration Resetting ................9 MAINTENANCE ......................... -
Page 4: Safety Instructions
UV system while the UV lamp is outside of the UV chamber. Congratulations on choosing the EcoStream range of ultraviolet systems from Alfaa UV. Each unit is designed to provide safe, reliable disinfection performance year after year with minimal... -
Page 5: Overview

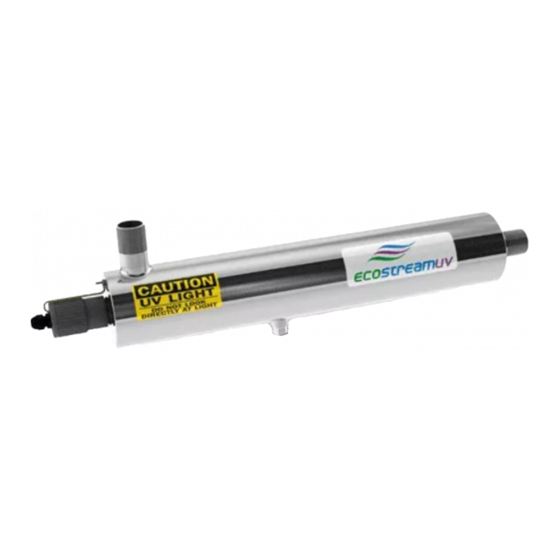

All EcoStream UV systems use only a single UV lamp. The lamps used in the Alfaa EcoStream Models ECS60R – ECS310R are of a special high intensity, high output and Amalgam germicidal type. The chamber is designed to mount both horizontally or vertically and should be secured to a suitable support. -
Page 6: Reactor Chamber Components Diagram
REACTOR CHAMBER COMPONENTS DIAGRAM... - Page 7 *** WARNING -- DO NOT UNDERSIZE UNITS *** If exact transmission quality needs to be determined, have samples tested at a suitable lab using a proper spectrophotometer. Alternatively, you may contact Alfaa UV for a sample analysis. 2. Suspended Solids will act against a UV system by effectively shielding microorganisms from the ultraviolet light.
-
Page 8: Installation
INSTALLATION Please cross reference the numbers in brackets [] with the reactor component diagram provided. 1. Pick a suitable location for the reactor [1] and the control panel. Make sure that there is a minimum allowance of 1.2 meters (4 feet) of clear space at the connection end of the chamber to facilitate lamp replacement and servicing. -
Page 9: Uv Intensity Sensor Calibration Resetting
UV Intensity Sensor Calibration Resetting In case of a new installation or when the lamp is replaced with a new one, it is important to reset the sensor calibration settings. This must also be performed in case a new sensor is being fitted to the system. -
Page 10: Maintenance
MAINTENANCE The basic unit is designed to operate with minimal maintenance requirements providing the minimum water characteristics are met as are outlined in the section “Application Guidelines”. However there are two regular maintenance requirements common to all UV systems: cleaning and lamp replacement. -
Page 11: Uv Intensity Sensor Cleaning
Lamp Replacement The UV lamp intensity decreases over time. The UV lamps used in the Alfaa EcoStream Models ECS60R – ECS150R are rated for approximately 9,000 hours of continuous use (approximately one year). The lamps used in models ECS250R and ECS310R are rated for 12,000 hours of continuous use. - Page 12 3. Now gently pull out the lamp harness and extract the lamp connector [5] and UV lamp [4] from the UV reactor [1]. Once you can visually see the lamp, separate the lamp from the connector by pulling them apart. Do not try twisting the connector as it will break. While it is OK to touch the ceramic ends of the lamp, avoid touching the UV lamp “glass”...
-
Page 13: Using The Ecostream (Basic) Controller
USING THE ECOSTREAM (BASIC) CONTROLLER MODELS ECS60R / ECS100R / ECS150R WITHOUT UV INTENSITY SENSOR ONLY The EcoStream controller incorporates a high performance electronic lamp controller along with a 5 digit seven segment LED display to update the user with the status of the UV system. The controller also includes two soft-switches as follows: 1. -
Page 14: Using The Ecostream+ Controller
USING THE ECOSTREAM+ CONTROLLER MODELS ECS60R+ / ECS100R+ / ECS150R+ / ECS250R+ / ECS310R+ WITH INCLUDED UV INTENSITY SENSOR ONLY The EcoStream+ controller incorporates a high performance electronic lamp controller along with a 5 digit seven segment LED display to update the user with the status of the UV system. In addition to this the EcoStream+ models also incorporate a UV sensor which detects the specific 254 nm wavelength of the UV lamp. -
Page 15: Basic Operation
Basic Operation All EcoStream control boxes are equipped with a soft start on/off switch. When the main power to the system is turned on, the lamp will turn on directly. However, if required, the lamp can be turned off (and subsequently on) by using holding down the Power button on the EcoStream Control box for 2 seconds. -
Page 16: Uv Intensity Levels
UV Intensity Levels The following are the UV Intensity levels and they implications: Indicates the system is functioning within to normal a normal operating range Indicates the UV level is still within a safe level, however at this level the system should ... -
Page 17: Warranty
WARRANTY If, within 12 months from the date of original purchase, any component or any part of the Alfaa UV system covered by this Warranty proves to be defective in material or workmanship, Ace Hygiene Products Private Limited will at its discretion replace, repair or rectify the equipment. -
Page 18: Notes:notes
Notes:...
