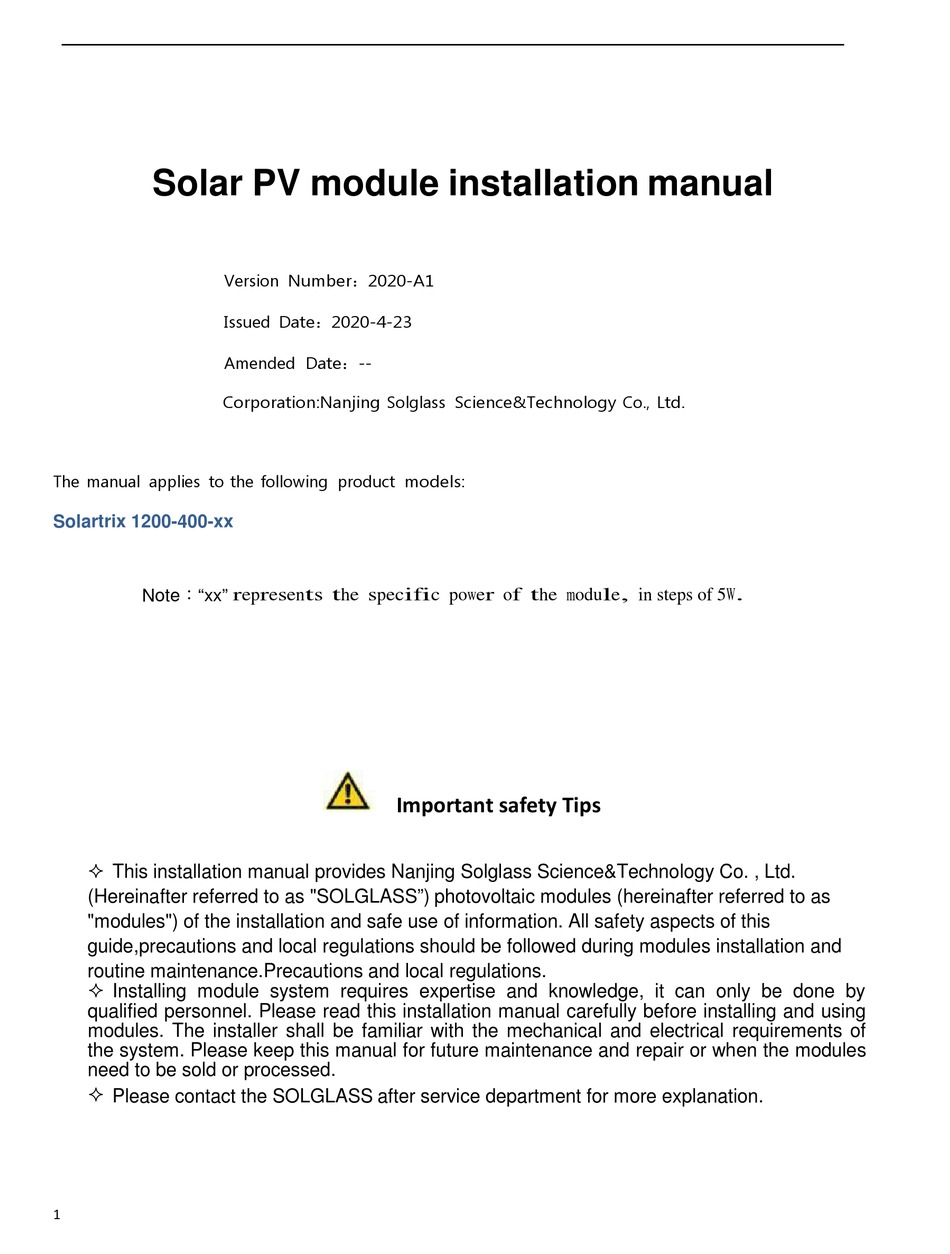

Solar PV module installation manual
Version Number：2020-A1
Issued Date：2020-4-23
Amended Date：--
Corporation:Nanjing Solglass Science&Technology Co., Ltd.
The manual applies to the following product models:
Solartrix 1200-400-xx
Note："xx" represents the specific power of the module, in steps of 5W.
This installation manual provides Nanjing Solglass Science&Technology Co. , Ltd.
(Hereinafter referred to as "SOLGLASS") photovoltaic modules (hereinafter referred to as
"modules") of the installation and safe use of information. All safety aspects of this
guide,precautions and local regulations should be followed during modules installation and
routine maintenance.Precautions and local regulations.
Installing module system requires expertise and knowledge, it can only be done by
qualified personnel. Please read this installation manual carefully before installing and using
modules. The installer shall be familiar with the mechanical and electrical requirements of
the system. Please keep this manual for future maintenance and repair or when the modules
need to be sold or processed.
Please contact the SOLGLASS after service department for more explanation.
1
Important safety Tips
Advertisement
Table of Contents
Summary of Contents for Solglass Solartrix 1200-400 Series
- Page 1 Note：“xx” represents the specific power of the module, in steps of 5W. Important safety Tips This installation manual provides Nanjing Solglass Science&Technology Co. , Ltd. (Hereinafter referred to as "SOLGLASS”) photovoltaic modules (hereinafter referred to as "modules") of the installation and safe use of information. All safety aspects of this guide,precautions and local regulations should be followed during modules installation and routine maintenance.Precautions and local regulations.
-
Page 2: Rules And Regulations
This installation manual contains important electrical and mechanical installation information that you should read firstly before installing the SOLGLASS PV modules. In addition, the manual contains some additional security information that you must be familiar with. All of the contents of the manual are part of SOLGLASS’intellectual property which comes from SOLGLASS’long term... -
Page 3: Safety Precautions
3. Safety precautions solar module structure and component description Solartrix 1200-400-xx Mounting fitting 1. cable 2.junction 3.cells 4. solar glass 5.connector 6.connecting slot 7.connecting hook... - Page 4 3.1Routine Safety Solglass's module design complies with international IEC 61215 and IEC 61730 standards, and its application rating is Class A: The module can be used for systems with voltage higher than 50V or 240W DC. And the module has passed IEC 61730-1 and IEC 61730-2, the module meets the requirements of Class II.
-
Page 5: Operation Safety
Never touch a wet connector without wearing a personal protective device or rubber gloves. Do not use a mirror or magnifying glass to manually focus the sunlight on the module. 3.3 Operation Safety During transportation and storage, do not open SOLGLASS's package unless the package has arrived at the installation site. - Page 6 If the module is installed in a place with frequent lightning activity, the module must be protected against lightning strikes. Do not install modules in a place where flammable gases may be present. The SOLGLASS’s module shall not be installed in a place where strong corrosive substances such as salt, brine, or any other material may corrode the modules, affecting its safety or performance.
-
Page 7: Mechanical Installation
SOLGLASS recommends that when the module is installed by the sea, it needs to be treated to prevent corrosion at the installation site. 4.2 Inclination selection Installation angle of module: The angle between the surface of the module and the horizontal ... -
Page 8: Installation Method
5.2.1Install module by link channel Please use the link channel provided by SOLGLASS, which are arranged on the roof bracket through the slot, and then place the module on the connecting hook, each link channel is 20 cm apart from each other, evenly arranged on the roof bracket, the top and bottom modules are aligned. -
Page 9: Electrical Installation
Installation steps 6. Electrical installation 6.1 Electrical property There is a tolerance between the nominal values of modules such as Isc, Voc and Pmax under standard test conditions, perhaps the value is relatively higher compare to the value obtained under component standard test conditions. Therefore, in the determination of photovoltaic system accessories, such as rated voltage, wire capacity, fuse capacity and module power output and related parameters, the relating short current and open voltage amplify 1.25 times can be applied. - Page 10 Under normal conditions, a photovoltaic module is likely to experience conditions that produce higher current and/or voltage than reported at standard test conditions. Accordingly, the values of Isc and Voc. marked on this PV module should be multiplied by a factor of 1,25 when determining component voltage ratings, conductor current ratings, and size of controls (e.g.
- Page 11 When the modules are connected in a series, the final voltage is the sum of the individual module, and when the modules are connected in parallel, the final current is the sum of the individual module, as shown below. The modules with different electrical parameters cannot be connected in a series.
- Page 12 (According to the safety test of IEC 61730, the maximum system voltage of the SOLGLASS’s modules is DC1000V) If reverse current may flow through the module exceeding the maximum fuse current of the module, the module shall be protected by overcurrent protecting device that it has the same specification.
-
Page 13: Operation And Maintenance
Recommended diode：20SQ045 of Zhejiang Zhonghuan Sunter PV Technology Co.,Ltd. SOLGLASS's solar module junction box contains the bypass diode and is parallel connected to the cells string inside the module. When the hot spot occurs locally, the diode will pass only current through the non-hot spot cell, limiting the module's heat and performance loss. - Page 14 7.1 Visual inspection of modules Visual inspection of the modules of the appearance of defects, especially 1, the module glass broken. 2. Corrosion of the welding at the main busbar of the cell : Due to during installation or transportation, the insulating material is damaged, causing moisture entering into the module. 3.
