MATLOCK CRP130 Instructions & General Information

MTL-941-2020K_Intructions.qxd

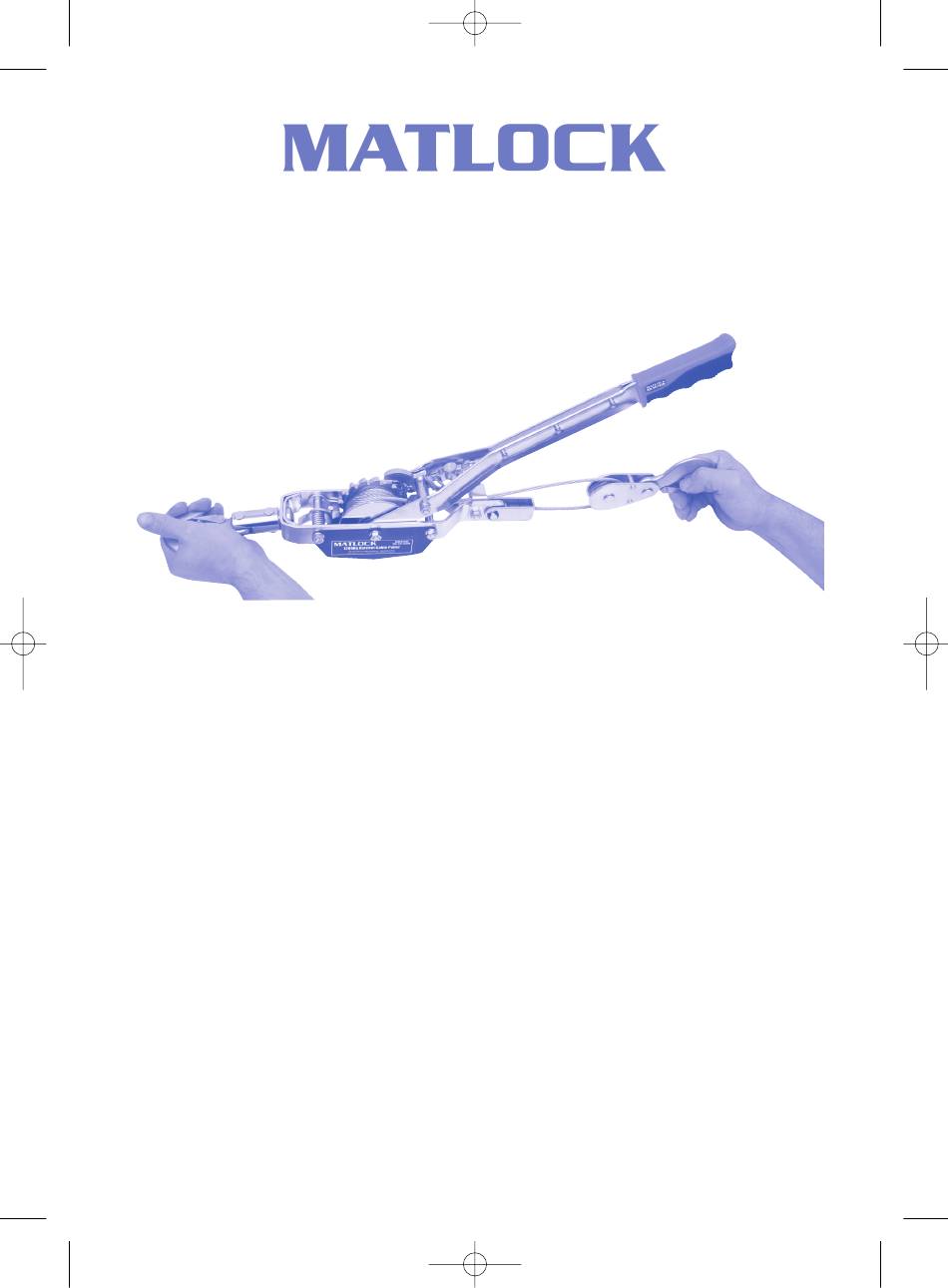

Ratchet Cable Puller
Model CPR130 ORDER CODE MTL-941-2020K
INSTRUCTIONS &
Suitable for Pulling :–
Trees & Roots, Fencing Wires, Vehicles, Machines,
Boats, Trailers, Caravans, etc. – NOT Suitable for Lifting!

Specifications:

Safety Precautions

• Always inspect the puller for damage before use.
• Always keep tension on the cable when releasing from or winding onto the drum.
• Always know how much load you are pulling, NEVER OVERLOAD!
• Always use adequately tested accessories for the load you are pulling.
• Always make sure the work area is free and clear of any onlookers before starting the pull.
• Do not operate with the cable completely unwound from the drum, keep at least 3 full turns on the drum at all times.
• Do not pull the cable over or around a corner/edge.
• Do not wrap the cable around any object and hook it back onto itself
• Do not operate the puller with frayed, kinked or twisted cable
• Hand operate only, do not attempt to operate with a powered device.
• Never use a pipe to lengthen the lever to get additional leverage as this will bend or break the lever, damaging the tool.
22/10/2010
1300Kg
GENERAL INFORMATION
Capacity - 1300Kg Cable Diameter - 5mm
Cable Length - 3.6 metres Pulling distance - 1.5 metres
06:43 Page 1
Leverage - 15 : 1
Ratchet - Single
