LWRE2012

Universal LED Exit Light

PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION.

Important:

It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,

ensure that the electricity supply has been switched oﬀ and isolated. Installation must be carried out in

accordance with the relevant Australian and International Standards.

Speciﬁcation:

Operating Supply

: 220-240V / 50-60Hz

Operating Mode

: Maintained and Non-maintanined Switchable

Operating System

: Self-Testing

Battery

: LiFePo4

Compliance

: AS 2293

Viewing

: 24m

Mounting

: Ceiling /Wall Mount, Suspended from Ceiling

Installation:

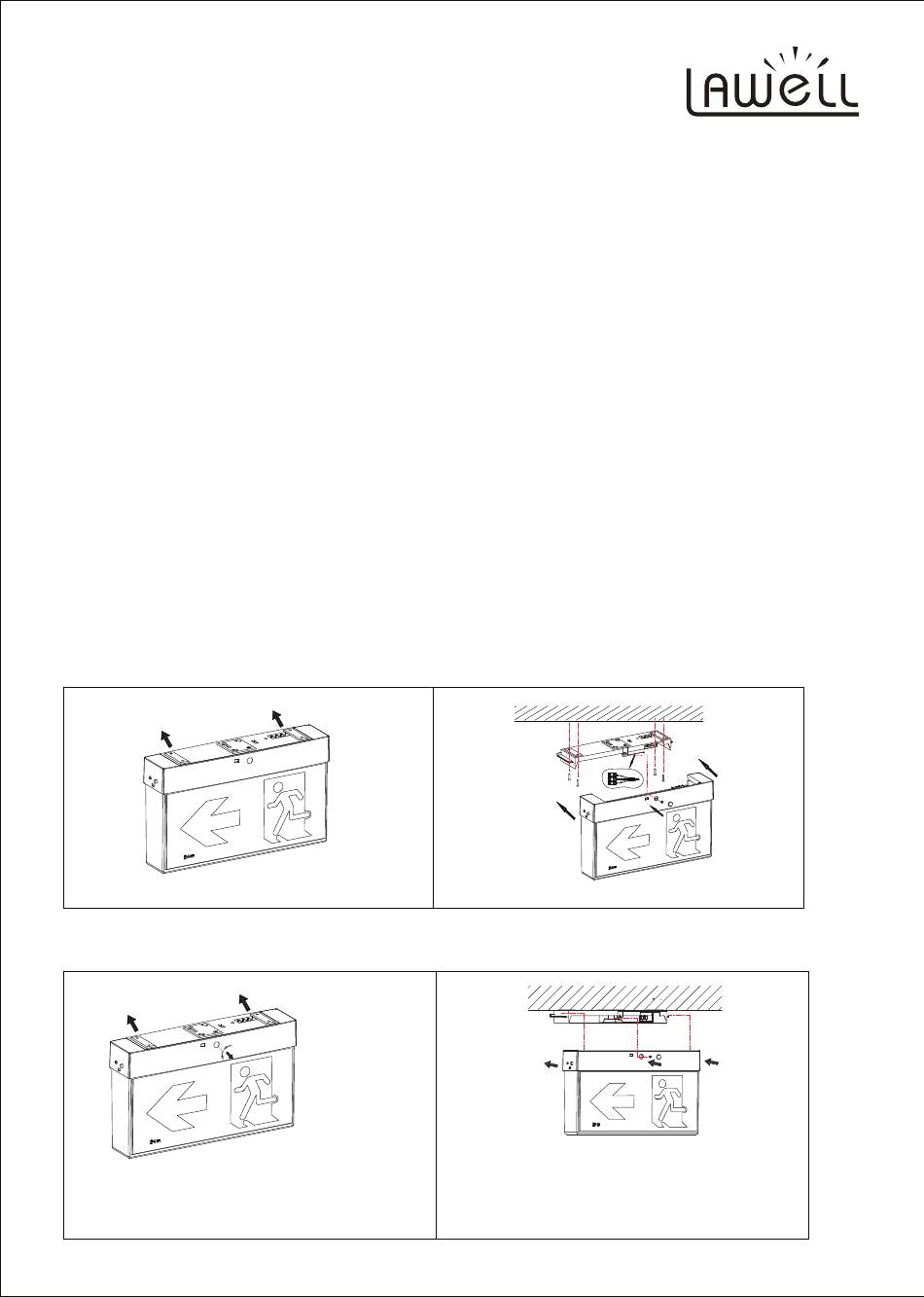

1. New Install with LWRE2012

Remove the cover using a ﬂat blade screwdriver, release the clip by pushing in and down.

The top cover can then be removed by sliding it away from the screwdriver.

The cover must be mounted prior to attaching to the body (see Fig.2).

Mount cover and connect wiring to termials.

Assemble the product by sliding the body into place.

2. Replacement with existing Clevertronic Base

Fig.1

Use a tool to take oﬀ the Round locking tab from the base;

Remove the plate by sliding it away;

PLEASE RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

Fig.1

Fig.2

Asemble the body to the base, then push the round locking tabs

back in with supplied screw, to complete the process.

Fig.2

Table of Contents

Need help?

Do you have a question about the LWRE2012 and is the answer not in the manual?

Questions and answers

Summary of Contents for AWELL LWRE2012

Page 1 : Ceiling /Wall Mount, Suspended from Ceiling Installation: 1. New Install with LWRE2012 Remove the cover using a ﬂat blade screwdriver, release the clip by pushing in and down. The top cover can then be removed by sliding it away from the screwdriver.
Page 2 Terminal B Fig.1 Fig.2 Use a tool to take oﬀ the Round locking tab and Square locking Terminal A: Fit Clevertronic and LWRE2012 Base tab from the base Terminal B: Fit Ektor Base Fig.4 install the terminal to position “E”...
Page 3 1 Normal constant 240V Green is on when fully charged 2 Normal constant 240v Red is on when NOT fully charged 3 Waiting for self-testing Red is ﬂashing slowly in 1Hz. (1 second) 4 Self-testing is going on Green is ﬂashing slowly in 1Hz. (1 second) 5 Quick start Self-testing Green is ﬂashing fast in 4Hz.
Page 4 8. Test Button Fuction: 1 Under Normal 240v Press and hold to enter into emergency mode, release to return normal. Manually press the button to clear the self-testing results. Manually press the button 5 times to trigger oﬀ Self-testing. 2 Under emergency mode Press and hold for 1 seconds to exit emergency discharge. (Easy to test in factory, no need to unplug and plug battery on the PCB board) 3 Under Self-testing Press and hold for 1 seconds to exit emergency discharge.
