- Page 1 PREMIUM HEAT & HOT WATER SYSTEM USER MANUAL | 2021-2022...
-
Page 2: Operation Summary

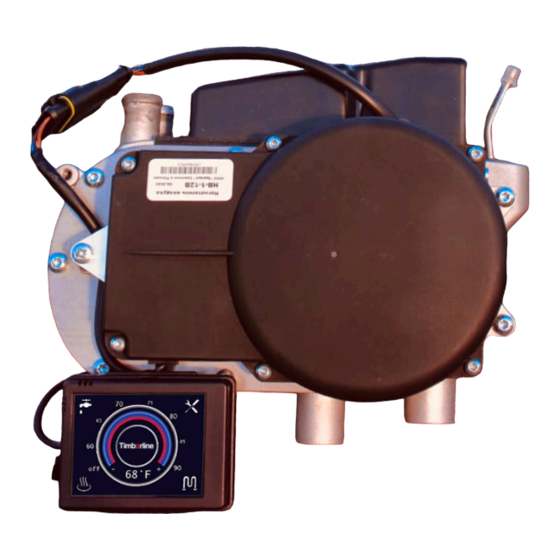

OPERATION SUMMARY Timberline heat and hot water is generated by the Autoterm Binar Compact, a powerful but quiet diesel or gasoline heating unit made for the most adverse conditions. A heated glycol solution is circulated through the interior of the living space through quiet air handlers that provide soft radiant heat. -
Page 3: How To Use The System
68°F Timerline Touch Screen HOW TO USE THE SYSTEM The best way to use the Timberline system is to enable the burner , the electrical element , and the hot water icon . The Timber- line system will self manage, prioritizing the element if the coach is plugged in and only using the diesel/gas burner as needed. -
Page 4: Icon Descriptions
ICON DESCRIPTIONS Hot Water When the Hot Water icon is selected the system will cycle and maintain the hot water heat exchanger so hot water is available on demand. Note: In order for hot water to be maintained, either the burner or the electric element icons must be selected (or both). - Page 5 Solenoid: Indicates if the heating loop solenoid is activated. Clock Fuel Pump: Indicates if the Fuel pump for the Timberline heater is Selecting Show clock in sleep activated. will display a clock when the screen goes into sleep mode. Select Set Element Relay: Indicates if the up Time to set the clock.
- Page 6 ICON DESCRIPTIONS Settings Fan speed & Limitation of coolant pump heating duration Fan auto mode Domestic water Fan manual mode Fan power System ∞ Pump override (10 min) Fan speed and Coolant Pump Limitation of Heating duration When Fan auto mode is select- Domestic water bar allows you ed the fans will regulate air flow to choose a length of time the...
-
Page 7: Maintenance
The fan unit does not require annual maintenance. • Furnace The Timberline system is equipped with the efficient Autoterm Binar • Compact Diesel or Gasoline burner. This burner is designed for opti- mal use in all climates including high altitude up to 10000 feet. There is limited required maintenance for the Autoterm burner. - Page 8 TIMBERLINE WARRANTY STATEMENT Elwell Corp warrants to the original owner and subject to the below mentioned conditions, that the Timberline system will be free of defects in material or workmanship for a period of two years (unless otherwise specified) from the original date of purchase.
