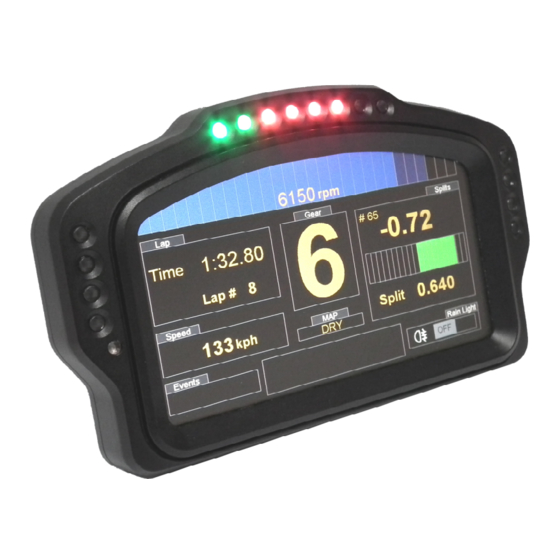

Cosworth's Omega ICD is a widescreen TFT colour
display coupled with a fully featured data logger in a
single attractive aluminium housing.
Using a widescreen 6.2" TFT, coupled with
dedicated graphic processors, multiple fast and
feature rich pages of information can be displayed
to a variety of different users. Super bright tri-colour
shift and alarm LED's complement the display to
provide a compelling display of data.
Configured using Pi Toolset PC software all the
leading data logging features are included –
powerful on-board Pi maths, GPS or Pi infra-red
beacons, GPS or digital speeds, qualifying mode,
alarms, overlays, info messages, zeroing etc - are
all possible and configurable by the user.
Data is analysed with Pi Toolbox PC software – an
industry
standard
analysis
features.
Electrical Data
Operating voltage
Current Consumption
6.2" (16:9) TFT 800 x 480
Display
Viewing angle 75° Hor / 70°Vert
1GB memory / 1kHz max logging rate
Logging
50KB/s total logging bandwidth
4 x high freq (10kHz) inputs suitable
for hall effect/VRS/DF11i sensors
1 x high freq (10kHz) suitable
Digital
for hall effect / VRS sensors
Inputs
Analogue
(4 with configurable 330 resistors)
Inputs
(2 with configurable 10k resistors)
4 x Independent CAN ports
CAN
Max BAUD rate: 1MBit/s
Ports
64 message buffers per port
Software selectable 120 resistor
Serial
3 x bi-directional RS232 ports
Ports
Max BAUD rate: 115200
Document No. 29D-032953-P
Rev. 4E
tool
packed
with
6.5 to 35V
570mA @ 12V
Contrast Ratio 600:1
2
Luminance 400cd/m
hard antiglare coating
1 x Lap beacon
10 x switch inputs
20 x Analogue inputs
www.cosworth.com
Designed to be a central part of a vehicle system,
with an Ethernet hub built in, 12V or 24V systems,
programmable excitations, 4 CAN ports, LIN and
serial ports, 20 analogue channels, 16 digitals there
is
plenty
of
input
and
Electrical Data
Ethernet
Shift/Alarm LEDs
1 x LIN Bus Master – for custom
LIN Bus
Battery Voltage Monitoring
Internal
Sensors
Tri-axis accelerometer 5G
Mechanical Data
Size excluding connectors
Weight
Environmental
Operating Temperature
Storage Temperature
Construction
6082-T6 Aluminium Anodized
Vibration
Part Number
Omega ICD
output
capability.
1 x 100MB/s PC Setup
1 x 100MB/s Expansion
16 x RGB LEDs
applications
Internal Temperature
190 x 116 x 40 mm
640 grams
IP65
o
o
-20
C to +55
C
o
o
-30
C to +80
C
Cosworth DV-V(c)
01D-032953
Page 1 of 7
