- Page 1 INSTRUCTION MANUAL Wireless Level Indicator MODEL S207E www.aquatel.co.nz Aquatel NZ Ltd P.O.Box 225, Orewa 0943 North Auckland, New Zealand...
- Page 2 External Power Jack 6V DC • 4 x AA Alkaline batteries (supplied) • 92mm W x 73mm D x 50mm H ” W x 2 ” D x 2” H) • PCB Loop Antenna Display Unit • Temperature range : -10 to +6 0°C (14 to 140°F) •...
-
Page 3: Main Features And Benefits

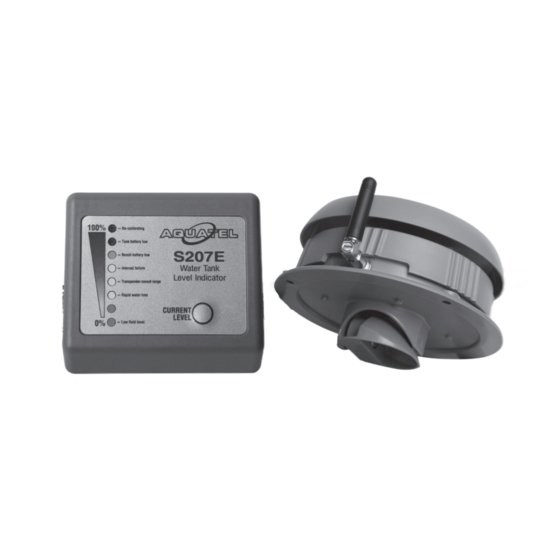

The S207E is a wireless tank level indicator for use on fluid tanks, in septic systems or on other tanks and cisterns that contain non-flammable liquids. The Tank Unit is mounted on the top surface of the tank or cistern and uses ultrasonic signals to detect the liquid level inside. - Page 4 Install Tank Unit Choose location for Tank Unit on the top of the tank or cistern. " Ideal. Unit in centre Incorrect. Mount unit Correct. For buried tanks of tank away from ribbed mount unit in centre of lid, walls to prevent signal or on bracket mounted in reflection off walls riser...
- Page 5 Unit out of test mode. (Leaving the unit in 2000 3600 test mode will drain the batteries quicker). 6'-7" 11'-10" In order for the S207E to determine whether 2100 3700 the tank is half full or almost empty, the 6'-11" 12'-2"...
-
Page 6: Display Unit Set Up
Display Unit Set Up Insert batteries into the base of the Display Unit. Note: Display Unit can alternatively Power Jack 6 Volts DC be powered by a 6V DC supply 300mA or higher Centre pin positive 2.5mm The top light will flash as the Display Unit calibrates and looks for the Tank Unit. -
Page 7: Testing Range
(Trees will reduce range, especially when wet or covered in snow) Remote mount Tank Unit antenna in a better location using a 2.4m (8 foot) extension cable. Aquatel Part: AQC4A. A higher location is better as the ground absorbs the signal Replace Tank Unit antenna with a high gain directional antenna. - Page 8 (This warranty is subject to the provisions of the Trade Practices Act and Goods and Consumer Protection Legislation of various States and Countries) 1. Aquatel NZ Ltd warrants this product will operate as designed for a period of 12 months from date of purchase from an authorized Aquatel re-seller. Subject to the conditions that follow, Aquatel NZ Ltd will repair or replace any defective products free of charge upon return of the faulty product to the authorized Aquatel re-seller.
